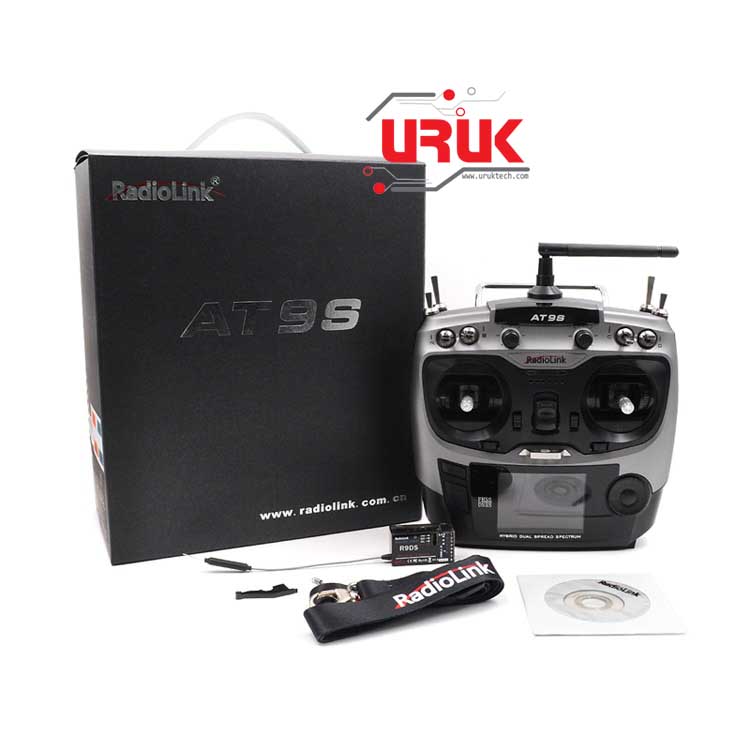

10 Channels RadioLink AT9S Remote Control Transmitter and Receiver

Availability:

In stock


Compare

راديو ريموت كونترول ماركة Radiolink خاص للطائرات والروبوتات المسيرة بـ 10 قنوات اتصال، بمدة جوي يصل الى 1500 متر، يحتوي على شاشة ملونة رائعة لعرض بيانات الطائرات في حال استخدام التيليمتري، يباع مع جهاز استلام 9 قنوات. جميع الخصائص والمزاية قابلة للبرمجة والتغيير مع امكانية عمله مع الكثير من اجهزة الاستلام وهو مناسب لكافة انواع الطائرات ذات الجناح الثابت او المتحرك الدرون والهليكوبتر.

239,000 ع.د

In stock

10 Channels RadioLink AT9S Remote Control Transmitter and Receiver

It’s hard to believe that you can get a quality full featured 10 CHANNEL system with color screen and a fantastic array of features with a great build quality and proven reliability for under £140 but you can – and here it is – the superb AT9S from Radiolink!
The AT9S is a full 10 CHANNEL system that comes complete with a R9DS 9ch Receiver and is extremely versatile with programming for fixed wing, helicopters, multi rotors, boats and cars with great telemetry support and is a radio you can grow with without breaking the bank.

Transmitter Features:
– Programmable mix control, the most full types and functions
– Humanized switch positioning, Navigation Menu, PROGRAMMABLE MIX CONTROL,
– Green and low consumption: 90mA operating current, MULTIPLE ALARM PROMPT
– AT9S First transmitter with DSSS and FHSS Spread Spectrum
– Support SBUS, PPM, and PWM, 3ms quick response
– Multilanguage, Data telemetry, Low RSSI alarm setting
– Control distance: 900 Meters ground 1500 Meters air

AT9S Transmitter Specifications:
– Frequency: 2.4GHz ISM band (2400MHz to 2483.5MHz).
– Modulation mode: QPSK
– Channel bandwidth: 5.0 MHz & 250Kbps
– Spread spectrum: DSSS; FHSS
– Adjacent channel rejection: >38dbm
– Transmitter power: <100mW (20dbm)
– Operating current: <90mA 12V
– Operating voltage: 7.4 ~ 18.0V
– Control distance: more than 900 meters ground, 1500 meters air, the actual control distance depends on the flying environment
– Channel: 10 channels, 5-10 channels are customized
– Compatible model: include all 120 degree and 90 degree swash-plate helicopter, all fix wings, glider and multi-rotor.
– Simulator mode: under the simulator mode the transmitter action turn off, change to power saving mode.
– Screen: 2.8 inches 16 colorful screen, 240×320 pixels
– Support receivers: sells with R9DS (SBUS; PWM); Also support R10DS (SBUS PWM) and R6DS (SBUS; PPM; PWM).
Size: AT9S- 183x 100x193mm.
– Weight: 0.88kg.

R9DS Receiver Features:
– DSSS technique, super anti-interference.
– RX voltage and signal strength telemetry, extensional sensor for EP, Temperature, RPM, GPS etc.
– S.BUS. CH9 is set for S.BUS.
– All 9channel needs 3ms to response parallel.
– Section precision 4096, stable the servo, rudder shaking free.
– HV input up to 10V.
– MINI design for convenient assembling and operating.

R9DS Receiver Specifications:
– Channel: 9channel, CH9 is for S.BUS
– Max input voltage: 10V
– Current: 38-45 mA (Voltage input: 5V)
– Size: 43x24x15mm

Download Manual:
https://www.airtekhobbies.com/downloads/at9s.pdf

Package Includes:
1 x Radiolink AT9S Transmitter
1 x R9DS Receiver

SKU: 421 Categories: , ,

AT9S Transmitter Specifications:

  • Frequency: 2.4GHz ISM band (2400MHz to 2483.5MHz).
  • Modulation mode: QPSK
  • Channel bandwidth: 5.0 MHz & 250Kbps
  • Spread spectrum: DSSS; FHSS
  • Adjacent channel rejection: >38dbm
  • Transmitter power: <100mW (20dbm)
  • Operating current: <90mA 12V
  • Operating voltage: 7.4 ~ 18.0V
  • Control distance: more than 900 meters ground, 1500 meters air, the actual control distance depends on the flying environment
  • Channel: 10 channels, 5-10 channels are customized
  • Compatible model: include all 120 degree and 90 degree swash-plate helicopter, all fix wings, glider and multi-rotor.
  • Simulator mode: under the simulator mode the transmitter action turn off, change to power saving mode.
  • Screen: 2.8 inches 16 colorful screen, 240×320 pixels
  • Support receivers: sells with R9DS (SBUS; PWM); Also support R10DS (SBUS PWM) and R6DS (SBUS; PPM; PWM).
  • Size: AT9S- 183x 100x193mm.
  • Weight: 0.88kg.

R9DS Receiver Specifications:

  • Channel: 9channel, CH9 is for S.BUS
  • Max input voltage: 10V
  • Current: 38-45 mA (Voltage input: 5V)
  • Size: 43x24x15mm
