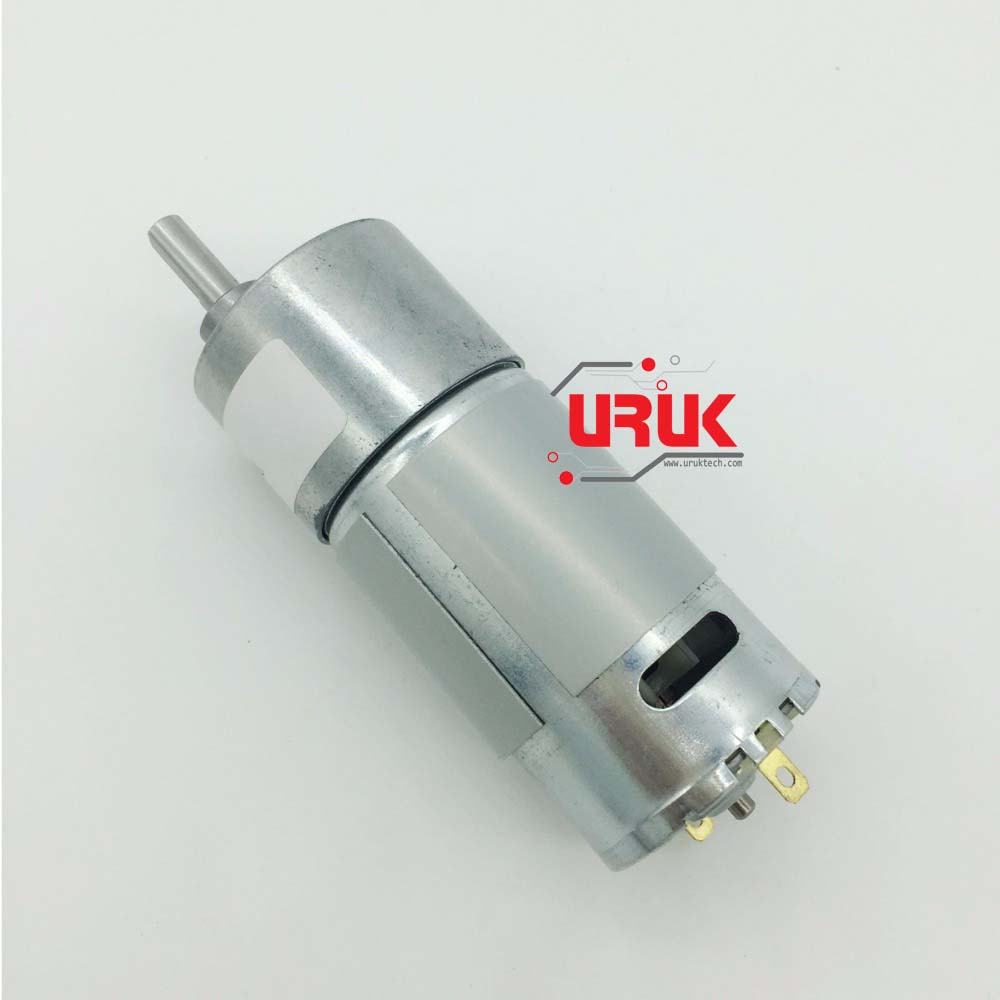

12V DC Gear Motor 4.5 kg.cm Torque 160 rpm with Motor D Shaft

Availability:

In stock


Compare

ماطور عالي العزم يعمل بفولتية مقدارها 12V وتيار قدره 2.5A ويمكن تغيير السرعة من 6V الى 18V لتغيير السرعة، حيث ان سرعته في حالة عدم وجود حمل هي 160 rpm ومقدار العزم الذي يمكن ان يديره هو 4.5 kg.cm. الماطور هو من اقوى انواع الماطورات التي تناسب اكثر مشاريع السيارات والأجسام المتحركة وبعزوم عالية جدا.

21,500 ع.د

In stock

12V DC Gear Motor 4.5 kg.cm Torque 160 rpm with Motor D Shaft

This is high torque motor, need high current (6A) to start, and will return to normal 1A after starting, so you need a high power supply. 12V is above 10A preferably. Otherwise, the motor will not start!

Specifications:
– Reduction Ratio: 1:90
– Voltage Range: 6-18V
– Rated Voltage: 12V
– No Load Current: less than 1A
– Rated Load Current: less than 2.5A
– Stall Current: 6A
– No Load Speed: 160 rpm
– Rated Load Speed: 130 rpm
– Rated Load Torque: 4.5 kg.cm
– Stall Torque: 30 kg.cm
– Length of Gearbox: 24 mm

Attention:
1) Motor support reversed running and has more noise when reversed running than normal running. This is a normal phenomenon.
2) If you connect the voltage less than the rated voltage, the rated torque will be reduced.

Package Includes:
1 x 12V DC Gear Motor

SKU: 138 Category:
Voltage

  • Reduction Ratio: 1:90
  • Voltage Range: 6-18V
  • Rated Voltage: 12V
  • No Load Current: less than 1A
  • Rated Load Current: less than 2.5A
  • Stall Current: 6A
  • No Load Speed: 160 rpm
  • Rated Load Speed: 130 rpm
  • Rated Load Torque: 4.5 kg.cm
  • Stall Torque: 30 kg.cm
  • Length of Gearbox: 24 mm
