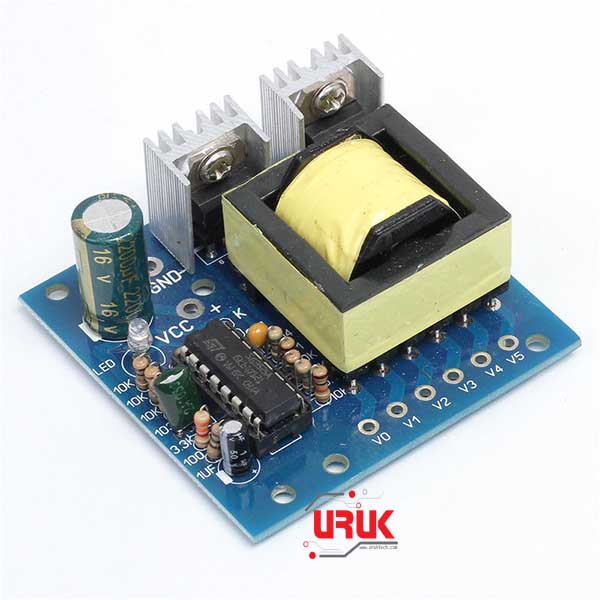

150W Power Inverter DC12V to AC 20-220V Boost Board

Availability:

In stock


بورد انفيرتر بقدرة 150 واط، لتحويل الفولتية من 12 فولت DC الى فولتية AC  بعدة قيم تبدأ من 20 الى 220 فولت حسب الرغبة. البورد يستخدم للتطبيقات البسيطة التي تحتاج الى فولتية AC وليس لتطبيقات تشغيل المحركات او التطبيقات التي تحتاج الى اشارة AC مثالية.

17,000 ع.د

In stock

150W Power Inverter DC12V to AC 20-220V Boost Board

Specifications:
Power: 150W
Input: DC 12V
Output: AC 20-220V (as photo shows)
No-Load Current: 0.05A around
Output waveform: frequency square wave
Output frequency: 20 KHz around
Protection: no protection
Size: 5.8 x 5.8 cm

Notes:
– The board is a high frequency square wave AC output is generally inductive electrical tape cannot “mortars, fen coil transformer etc. ‘
– Take a small load (LED lights phone charger DVD set—top box, etc.) connected to the output voltage of the recommendations, such as a low gear: 172V or 200V
– At Load large work long hours (≥100W) is recommended to increase the heat sink,
– Power cannot be reversed.
– Do not overload Do not short circuit output.

The default output voltage wiring as follows:
V0 – V2 = 110V
V0 – V3 = 175V
V0 – V4 = 200V
V0 – V5 = 220V
V5 – V4 = 20V
V5 – V3 = 45V
V5 – V2 = 110V
V4 – V3 = 28V
V4 – V2 = 90V
V3 – V2 = 62V

Package Includes:
1x 150W Inverter Boost Circuit Board

SKU: 271 Categories: ,
  • Power: 150W
  • Input: DC 12V
  • Output: AC 20-220V (as photo shows)
  • No-Load Current: 0.05A around
  • Output waveform: frequency square wave
  • Output frequency: 20 KHz around
  • Protection: no protection
  • Size: 5.8 x 5.8 cm
