DC 1800W Step up Booster 35-40A Module 10-84V

Availability:

In stock


بقدرة 1800 واط، مودل DC رافع للفولتية يمكن من خلاله تحويل الفولتية الداخلة والتي ممكن ان تكون ضمن 10 الى60 فولت ورفعها الى فولتية تصل الى 97 فولت وتيار ادخال يصل الى 40 امبير. يتميز هذا المودل الرافع بكفاءة عالية تصل الى 98.1% ودوائر حماية متكاملة في حال سحب تيار أكثر من المسموح او ادخال فولتية قليلة او ربط الحمل بشكل معاكس. يتميز ايضاً بوجود مقاومة متغيرة لتغيير الفولتية الخارجة متعددة الدورات لتوفر طريقة دقيقة جداً لتحديد الفولتية الخارجة وبكل سهولة مع مشتت حرارة كبيرة يغطي المودل بأكمله ومروحة تبريد لجعله يعمل لوقت طويل بدون مشاكل حرارة.

35,000 ع.د

In stock

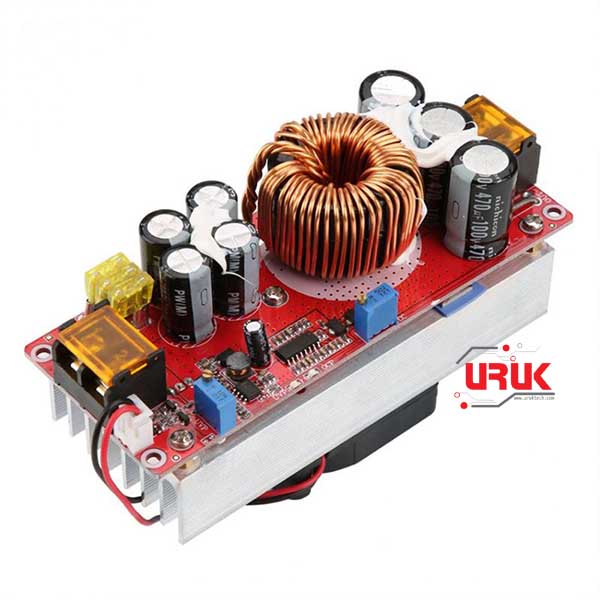

DC 1800W Step up Booster 35-40A Module 10-84V

In this module, with the airfoil radiator fins, the heat dissipation effect is very good, and the output power is larger (the power can be up to 1800W when 48V input and fan are added). The module is combined with the hydraulic bearing fan, the temperature-controlled fan achieves a very good balance between noise and heat dissipation. When the load is light, the fan does not rotate, and the fan automatically turns on after the load weight reaches 60 degrees, which can effectively reduce noise and extend life.

Features:

  • The insulation board of the main power tube is made of high-grade alumina, and the thermal conductivity is 10 times that of ordinary insulation pads.
  • Adopting 100V 210A TO-247 power tube, it has large power margin and good dynamic response.
  • Double large size iron-silicon-aluminum ring, wired by four 1.2 brass lines, featuring low heat and high efficiency.
  • The design has a conversion efficiency of up to 98.1% (See the data sheet efficiency conversion curve below for details).
  • The 3296W multi-turn potentiometer has high adjustment precision and small drift.
  • The output current of the constantan copper wire is sampled, and the constant current is stable and the temperature is small.
  • The undervoltage protection is adjustable, which can effectively protect various batteries and can also be used for solar cells.
  • With constant current function, it can be used for battery car boost, battery charging and so on.
  • With three 20A fuses in parallel to protect against the risks of an unexpected short circuit on the output.
  • Three indicators: undervoltage, overcurrent, power indication, you can get the working status immediately.
  • Both input and output use high frequency capacitors, low output ripple, low heat generation and long life.
  • The input and output have newly added MLCC ceramic capacitors, and the output ripple is significantly reduced. It is about 100 millivolts at 48V to 72V 4A.
  • It is designed for lead-acid batteries, lithium batteries, solar cells or power supply boosting for electric vehicle.

Specification:
Material: Fiber Glass Board, Electronic Component
Size: 13 x 5.1cm
Output Power: Max. 1800W
Input Voltage Range: 10-60V; Typ: 48V
Output Voltage: 13-97V; Typ: 84V
Input Current Range: 35-40A
Output Current: 22A
Dynamic Response Speed: 300us (Load current changes by 5%)
Conversion Efficiency: 48V-60V: 8A, 98.1%; 48V-72V: 8A, 98.1%; 48V-84V: 8A, 97.6%
Load Regulation Rate: 0.3-0.5%;
Working condition: 10% to 50% load (72V output)
Temperature Drift Coefficient: 0.1%/°;
Working condition: 50% load
Output Ripple: 100 mVp-p;
Working condition: 20MHz bandwidth (48V-72V 4A)
Operating Frequency: 100 KHz;
Working condition: VIN=48V, VO=72V 4A
No-load Current: 18mA;
Best Working condition: VIN=48V, VO=72V
Protection: Output short circuit protection, Anti-reverse connection protection

Package Includes:
1 x DC 1800W Step up Booster

SKU: 617 Categories: ,
  • Material: Fiber Glass Board, Electronic Component
  • Size: 13 x 5.1cm
  • Output Power: Max. 1800W
  • Input Voltage Range: 10-60V; Typ: 48V
  • Output Voltage: 13-97V; Typ: 84V
  • Input Current Range: 35-40A
  • Output Current: 22A
  • Dynamic Response Speed: 300us (Load current changes by 5%)
  • Conversion Efficiency: 48V-60V: 8A, 98.1%; 48V-72V: 8A, 98.1%; 48V-84V: 8A, 97.6%
  • Load Regulation Rate: 0.3-0.5%;
  • Working condition: 10% to 50% load (72V output)
  • Temperature Drift Coefficient: 0.1%/°;
  • Working condition: 50% load
  • Output Ripple: 100 mVp-p;
  • Working condition: 20MHz bandwidth (48V-72V 4A)
  • Operating Frequency: 100 KHz;
  • Working condition: VIN=48V, VO=72V 4A
  • No-load Current: 18mA;
  • Best Working condition: VIN=48V, VO=72V
  • Protection: Output short circuit protection, Anti-reverse connection protection
