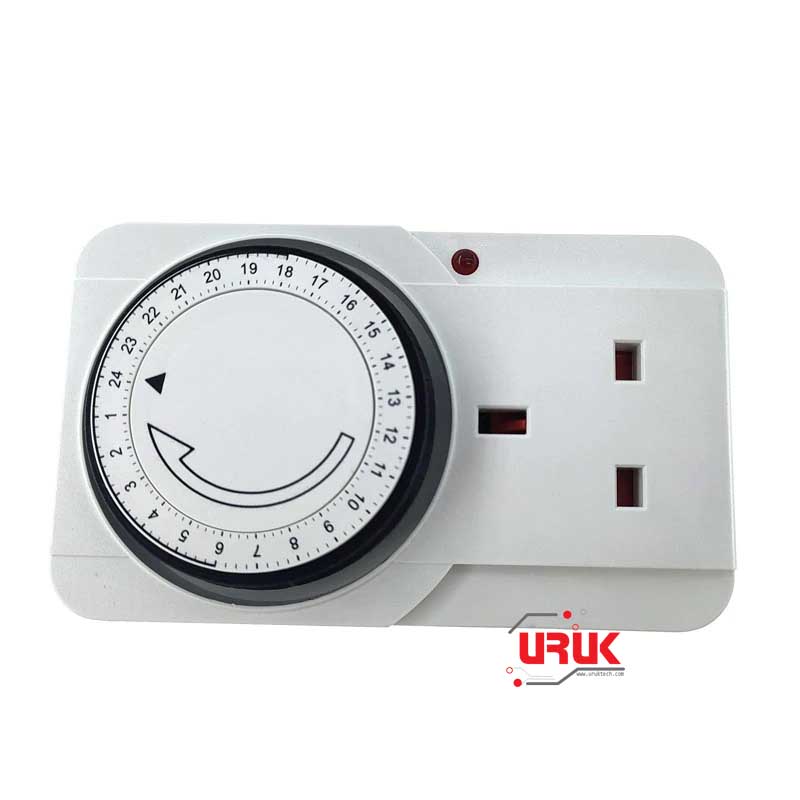

24 Hour 3500W Timer Programmable Switch Socket Timer 230VAC 16A
Used to control the time required to open and related appliances, such as: water dispenser, water heaters, air conditioners, rice cookers, advertising lighting. Also, it is used to control the power length, Such as: electric bicycle battery, cell phone batteries, battery charging
Off the electricity needs frequent occasions. Flower pigsty, lawn sprinkler intermittent, periodic aeration tank filter, water fountains, and home security system control
Plug Type: UK
Voltage: 220-240V (50Hz)
Dimensions: Approx. 120 x 70mm
Minimum Setting: 15 minutes
Total Settings: 48 Sets Program
How to set the timer:
1) Ensure Timer is disconnected from mains.
2) Push one pin inward and in line with each time of day want to stay on the outside of the dial. Each pin is 15 minutes of on time. A red light will be on when the timer is switched on.
3) Turn the timer dial clockwise until the black arrow pointer at top dial faces the current time. then set red timer mode switch on side of timer to automatic mode (clock symbol)
4) Plug your appliance into the timer and then the timer into a power outlet.
5.The appliance can be manually turned on with red timer mode switch the “I” (UP) position
6) For indoor use only.
1 x Timer programmable Switch Plug
