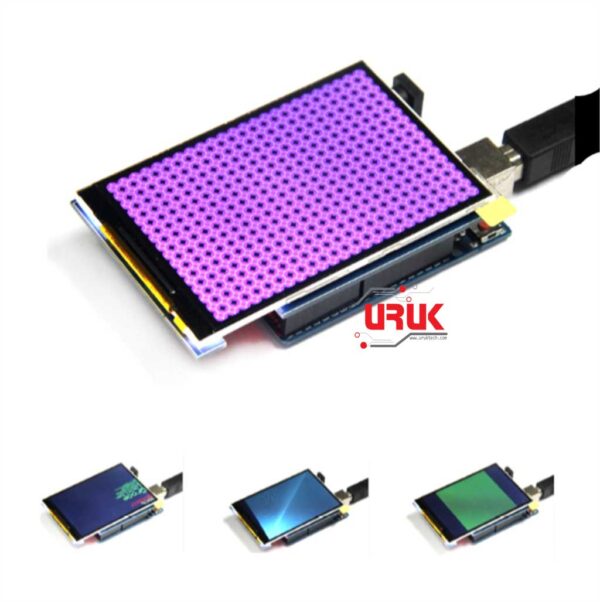

3.5″ Ultra HD Colored TFT LCD Screen for Arduino Boards

Availability:

In stock


شاشة ملونة بحجم 3.5 انج، تعمل مع اغلب بوردات الاردوينو (اونو – ديو – ميغا – ليوناردو – 101 وغيرها لنفس الشكل)، تثبت كـ Shield مع البورد ويتم الاتصال عبر الـ Parallel Bus وبسرعة عالية جدا وتحتوي على منفذ MicroSD لأستخدام ذاكرة مع الاردوينو في المشاريع المستخدمة.

19,750 ع.د

In stock

3.5″ Ultra HD Colored TFT LCD Screen for Arduino Boards

Features:
– Supports development boards such as Arduino Uno, Leonardo, Due, 101, and Mega for plug-in use without wiring
– 480X320 resolution, clear display, support for touch function
– Support 16-bit RGB 65K color display, display rich colors
– Easy to expand the experiment with SD card slot
– Provides an Arduino library with a rich sample program
– Military-grade process standards, long-term stable work
– Provide underlying driver technical support

Specifications:
– Display Color: RGB 65K color
– Screen Size: 3.5 inch
– Type: TFT
– Resolution: 480×320 (Pixel)
– Module Interface: 8-bit parallel interface
– Active Area: 73.44×48.96 mm
– Module PCB Size: 85.49×55.63 mm
– Operating Temperature: -20℃~70℃
– Product Weight: 55g

Package Includes:
1 x Colored TFT LCD Screen 3.5 ” for Arduino Boards

SKU: 149 Category:
  • Display Color: RGB 65K color
  • Screen Size: 3.5 inch
  • Type: TFT
  • Driver IC: ILI9486
  • Resolution: 480×320 (Pixel)
  • Module Interface: 8-bit parallel interface
  • Active Area: 73.44×48.96 mm
  • Module PCB Size: 85.49×55.63 mm
  • Operating Temperature: -20℃~70℃
  • Operating Voltage: 5V/3.3V
  • Product Weight: 55g
