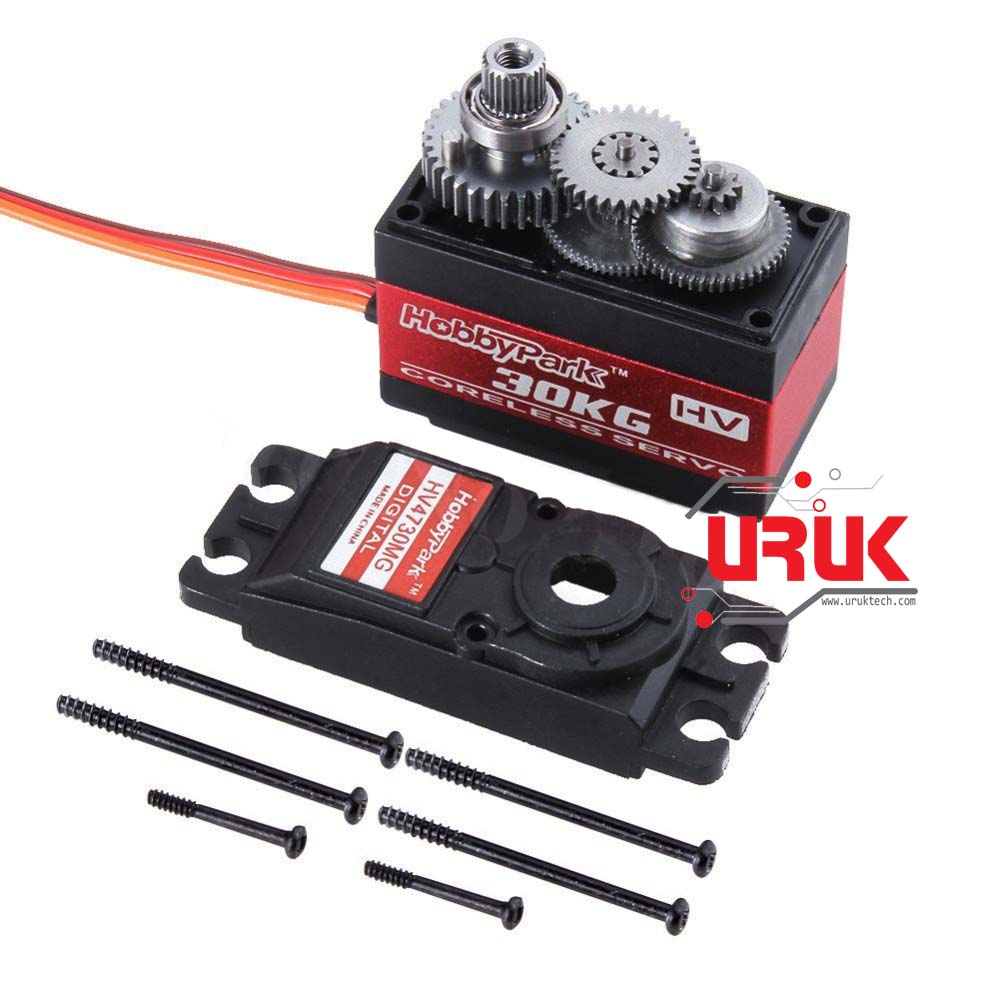

High Torque 30kg HV Coreless Servo Motor (HobbyPark)

Availability:

In stock


Compare

محرك سيرفو ذو عز عالي جدا 30 كغم.سم، يحتوي على مسسنات معدنية قوية مناسبة لأقصى انواع الاحمال وبجودة عاليه جدا يعمل بفولتية 6 الى 8 فولت وبزاوية دوران مقدارها 120 درجة.

79,000 ع.د

In stock

High Torque 30kg HV Coreless Servo Motor (HobbyPark)

Features & Specifications:
– Model No.: HV4730MG
– Net Weight: Approx. 59.3g
– Dimension: Approx. 40.5 x 20.5 x 36.5mm
– Output gear: 25T
– Motor: ​Coreless Motor
– Working frequency: 1520μs / 330 Hz
– Stall torque: 25.2kg/cm (6.0v);  32.3kg/cm(8.4v)
– Operating speed: 0.12 sec/60° (6.0v); 0.10sec/60degree (8.4v)
– Control Angle: 120° degree
– Operating voltage: 6.0-8.4v
– Gear Type: All Metal gears
– Bearing: 2BB (2 ball bearings)
– Temperature range: -10  to 50deg
– Dead band width: 1us
– Servo wire length: 25cm / 9.84inch
– Servo Plug: JR (Fits JR and Futaba)

Connection Pin Out:
Brown – GND;
Red-VCC (6.0-8.4V);
Orange-Signal

Package Includes:
1x Servo Motor 30kg

SKU: 96 Category:
  • Model No.: HV4730MG
  • Net Weight: Approx. 59.3g
  • Dimension: Approx. 40.5 x 20.5 x 36.5mm
  • Output gear: 25T
  • Motor: ​Coreless Motor
  • Working frequency: 1520μs / 330 Hz
  • Stall torque: 25.2kg/cm (6.0v);  32.3kg/cm(8.4v)
  • Operating speed: 0.12 sec/60° (6.0v); 0.10sec/60degree (8.4v)
  • Control Angle: 120° degree
  • Operating voltage: 6.0-8.4v
  • Gear Type: All Metal gears
  • Bearing: 2BB (2 ball bearings)
  • Temperature range: -10  to 50deg
  • Dead band width: 1us
  • Servo wire length: 25cm / 9.84inch
  • Servo Plug: JR (Fits JR and Futaba)
