30V 10A Laboratory Adjustable Power Supply

Availability:

In stock


بور سبلاي مختبري عالي الجودة بفولتية متغيرة 30 فولت وتيار 10 امبير، مناسب لجميع التطبيقات العملية الهندسية والمختبرية ولأغراض الصيانة ومتطلبات التجهيز. يمكن التحكم بفولتية وتيار الخروج بشكل دقيق عبر اداتين للتحكم للفولتية وكذلك للتيار، مع شاشتين رقمية لعرض الفولتية والتيار الحالي. يمتاز بمتانة وجودة عالية حيث يحتوي على دوائر للحماية مثل الحماية من الحرارة العالية داخل الجهاز والحماية من الفولتية العالية والحماية من سحب تيار أكثر من المواصفات الخاصة به.

179,000 د.ع

In stock

30V 10A Laboratory Adjustable Power Supply



Features:

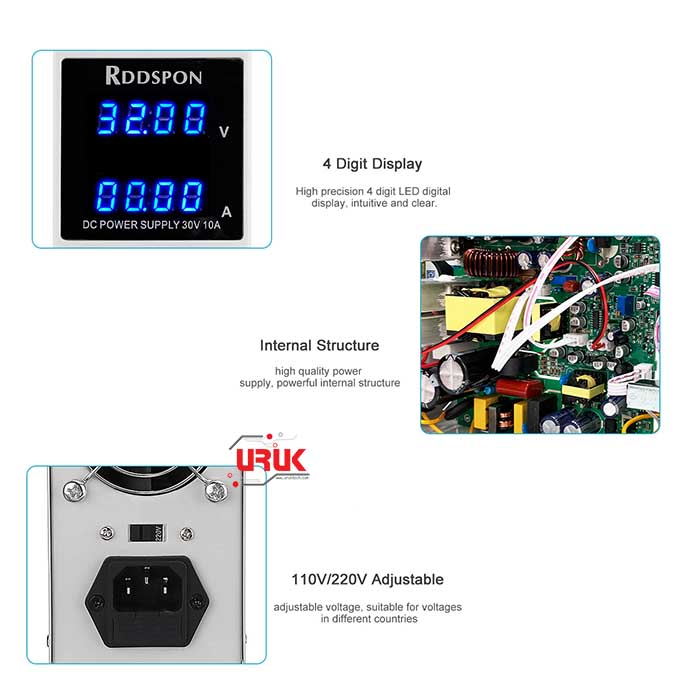

  • High precision 4-digit LED digital display, intuitive and clear.
  • Intelligent fan, excellent heat dissipation, effectively extending fan life and reducing noise.
  • Using advanced technology, it effectively reduces the weight of the power supply and facilitates power supply movement.
  • Multiple protection functions, over current protection (OCP), over temperature protection (OTP), over power protection (OPP).
  • Plastic panel, more beautiful.



Application:

  • Charge the battery.
  • Product aging, such as resistors, capacitors, relays, DC motors, LEDs, etc.
  • Laboratory, factory, maintenance power supply.
  • Everything else needs a DC regulated power supply.



Specifications:
Input voltage: 220V ± 10% @ 50Hz ± 5Hz, 110V ± 10% @ 60Hz ± 5Hz
Display Accuracy: ± 1% ± 1 word (three / three and a half digital display, voltage resolution 0.1V, current resolution 0.1A), ± 0.1% ± 1 word (four / four semi-digital display, voltage resolution 0.01V, current resolution 0.01A)
Boot delay: 1-2S Shutdown Delay: 1-6S (depending on the load)
Output Voltage Range: 0 – 30V
Output Current Range: 0 – 10A
Voltage Stability: ≤0.05% + 1mV
The current stability: ≤0.1% + 10mA
Load stability: CV≤0.05% + 1mV, CC≤0.05% + 10mA
Ripple and Noise: CV≤10mV, CC≤20mA (RMS)
Overall efficiency: ≥80% (under full load test)
Ground Resistance: <20mΩ Voltage Display Accuracy: ±0.5% Current Display Accuracy: ±0.5% Display accuracy: ±0.01 Efficiency: >85%
Dimension: Approx.20x7x15.1cm
Operating Ambient: -10℃ ~ 60℃ / 30%RH~ 90% RH



Package Includes:
1 x Power Supply 30V/10A
1 x Power cable
1 x Alligator clip cable
1 x Test Cable

SKU: 448 Category:
  • Input voltage: 220V ± 10% @ 50Hz ± 5Hz, 110V ± 10% @ 60Hz ± 5Hz
  • Display Accuracy: ± 1% ± 1 word (three / three and a half digital display, voltage resolution 0.1V, current resolution 0.1A), ± 0.1% ± 1 word (four / four semi-digital display, voltage resolution 0.01V, current resolution 0.01A)
  • Boot delay: 1-2S Shutdown Delay: 1-6S (depending on the load)
  • Output Voltage Range: 0 – 30V
  • Output Current Range: 0 – 10A
  • Voltage Stability: ≤0.05% + 1mV
  • The current stability: ≤0.1% + 10mA
  • Load stability: CV≤0.05% + 1mV, CC≤0.05% + 10mA
  • Ripple and Noise: CV≤10mV, CC≤20mA (RMS)
  • Overall efficiency: ≥80% (under full load test)
  • Ground Resistance: <20mΩ Voltage Display Accuracy: ±0.5% Current Display Accuracy: ±0.5% Display accuracy: ±0.01 Efficiency: >85%
  • Dimension: Approx.20x7x15.1cm
  • Operating Ambient: -10℃ ~ 60℃ / 30%RH~ 90% RH
