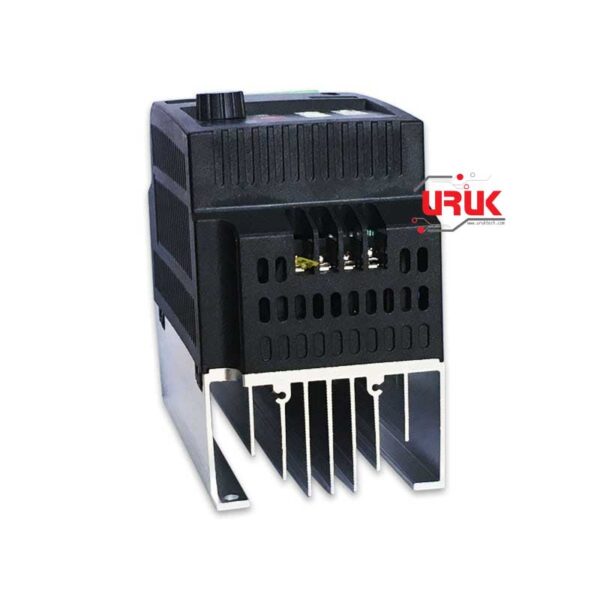

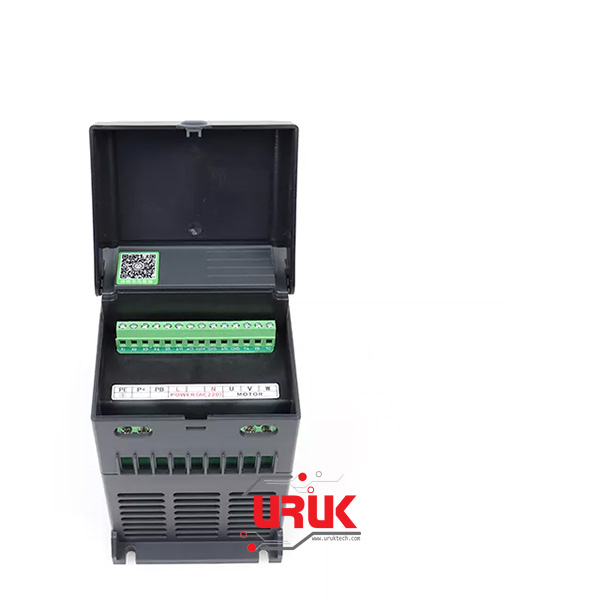

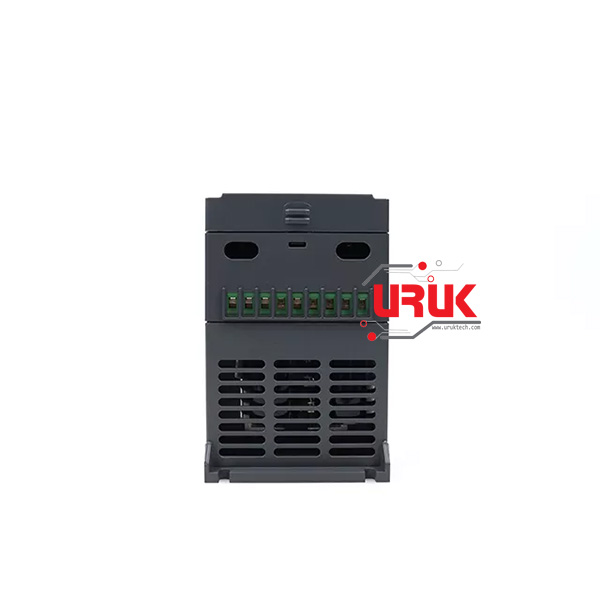

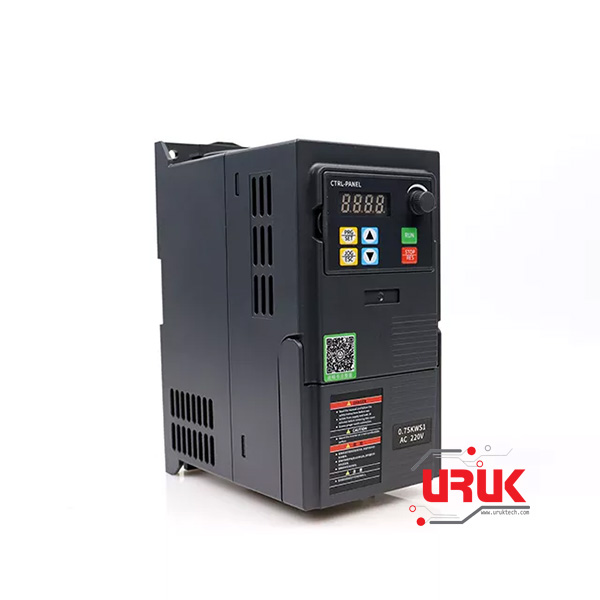

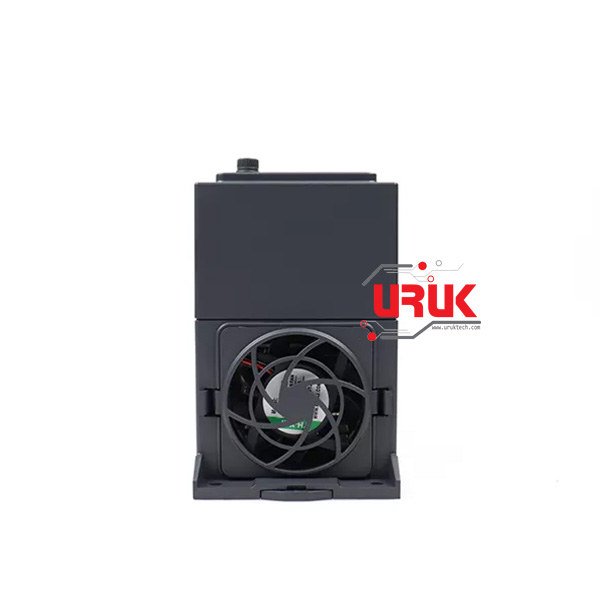

VFD 2.2KW 380V 3-Phase Adjustable Frequency and Voltage Converter

Availability:

In stock


جهاز تحكم بمصدر 3 فيز بقدرة 2.2 كيلو واط، بفولتية وتردد متغير يمكن التحكم بهما كليهما. يسمى هذا الجهاز VFD، اي مسوق التشغيل المتغير التردد يستخدم في الكثير من التطبيقات لكن اهمها التحكم بسرعة ماطورات 3 فيز AC. يمكن استخدامه في عدى تطبيقات التي تحتاج الى التحكم بالـ 3 فيز، حيث انه يستخدم في التطبيقات الصناعية بشكل عام. الجهاز يمتلك العديد من المزايا الرائعة اهما احتوائه على منفذ RS-485 ليكون متكافيء مع الاجهزة الصناعية لغرض الاتصال والتحكم بالاضافة الى عدى مزايا اخرى مثل تحديد مودات تشغيل وتحكم عالي واحتوائيه على تايمر داخلي للتحكم ايضاً والعديد من المزايا الاخرى الموضحة في وصف الجهاز المفصل.

109,000 ع.د

In stock

VFD 2.2KW 380V 3-Phase Adjustable Frequency and Voltage Converter

A Variable Frequency Drive (VFD) is a type of motor controller that drives an electric motor by varying the frequency and voltage supplied to the electric motor. Other names for a VFD are variable speed drive, adjustable speed drive, adjustable frequency drive, AC drive, microdrive, and inverter. We have sophisticated engineers, scientific producing workmanship and management team with rigorous quality control systems, frequency inverter are equipped with advanced features.

Features:

  • V/F control, vector control and output torque control;
  • Built-in RS-485 communication interface
  • Compact size, easy to install;
  • With a speed potentiometer and external panel;
  • Built-in synchronous control and proportional synchronization control;
  • 16 speed control modest, can run automatically;
  • Can choice multiple running commands or frequency channel;
  • Can be achieve Part or all of the keys locked (Analog potentiometer unlock);
  • Relay normally open or closed and two high configuration output have 100 kinds of ways optional;
  • 6 digital opto-isolated inputs, 100 kinds of ways optional;
  • 3 analog input, 1 analog output channel;
  • Having textile pendulum frequency function, It can be widely applications for many kinds of textile equipment;
  • Built-in user timer / counter;
  • Built-in PID regulation function to facilitate the realization of closed loop control of the temperature, pressure and tension.
  • At zero speed time, can be achieve output 0-100% of Adjustable torque, with zero speed brake function, instead foreign inverter application on freight elevator and crane.

Specifications:
– Output Power: 2.2kw
– Rated Frequency: 50Hz / 60Hz
– Output Frequency Range: 0~400Hz
– Output Voltage Range: Three phases (3 phase) 380V±15%
– Output Voltage Range: 3 phase 380V±15%
– Control way: Open loop vector control (SVC), V/F control
– Main function: Control and adjust the speed of the ac motor
– Size: 85mmx125mmx150mm

Package Includes:
1 x VFD Converter 2.2KW 380V

SKU: 420B Categories: , ,
  • Output Power: 2.2kw
  • Rated Frequency: 50Hz / 60Hz
  • Output Frequency Range: 0~400Hz\
  • Output Voltage Range: Three phase (3 phase) 380V±15%
  • Output Voltage Range: 3 phase 380V±15%
  • Control way: Open loop vector control (SVC), V/F control
  • Main function: Control and adjust the speed of the ac motor
  • Size: 85mmx125mmx150mm
