4A TB6600 Stepper Motor Driver Controller 9-42V

Availablity:

In stock


Compare

4A TB6600 Stepper Motor Driver Controller 9-42V TTL 16 Micro-Step CNC 1 Axis 2 or 4 Phase of Stepper Motor 42, 57, 86

19,000 IQD

In stock

4A TB6600 Stepper Motor Driver Controller 9-42V TTL 16 Micro-Step CNC 1 Axis 2 or 4 Phase of Stepper Motor 42, 57, 86

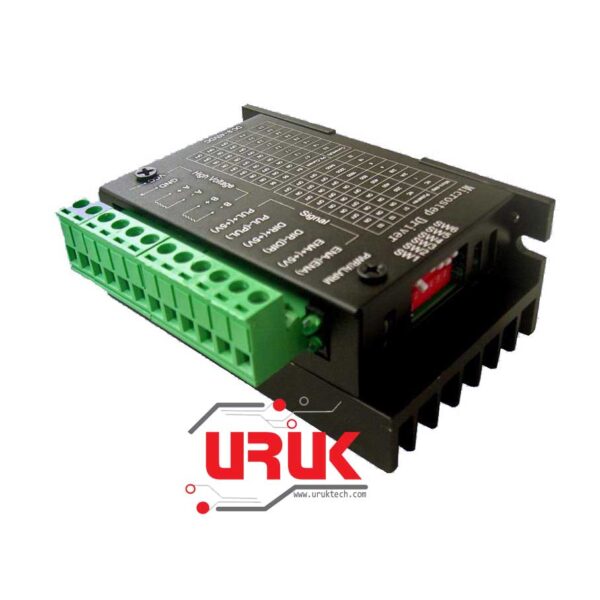

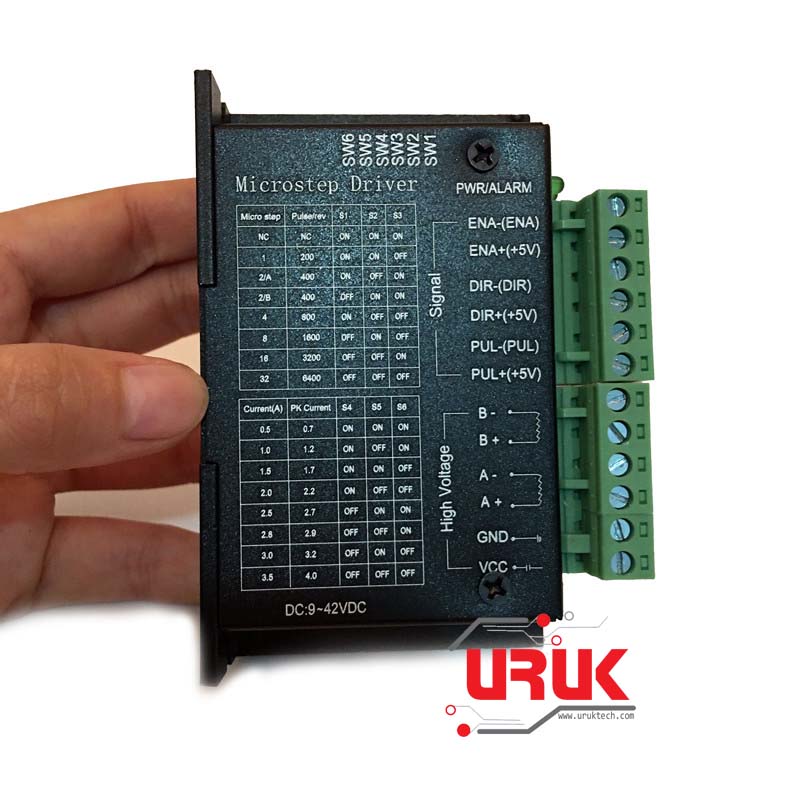

This drive is an upgraded version of TB6600, the highest segments to 32, fit for high subdivision applications. Applicable stepper motor: 42, 57, 86 types 2-phase and 4-phase .

Specifications:
– PWM chopper type bipolar stepper motor driver IC
– 9V-42V DC power supply
– H bridge bipolar constant phase flow drive
– The maximum 4.0A of the eight kinds of output current
– The largest 32 subdivision of the 6 models are optional
– Input signal high speed photoelectric isolation
– Common-anode standard single pulse interface
– Offline to maintain the function
– Semi closed enclosure can be adapted to a more stringent environment
– Provide energy-saving semi-automatic current lock function
– Built-in temperature protection and over current protection.
– Can control 2 phase stepper motor forward and reverse rotation,
– With 1-2, W1-2, 2W1-2, 4W1-2 phase excitation mode.
– Only the clock pulse signal can be driven two-phase bipolar stepper
– motor to achieve low vibration, high efficiency work.

IC Features:
– Single chip bipolar sine microstep stepper motor driver
– The new BiCD 0.13 nm process
– Up to 42V
– Resistance (a +) = 0.4
– The forward and reverse rotation control
– 5 subdivision mode options (1/1, 1/2, 1/4, 1/8, 1/16,1/32)
– Output current: IOUT = 4.0A (peak, in 100ms)
– Rated output: IOUT = 3.5 A
– Package: HZIP25 – 1.00F
– Input port internal pull-down resistor: 100 K
– Alarm output pin current: I alert = 1mA
– Monitoring output pin (MO): Imo= 1mA
– With reset and enable pin
– With standby function
– Break through the traditional, single power supply
– Built in overheating protection (TSD) circuit
– Undervoltage protection, built-in (UVLO) circuit
– Built-in overcurrent detection (ISD), circuit

Package Included:
1 x TB6600 Motor Driver

Specifications

  • PWM chopper type bipolar stepper motor driver IC
  • 9V-42V DC power supply
  • H bridge bipolar constant phase flow drive
  • The maximum 4.0A of the eight kinds of output current
  • The largest 32 subdivision of the 6 models are optional
  • Input signal high speed photoelectric isolation
  • Common-anode standard single pulse interface
  • Offline to maintain the function
  • Semi closed enclosure can be adapted to a more stringent environment
  • Provide energy-saving semi-automatic current lock function
  • Built-in temperature protection and over current protection.
  • Can control 2 phase stepper motor forward and reverse rotation,
  • With 1-2, W1-2, 2W1-2, 4W1-2 phase excitation mode.
  • Only the clock pulse signal can be driven two-phase bipolar stepper
  • motor to achieve low vibration, high efficiency work.

IC Features

  • Single chip bipolar sine microstep stepper motor driver
  • The new BiCD 0.13 nm process
  • Up to 42V
  • Resistance (a +) = 0.4
  • The forward and reverse rotation control
  • 5 subdivision mode options (1/1, 1/2, 1/4, 1/8, 1/16,1/32)
  • Output current: IOUT = 4.0A (peak, in 100ms)
  • Rated output: IOUT = 3.5 A
  • Package: HZIP25 – 1.00F
  • Input port internal pull-down resistor: 100 K
  • Alarm output pin current: I alert = 1mA
  • Monitoring output pin (MO): Imo= 1mA
  • With reset and enable pin
  • With standby function
  • Break through the traditional, single power supply
  • Built in overheating protection (TSD) circuit
  • Undervoltage protection, built-in (UVLO) circuit
  • Built-in overcurrent detection (ISD), circuit
