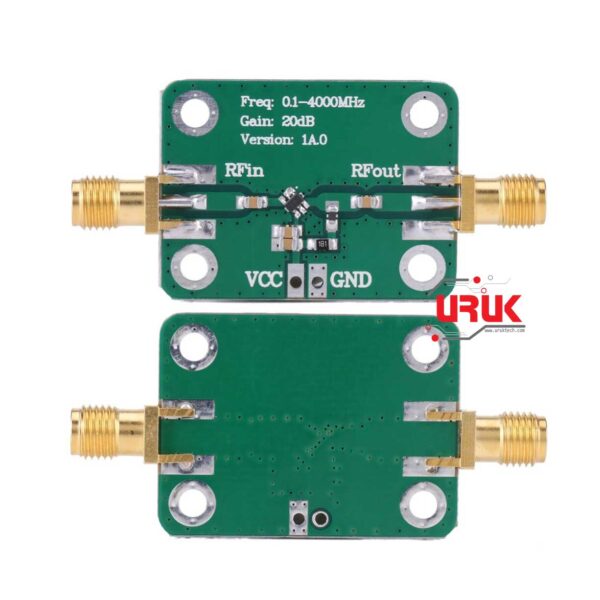

4GHz 20dB RF Amplifier Wide-band Microwave RF Amplifier Module

Availability:

In stock


Compare

ار اف ومايكرويف امبليفاير Microwave RF Amplifier بقدرة تكبير 20dBm ولمدى كبير من الترددات 0.1MHz الى 4000MHz او 4GHz، ممكن ان يستخدم في كافة مجالات الاتصالات والتحكم لتحسين وزيادة مدى الاتصال الى مسافات بعيدة جداً حيث يعمل على فولتية من 3.3V الى 5V.

28,000 ع.د

In stock

4GHz 20dB RF Amplifier Wide-band Microwave RF Amplifier Module

This Microwave RF Amplifier has a wide frequency range of 0.1 – 4000MHz, amplification gain of 20dB, low supply voltage of 3.3 – 5.5VDC. Low noise and high overload amplification circuit! Perfect for amplifying a variety of RF signals.

Features:
– The amplifier has a wide frequency range, stable gain, low supply voltage, and low current consumption.
– Can be used to amplify a variety of RF signals.
– Widely used in FM radio, remote control receiver, cable TV, GPS, Beidou receiver, Wifi Bluetooth receiver circuits, etc.
– Low noise and high overload amplification circuit.
– This is one professional amplifier module with standard SMA female connectors.

Specification:
– Frequency range: 0.1 – 4000MHz
– Supply voltage: 3.3 – 5.5VDC
– Maximum power: +3dBm (3mW) @ 1dB compression point
– Working Current: 14mA (3.3V); 25mA (5.0V)
– System Impedance: 50 ohms
– RF Connector: SMA standard female
– Size: Approx. 5 x 2.5cm / 1.96 x 0.98inch
– Weight: 8g

Amplification Gain:
Typical Gain (5.0V)
F = 70MHz, gain = 22dB
F = 100Mhz, gain = 22dB
F = 200MHz, gain = 22dB
F = 500Mhz, gain = 22dB
F = 900MHz, gain = 22dB
F = 1900MHz, gain = 22dB
F = 2700MHz, gain = 22dB
F = 3000MHz, gain = 21dB
F = 3500MHz, gain = 21dB
F = 3500MHz, gain = 20dB
F = 4000MHz, gain = 19dB

Package Includes:
1 x Microwave RF Amplifier 20dB

SKU: 711 Category:
  • Frequency range: 0.1 – 4000MHz
  • Supply voltage: 3.3 – 5.5VDC
  • Maximum power: +3dBm (3mW) @ 1dB compression point
  • Working Current: 14mA (3.3V); 25mA (5.0V)
  • System Impedance: 50 ohms
  • RF Connector: SMA standard female
  • Size: Approx. 5 x 2.5cm / 1.96 x 0.98inch
  • Weight: 8g
