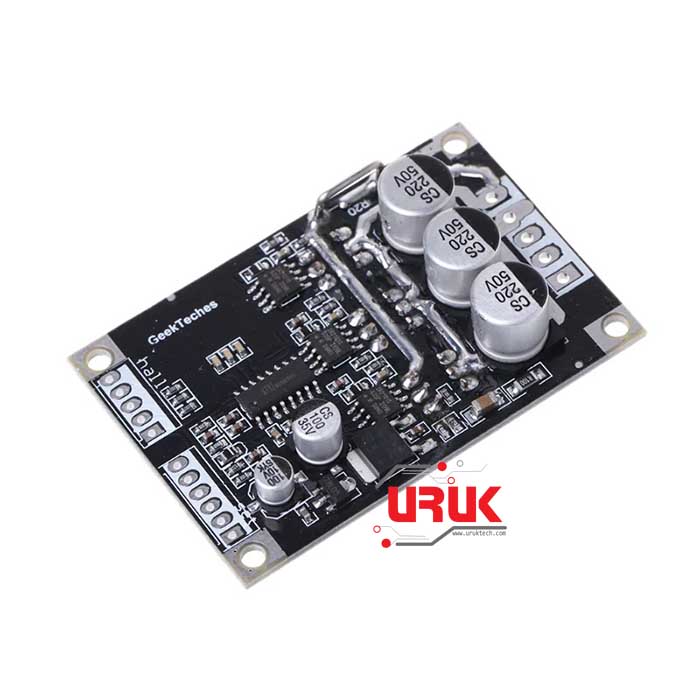

500W DC 12V-36V Brushless DC Motor with Hall Effect Sensors Controller Board

Availability:

In stock


بورد رائع للتحكم بمحركات DC البراشليس Brushless التي تحتوي على حساسات Hall Effect Sensor أي حساسات لحركتها. البورد يمكن من خلاله التحكم بمحركات بقدرة 500 واط او 15 امبير، يحتوي على عدة دوائر للحماية ويمكن ربطه بسهولة، ويحتوي على خواص للتحكم ومعادلة القيادة في حال استخدام محركين لتحريك روبوت. واحدة من اهم تطبيقاته هو التحكم بمحركات السكوتر والمحركات الأخرى الشبيهة.

29,000 ع.د

In stock

500W DC 12V-36V Brushless DC Motor with Hall Effect Sensors Controller Board

Specifications:
Operating voltage: DC 12V-36V
Operating Current: <=15A
Driver Power: <=500W
Speed Voltage: 0.1V-5V
Operating Temperature: -40-85C
Humidity: 90%RH
Stall protection: Yes
Enable Control: Yes
Over-current protection: Yes
Steering control: Yes
Speed control signal: Yes

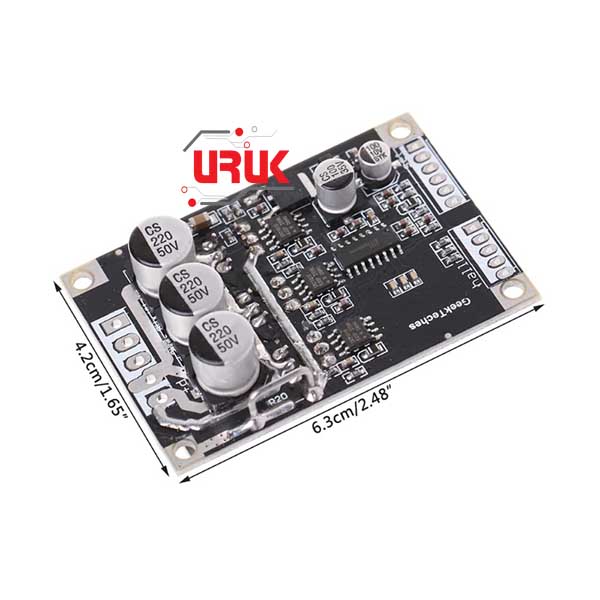

Size: 63x42x17mm (LxWxH)
Probe size: 3 mm
Probe length: fixing hole center distance 57mm
Probe width: fixed hole center distance 36.5mm

Power terminal Out:
– VCC (positive power supply)
– GND (negative one)
– MC (motor phases W)
– MB (motor phases V)
– MA (motor phase U)

Set for the control side:
GND: control terminal ground
VR: the governor end 0-5V (corresponding to 10% of motor speed -100%)
ZF: reversing control (connected to 5V or ground can charge the motor rotation direction)
M: tachometer pulse output (depending on the number of motor poles corresponding to the number of pulses per revolution of the output number)
EL: enable control terminal (connected to 5V or ground running then 5V, grounding the motor stops)
5V: 5V control terminal

HALL for the hall terminals:
5V: Hall power positive
Ha: Hall signal
Hb: Hall signal
Hc: Hall Signal
GND: Hall negative

Wiring of Control terminal for SET:
1. The motor speed control wiring methods: available potentiometer system speed can also be connected to the MCU control, when the potentiometer control wiring, the potentiometer middle pin is connected to VR speed port, potentiometer connected to both ends of 5V and GND terminal voltage more high speed faster
2. Motor steering control wiring methods: you can switch control can also be connected to the MCU control, to GND in one direction, then in one direction 5V
3. Pulse speed signal: high and low output. IC cannot understand the information with the customer request

Wiring of Hall signal inputs for hall:
Wiring diagram is shown, one corresponding to the HA, HB, HC and on the motor, 5V power supply connected to the motor hall signals positive, GND power supply negative signal to the motor hall

Package Includes:
1x Brushless Motor Speed Controller

SKU: 393 Categories: ,
  • Operating voltage: DC 12V-36V
  • Operating Current: <=15A
  • Driver Power: <=500W
  • Speed Voltage: 0.1V-5V
  • Operating Temperature: -40-85C
  • Humidity: 90%RH
  • Stall protection: Yes
  • Enable Control: Yes
  • Over-current protection: Yes
  • Steering control: Yes
  • Speed control signal: Yes
  • Size: 63x42x17mm (LxWxH)
  • Probe size: 3 mm
  • Probe length: fixing hole center distance 57mm
  • Probe width: fixed hole center distance 36.5mm
