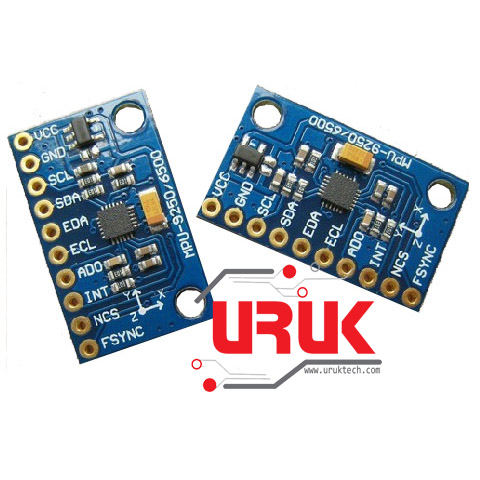

9-Axis Attitude + Gyro + Accelerator + Magnetometer MPU9250 Sensor Module

Availablity:

In stock


Compare

9-Axis Attitude + Gyro + Accelerator + Magnetometer MPU9250 Sensor Module

15,250 IQD

In stock

9-Axis Attitude + Gyro + Accelerator + Magnetometer MPU9250 Sensor Module

Features:
– Chip: MPU9250 (3 axis accelerator, 3 axis gyro and 3 axis magnetometer)
– Power voltage: 3~5V (internal low dropout regulator)
– Chip 16bit AD converter 16 outputs the data
– Communication mode: I2C / SPI;
– Register: 1MHz
– SPI / I2C: 400 KHz
– Gyro range: +/-250, +/-500, +/-1000, +/-2000dps
– Accelerator range: +/-2G, +/-4G, +/-8G, +/-16G
– Magnetometer range: +/-4800uF
– Gyro working current: 3.2mA
– Gyro sleeping current: 8uA
– Accelerator working current: 450uA
– Accelerator sleeping current: 8uA
– Using Immersion Gold PCB, machine welding process to ensure quality
– Pin spacing: 2.54mm
– Size: 15mm x 25mm (approx)

Package Included:
1 x MPU9250 Sensor Module

Voltage

,

  • Chip: MPU9250 (3 axis accelerator, 3 axis gyro and 3 axis magnetometer)
  • Power voltage: 3~5V (internal low dropout regulator)
  • Chip 16bit AD converter 16 outputs the data
  • Communication mode: I2C / SPI;
  • Register: 1MHz
  • SPI / I2C: 400 KHz
  • Gyro range: +/-250, +/-500, +/-1000, +/-2000dps
  • Accelerator range: +/-2G, +/-4G, +/-8G, +/-16G
  • Magnetometer range: +/-4800uF
  • Gyro working current: 3.2mA
  • Gyro sleeping current: 8uA
  • Accelerator working current: 450uA
  • Accelerator sleeping current: 8uA
  • Using Immersion Gold PCB, machine welding process to ensure quality
  • Pin spacing: 2.54mm
  • Size: 15mm x 25mm (approx)
