Adjustable Step-up Boost DC-DC Power Converter Module XL6009

Availablity:

In stock


Compare

Adjustable Step-up Boost DC-DC Power Converter Module XL6009

7,500 IQD

In stock

Adjustable Step-up Boost DC-DC Power Converter Module XL6009

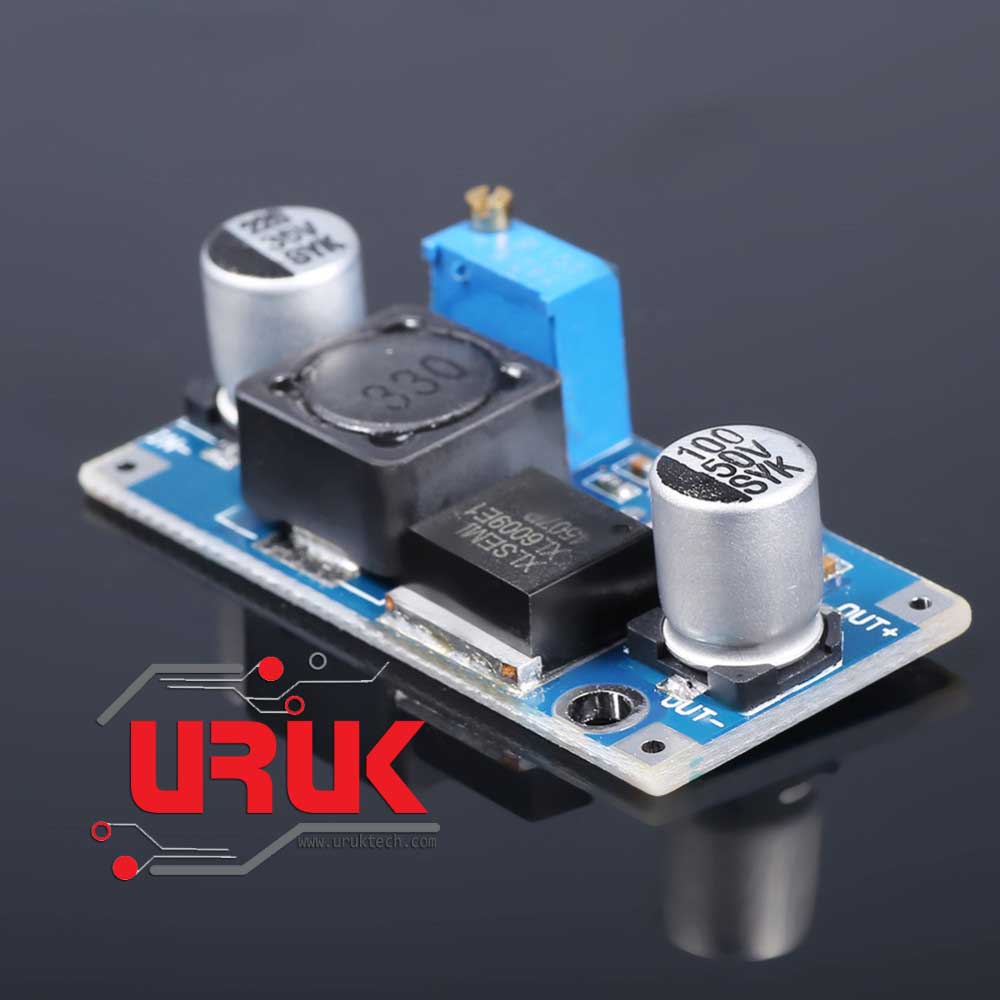

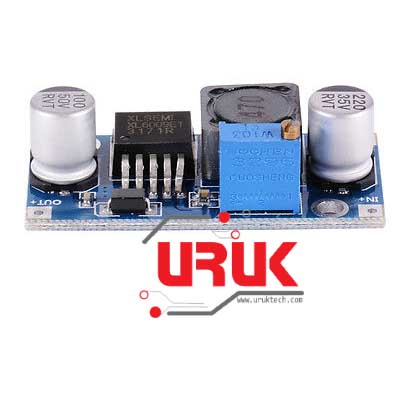

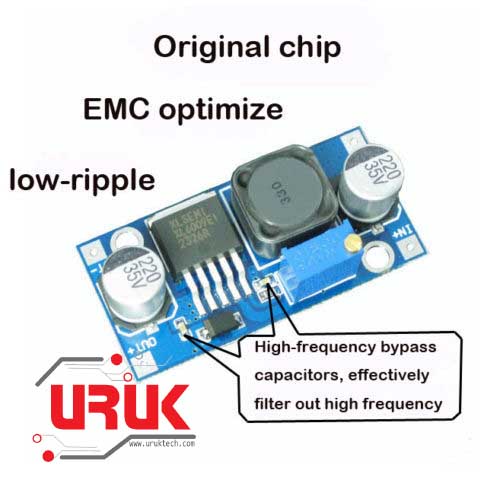

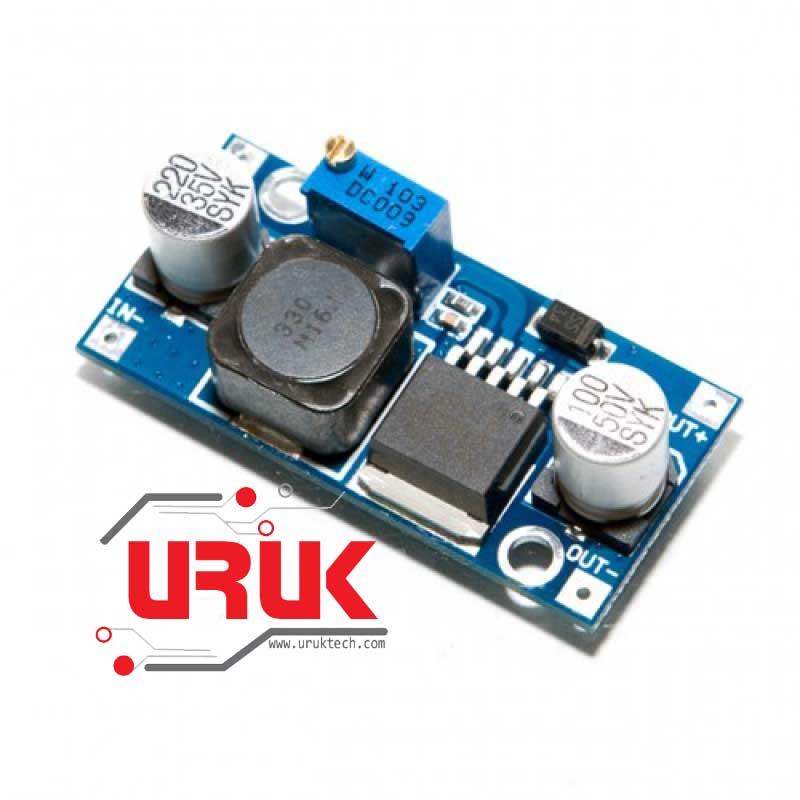

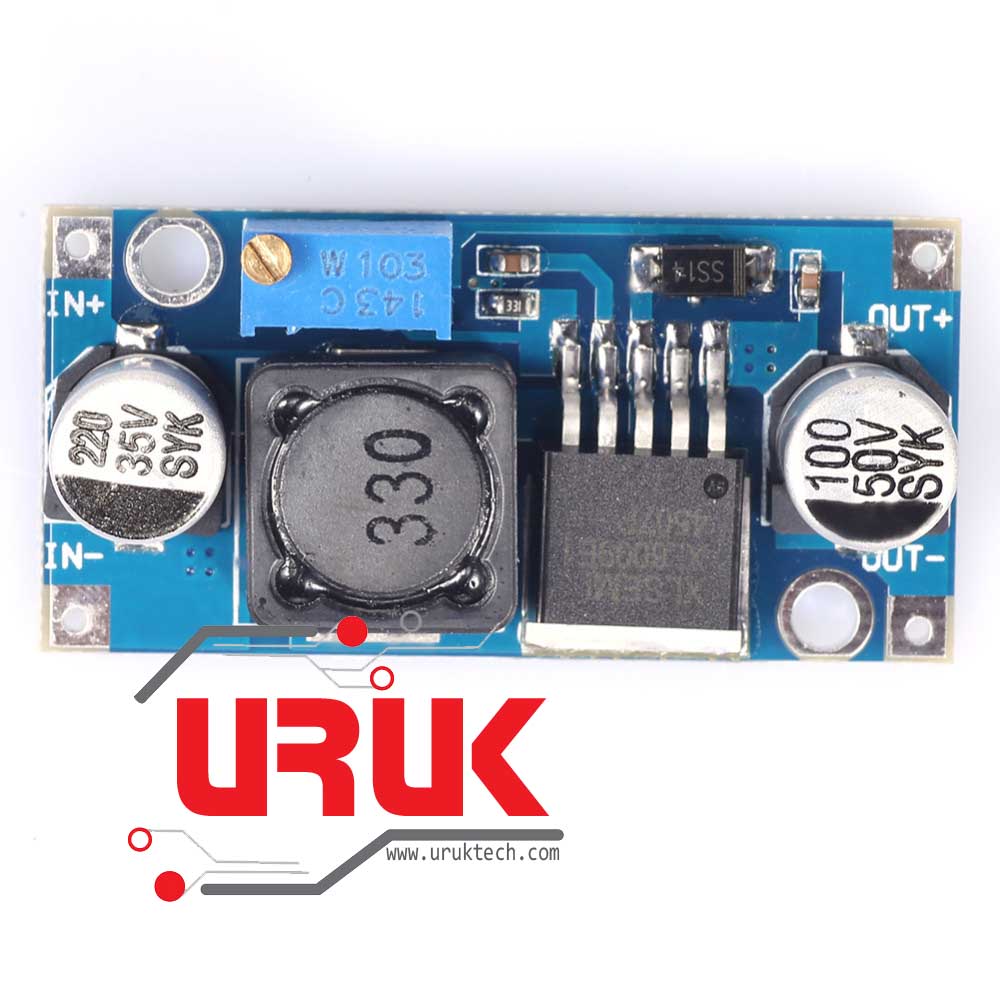

DSN6009 4A is a high-performance step-up switching current (BOOST) module. The module uses the second generation of high-frequency switching technology XL6009E1 core chip performance than the first generation technology LM2577. XL6009 boost module at a lower cost, superior performance, LM2577 module is about to be eliminated.
Wide input voltage 3V ~ 32V, optimum operating voltage range is 5 ~ 32V; Wide Output voltage 5V ~ 35V; Built-4A efficient MOSFET switches enable efficiency up to 94%; (LM2577 current is 3A). High switching frequency 400 KHz, can use a small-capacity filter capacitors that can achieve very good results, the ripple smaller and smaller. (LM2577 frequency only 50 KHz)

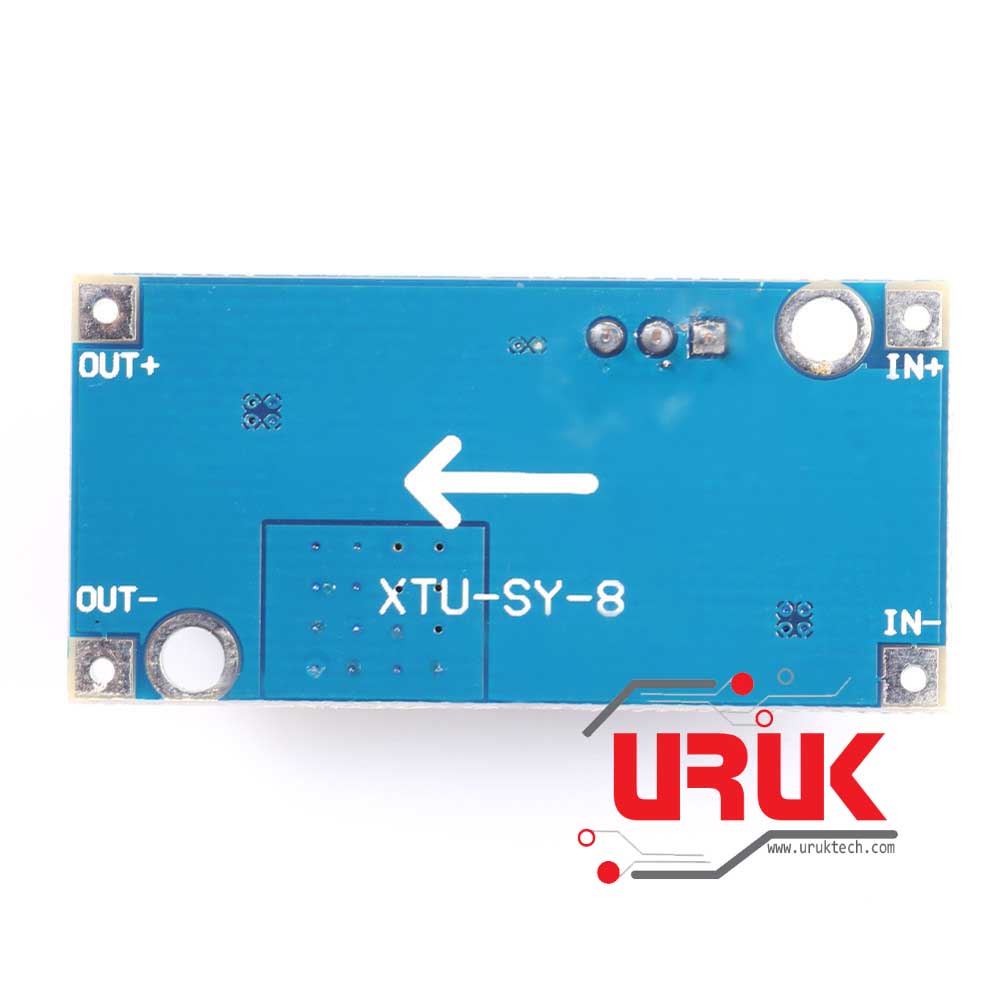

Terminals:
IN-IN + input Positive Input Negative!
Positive output OUT + OUT-output negative

Features:
– Model Specification: DSN6009 boost module
– Module Properties: Non-isolated boost (BOOST)
– Rectification: Non-Synchronous Rectification
– Input Range: 3V ~ 32V
– Output Range: 5V ~ 35V
– Input Current: 4A (max), no-load 18mA (5V input, 8V output, no-load is less than 18mA. Higher the voltage, the greater the load current.)
– Conversion efficiency: <94% (greater the pressure, the lower the efficiency)
– Switching frequency: 400KHz
– Output Ripple: 50mV (the higher the voltage, the greater the current, the greater the ripple)
– Load Regulation: ± 0.5%
– Voltage Regulation: ± 0.5%
– Dimensions: 43mm x 21mm x 14mm (L x W x H)

Test comparison sample reference:
Input 3V Output 12V 0.4A 4.8W
Input 5V Output 12V 0.8A 9.6W
Input 7.4V Output 12V 1.5A 18W
Input 12V Output 15V 2A 30W
Input 12V Output 16V 2A 32W
Input 12V Output 18V 1.6A 28.8W
Input 12V Output 19V 1.5A 28.5W
Input 12V Output 24V 1 A 24W

Vin x Iin x Efficiency = Vout x Iout
Vin: Input Voltage
Iin: input current
Vout: Output Voltage
Iout: output current
