APM Power Module 5.3V DC BEC for APM or PIXHAWK with XT60 Connectors

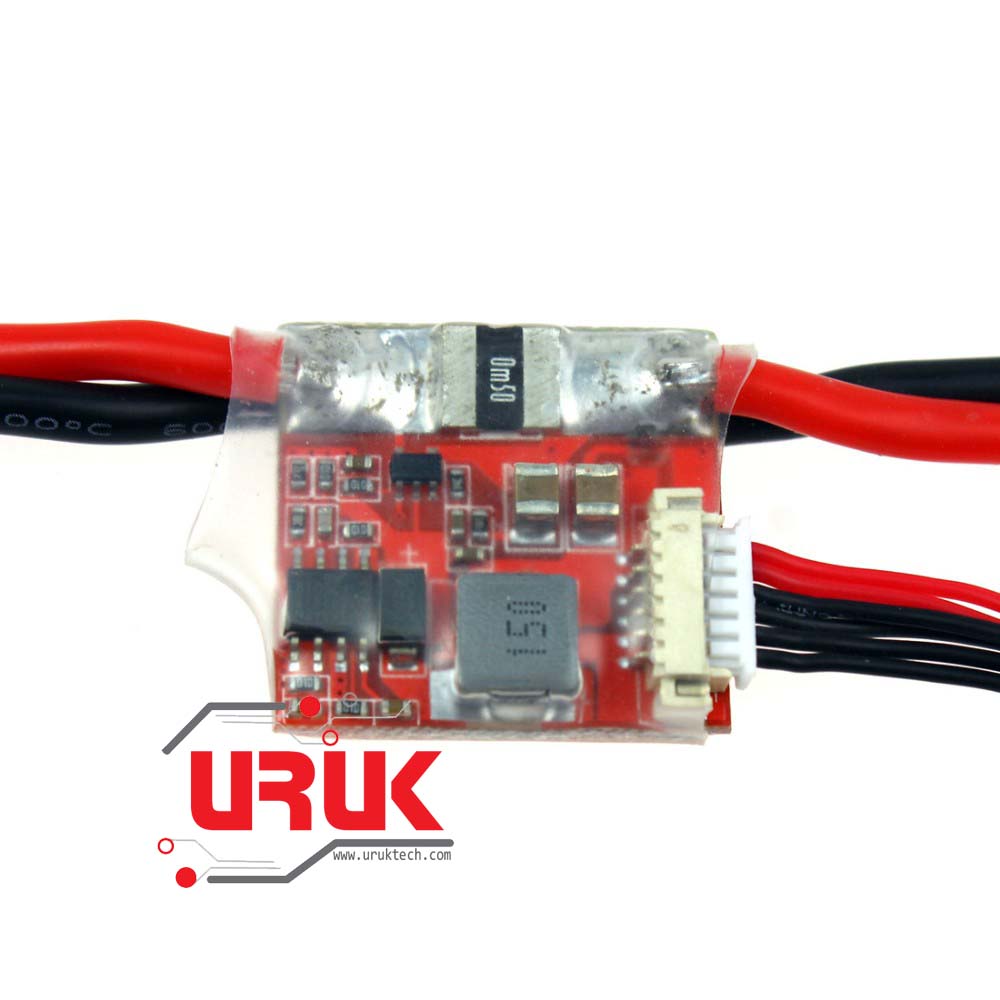

The APM 2.5 Power Module is a simple way of providing your APM 2.5 with clean power from a LiPo battery as well as current consumption and battery voltage measurements, all through a 6-pos cable. The on-board switching regulator outputs 5.3V and a maximum of 2.25A from up to a 4S LiPo battery. The Power Module comes completely assembled with Deans connectors, and wrapped in shrink tubing for protection.
Used to detect the battery voltage and the battery current, flight control board receives two signals, calculate the remaining battery power, estimate the remaining flight time. In addition the module also comes with BEC function; you can output 5.3 DC, 3A maximum continuous current for the flight control board to provide a stable power supply. Other signal cable connectors are used in Japan original fittings, non-domestic joint, so APM flight control board and reliable connection between the power supply module. The maximum input voltage 20V, maximum current measurable 90A, to achieve the control panel on battery power and voltage monitoring.
Max input voltage: 20V
Max current sensing: 90A
Voltage and current measurement configured for 5V ADC
Switching regulator outputs 5.3V and 2.25A max

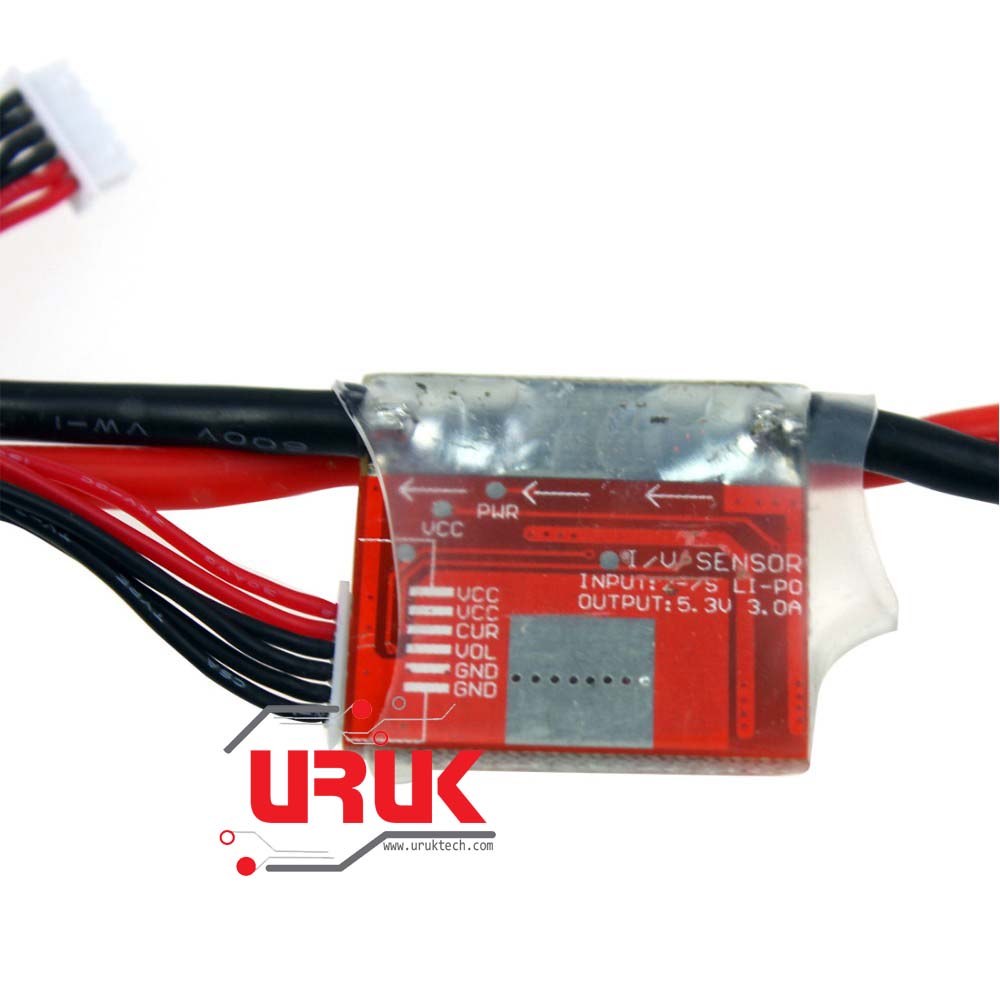

6-pos DF13 cable plugs directly to APM 2.5’s ‘PM’ connector
Work with APM 2.8 PIX PIXHAWK
Note: The Power Module is only designed to power APM, a RC receiver and APM accessories (GPS, 3DR radio). It is not designed to power servos. Use your aircraft’s own ESC/BEC for that.
1 x Power Module BEC With xt60 type Connector
