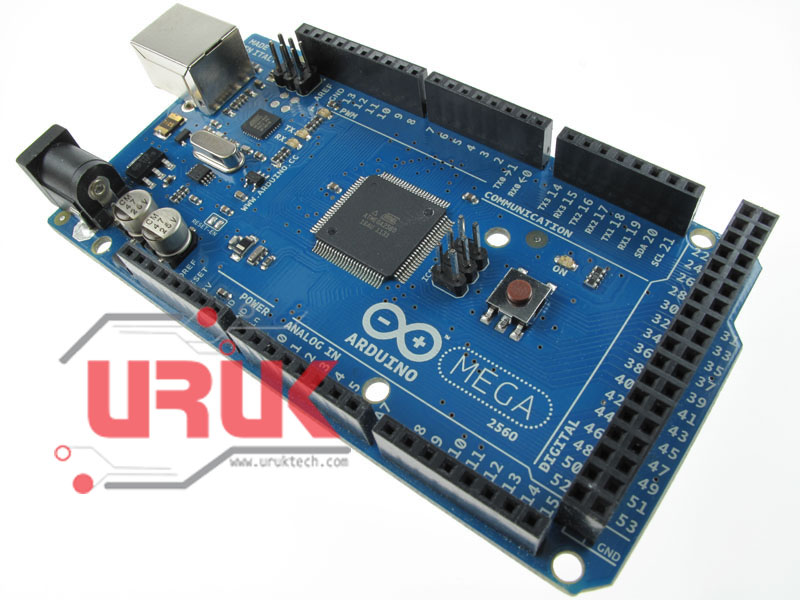

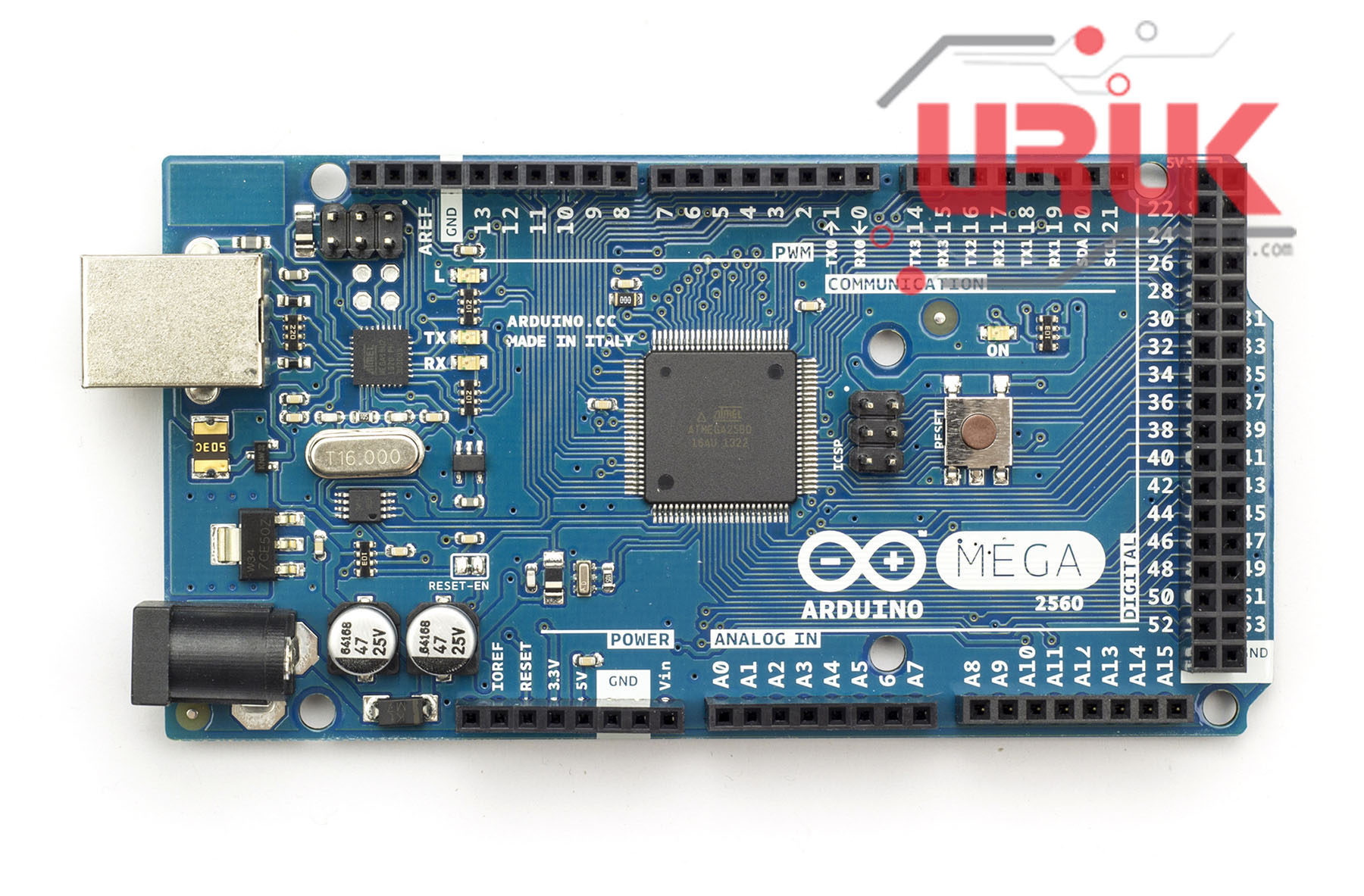

The Mega 2560 is a microcontroller board based on the ATmega2560. It has 54 digital input/output pins (of which 15 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.
|Input Voltage (recommended)||7-12V|
|Input Voltage (limit)||6-20V|
|Digital I/O Pins||54 (of which 15 provide PWM output)|
|Analog Input Pins||16|
|DC Current per I/O Pin||20 mA|
|DC Current for 3.3V Pin||50 mA|
|Flash Memory||256 KB of which 8 KB used by bootloader|
|Clock Speed||16 MHz|
