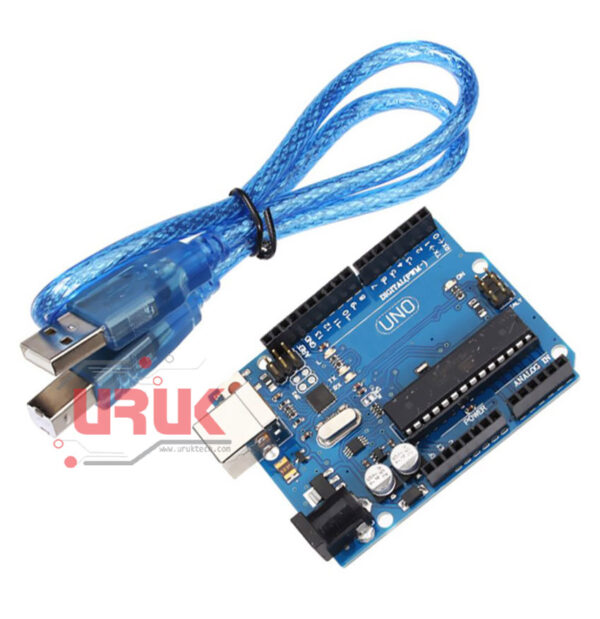

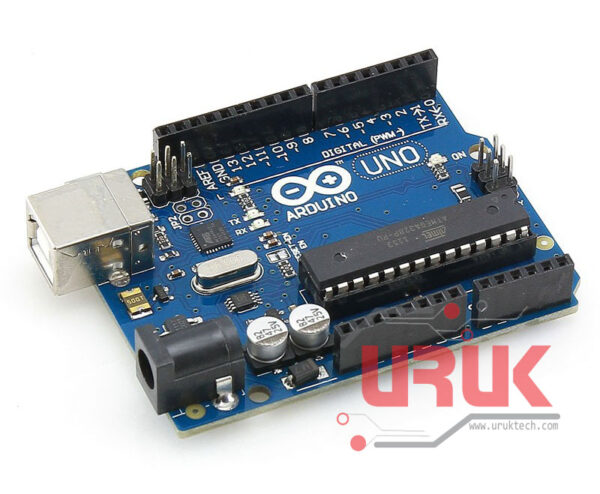

Arduino Uno R3
The Uno is a microcontroller board based on the ATmega328P. It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz quartz crystal, a USB connection, a power jack, an ICSP header and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.. You can tinker with your UNO without worrying too much about doing something wrong, worst case scenario you can replace the chip for a few dollars and start over again.
|Input Voltage (recommended)||7-12V|
|Input Voltage (limit)||6-20V|
|Digital I/O Pins||14 (of which 6 provide PWM output)|
|PWM Digital I/O Pins||6|
|Analog Input Pins||6|
|DC Current per I/O Pin||20 mA|
|DC Current for 3.3V Pin||50 mA|
|Flash Memory||32 KB (ATmega328P)
of which 0.5 KB used by bootloader
|SRAM||2 KB (ATmega328P)|
|EEPROM||1 KB (ATmega328P)|
|Clock Speed||16 MHz|
