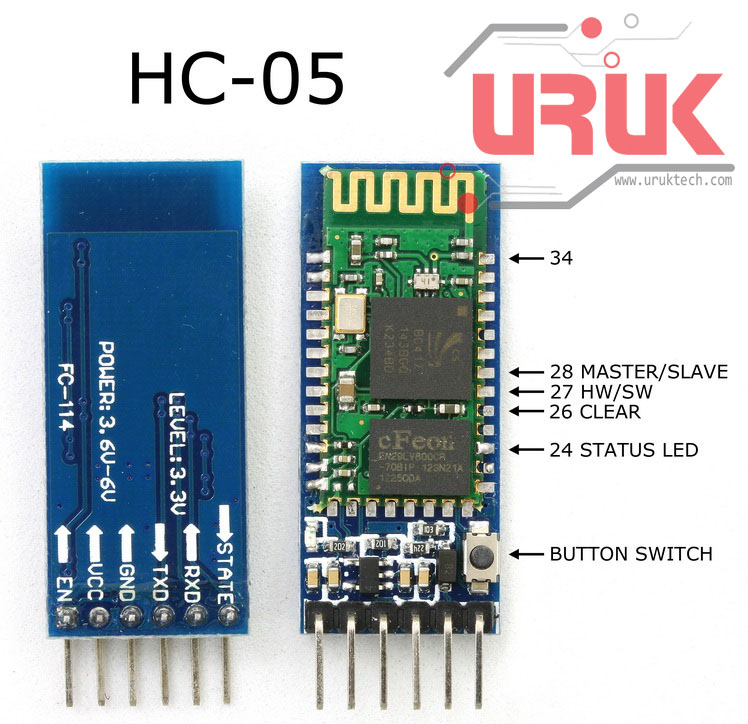

Bluetooth Transceiver HC-05
بلوتوث (HC-05) يعمل Master/Slave
HC-05 Bluetooth Module Device include:
Note:It’s HC-05 Bluetooth module Slave and master two in one module
2. Module working voltage 3.3 V.
3. Potter default rate of 9600, the user can be set up.
4. The core module size : 28 mm x 15 mm x 2.35 mm.
5. Working current: matching for 30 MA, matching the communication for 8 MA.
6. Dormancy current: no dormancy.
7. Used for navigation system, water and electricity gas meter reading system.
8. With computer and bluetooth bluetooth adapter, PDA, seamless connection equipment
- Commercial Series: Bluetooth module board Series
- With LED indicator light, use 150mA and 3.3V regulation chip.
- With VCC.GND.TXD.RXD foot for the Bluetooth
- With “Re-seach” button(ON/OFF/WAKE foot for it , external MCU outinput “High level” can control module to re-seach)
- Compatible with bluetooth master module”.slave module”or master-slave(whole) module.
- Input voltage: 3.3~6V
- Size: 1.55cm*3.98cm
We advise to install “Bluetooth master module”
The “State” is output foot for LED status, when bluetooth “Unconnected”, output “Pulse” ; when bluetooth “connected”, output “High level”, we can determine the states from “MCU”
If only the board , No any “Bluetooth Function “
- 1PCS*HC-05 bluetooth module with backboard
