6-Bit Flash Speed ADC CA3306CE

Availability:

Out of stock


دائرة ADC متكاملة لتحويل الأشارة التماثليلة الى رقمية وبسرعة عالية جدا Flash Speed او ما يسمى بالـ Video Speed. يمكن من خلال هذه الدائرة تحويل اي فولتية الى اشارة رقمية متكونة من 6-bits وبسرعة عالية جدا 100ns وبأستهلاك طاقة منخفض جدا 70 ملي واط. يمكن استلام الاشارة عبر منافذ الخروج الرقمية اي ان الاشارة هي Parallel وهي اسهل طريقة للقراءة من اي متحكم مثل الاردوينو وغيرها عبر قراءة الاشارة رقمياً. تستخدم دائرة التحويل هذه في العديد من التطبيقات التي تحتاج الى تحويل الاشارة بسرعة عالية جدا مثل تطبيقات تحويل اشارة الفيديو الى اشارة رقمية وفي صناعة الاوسلوسكوبات السريعة والتعامل مع الكامرات وتحليل اشارات الحركة وايضاً في تطبيقات الرؤية في الروبوتات.

1,500 د.ع 3,750 د.ع

Out of stock

Compare

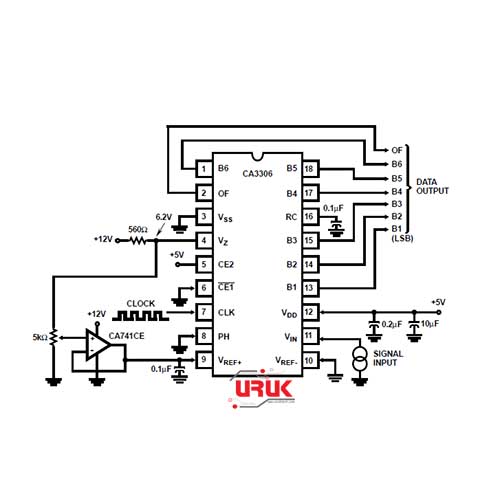

6-Bit Flash Speed ADC CA3306CE

The CA3306 family are CMOS parallel (FLASH) analog-to-digital converters designed for applications demanding both low power consumption and high-speed digitization. Digitizing at 15MHz, for example, requires only about 50mW. The CA3306 family operates over a wide, full scale signal input voltage range up to the supply voltage. Power consumption is as low as 15mW, depending upon the clock frequency selected. The CA3306 types may be directly retrofitted into CA3300 sockets, offering improved linearity at a lower reference voltage and high operating speed with a 5V supply. The intrinsic high conversion rate makes the CA3306 types ideally suited for digitizing high-speed signals. The overflow bit makes possible the connection of two or more CA3306s in series to increase the resolution of the conversion system. A series connection of two CA3306s may be used to produce a 7-bit high speed converter. Operation of two CA3306s in parallel doubles the conversion speed (i.e., increases the sampling rate from to 30MHz). Sixty-four paralleled auto balanced comparators measure the input voltage with respect to a known reference to produce the parallel bit outputs in the CA3306. Sixty-three comparators are required to quantize all input voltage levels in this 6-bit converter, and the additional comparator is required for the overflow bit.

Features

  • CMOS Low Power with Video Speed (70mW Typ.)
  • Parallel Conversion Technique
  • Signal Power Supply Voltage (3V to 7.5V)
  • 15MHz Sampling Rate with Single 5V Supply
  • 6-Bit Latched Tri-State Output with Overflow Bit
  • Pin-for-Pin Retrofit for the CA3300

Applications

  • TV Video Digitizing
  • Ultrasound Signature Analysis
  • Transient Signal Analysis
  • High Energy Physics Research
  • High Speed Oscilloscope Storage/Display
  • General Purpose Hybrid ADCs
  • Optical Character Recognition
  • Radar Pulse Analysis
  • Motion Signature Analysis
  • Robot Vision

See the Datasheet

Package Includes:
1 x 6-Bit Flash Speed ADC CA3306CE

SKU: 775 Category:
  • CMOS Low Power with Video Speed (70mW Typ.)
  • Parallel Conversion Technique
  • Signal Power Supply Voltage (3V to 7.5V)
  • 15MHz Sampling Rate with Single 5V Supply
  • 6-Bit Latched Tri-State Output with Overflow Bit
  • Pin-for-Pin Retrofit for the CA3300
