CNC/3D Printer Controller (RAMPS 1.4) with Five DRV8825 Stepper Motor Driver

Availablity:

In stock


Compare

CNC 3D Printer Controller (RAMPS 1.4) with Five DRV8825 Stepper Motor Driver

37,000 IQD

In stock

CNC 3D Printer Controller (RAMPS 1.4) with Five DRV8825 Stepper Motor Driver

CNC 3D Printer Controller Board (RAMPS 1.4)
Features:
– Fully assembled & tested, no soldering required.
– It is designed to fit the entire electronics needed for a RepRap in one small package for low cost.
– The modular design includes plug in stepper drivers and extruder control electronics on an Arduino – – MEGA shield for easy service, part replacement, upgrade-ability and expansion.
– A number of Arduino expansion boards can be added to the system as long as the main RAMPS board is kept to the top of the stack.
– Size: 11.5cm x 6cm / approx. 4.5in x 2.4in.

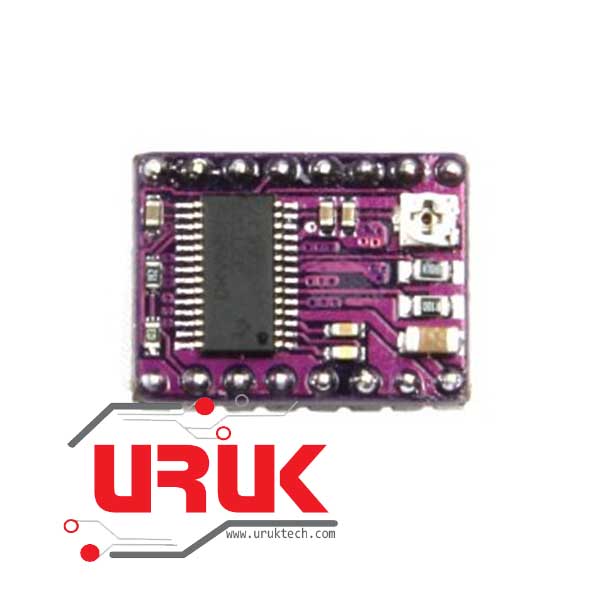

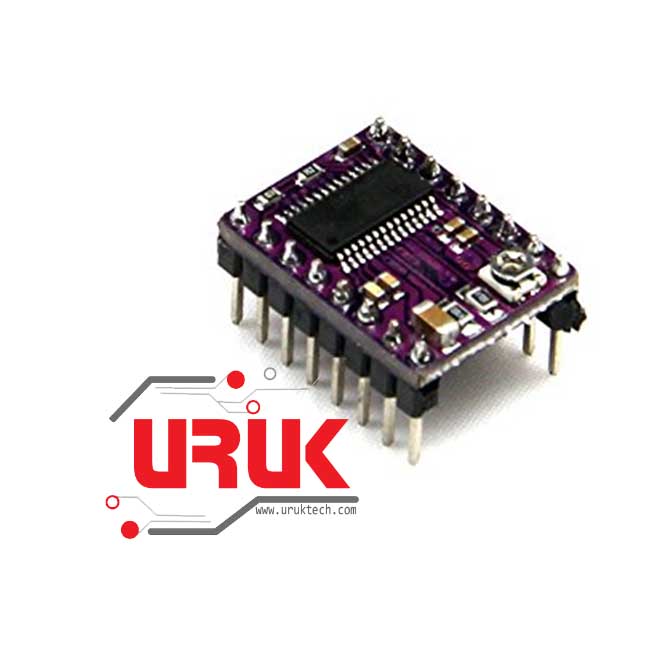

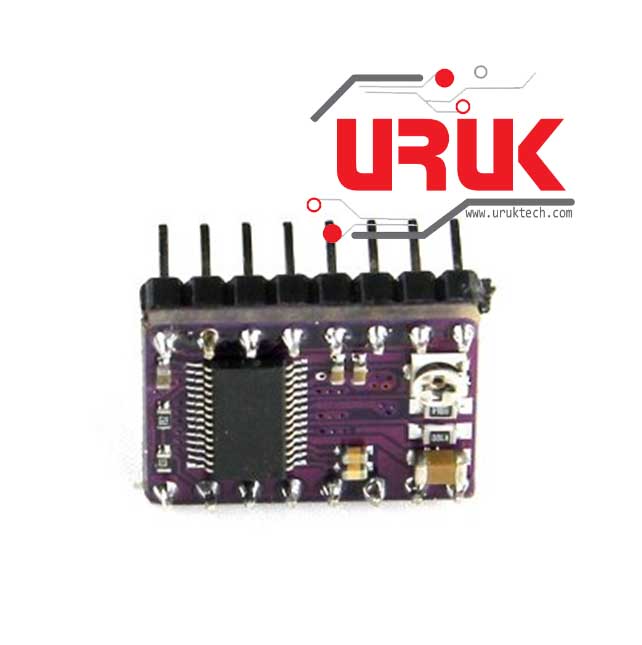

DRV8825 Module High Current Stepper Motor Driver for 3D Printer
Features:
-Simple step and direction control interface.
– Six different step resolutions: full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-step.
– Can interface directly with 3.3 V and 5 V systems
– Over-temperature thermal shutdown, over-current shutdown, and under-voltage lockout .
– Short-to-ground and shorted-load protection.
– 4 layer, 2 oz copper PCB for improved heat dissipation.
– Exposed solderable ground pad below the driver IC on the bottom of the PCB.
– Module size, pinout, and interface match those of our A4988 stepper motor driver carriers in most respects (see the bottom of this page for more information).
– Adjustable current control lets you set the maximum current output with a potentiometer, which lets you use voltages above your stepper motor’s rated voltage to achieve higher step rates.

Package Includes:
1 x 3D Printer Controller Board (RAMPS 1.4)
5 x DRV8825 Driver

CNC 3D Printer Controller Board (RAMPS 1.4)

  • Fully assembled & tested, no soldering required.
  • It is designed to fit the entire electronics needed for a RepRap in one small package for low cost.
  • The modular design includes plug in stepper drivers and extruder control electronics on an Arduino
  • MEGA shield for easy service, part replacement, upgrade-ability and expansion.
  • A number of Arduino expansion boards can be added to the system as long as the main RAMPS board is kept to the top of the stack.
  • Size: 11.5cm x 6cm / approx. 4.5in x 2.4in.



DRV8825 Module High Current Stepper Motor Driver for 3D Printer

  • Simple step and direction control interface.
  • Six different step resolutions: full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-step.
  • Can interface directly with 3.3 V and 5 V systems
  • Over-temperature thermal shutdown, over-current shutdown, and under-voltage lockout .
  • Short-to-ground and shorted-load protection.
  • 4-layer, 2 oz copper PCB for improved heat dissipation.
  • Exposed solderable ground pad below the driver IC on the bottom of the PCB.
  • Module size, pinout, and interface match those of our A4988 stepper motor driver carriers in most respects (see the bottom of this page for more information).
  • Adjustable current control lets you set the maximum current output with a potentiometer, which lets you use voltages above your stepper motor’s rated voltage to achieve higher step rates.
