Digital Amplifier Board 2x3W Class D PAM8403

Excellent noise suppression, in the absence of circumstances connected to input audio ear close to the speaker cannot hear any noise, two-channel stereo, 5V power supply can output 3W power, can directly drive 4Ω, 8Ω small speakers, the output power large, full of energy, good sound quality. The unique non-LC filter Class-D digital power board can be directly used computer USB power supply. Double panel wiring, wiring properly resolve the ground potential caused by balance and inter-channel crosstalk, ultra-miniature design, can easily be placed in a variety of digital products within a small space, high amplification efficiency. All using the whole plate welding machine, welding quality comparable non-manual soldering iron!

Features
– Advanced Micro Devices, volume: 1.85 * 2.11cm
Excellent noise suppression in the case is not connected to the input audio, the ear close to the speaker cannot hear any noise

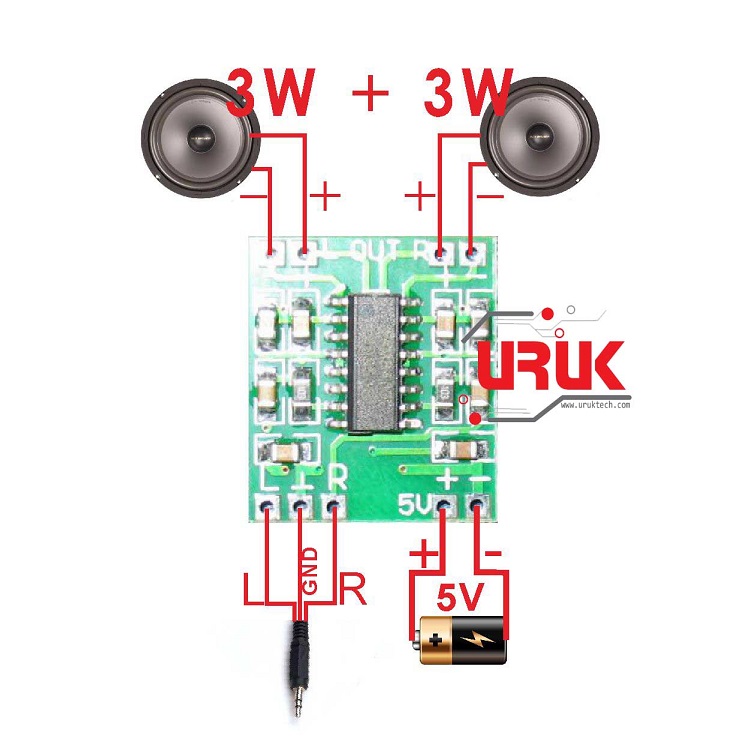

– Two-channel stereo, 5V power supply can output 3W +3 W power, can directly drive 4Ω 8Ω small speaker output power, full of energy, good sound quality.
– Unique without LC filter Class D digital power board, and can be used directly to the computer’s USB powered.
– Dual-panel wiring, properly solve the crosstalk between the ground potential balance and channel wiring
– Ultra-miniature design, can easily be placed in the internal space for a variety of digital products, ultra high zoom efficiency.
– All using the machine for the entire board soldering, hand soldering iron welding quality comparable!
– Rated working voltage 2.5-5V, limit operating voltage 5.5V.

Note: The left and right channel output of the “negative” cannot, and then together, otherwise it will burn the IC and energized speaker (load) connected before.

Specifications:
Model: PA8403
Power: Low Power
Size: 1.85 x 2.11 cm

Package Includes:
1 x Digital Amplifier Board PAM8403

SKU: 233-PAM84 Category:
  • Model: PA8403
  • Power: Low Power
  • Size: 1.85 x 2.11 cm
