Dual H Bridge DC Drive L298N

Availablity:

In stock


Compare

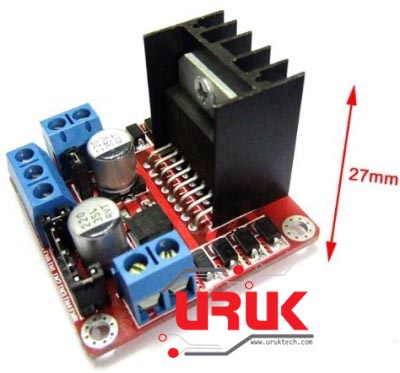

Dual H Bridge DC Drive L298N module Controller Board for DC motor or Stepper Motor

5,500 IQD

In stock

17,500 IQD for 2 item(s)

Dual H Bridge DC Drive L298N module Controller Board for DC motor or Stepper Motor

L298N as main chip, ST corporation production
Low heat, outstanding anti-interference performance.
High working power to 46v, large current can reach 3A MAX and continue current is 2A, power to 25w.
Can drive one 2-phase stepper motor, one 4-phase stepper motor or two DC motors.
Built-in 78M05,get power from drive power, however, when drive power over12V, please use the external 5v power as power supply.
Large capacity filter capacitance, after flow protection diode, more stable and reliable.

Note:
This module has a built-in 5v power supply, when the driving voltage is 7v-35v, this supply is suitable for power supply
DO NOT input voltage to +5v supply interface, however ledding out 5v for external use is available.
When ENA enable IN1 IN2 control OUT1 OUT2
When ENB enable IN3 IN4 control OUT3 OUT4

Package Included:
1 x Dual H Bridge DC Stepper Motor Drive Controller Board Module L298N

SKU: 59-L298N Categories: , , ,
Voltage

, , , ,

  • Double H bridge drive
  • Chip: L298N (ST NEW)
  • Logical voltage: 5
  • VDrive voltage: 5V-35V
  • Logical current: 0mA-36mA
  • Drive current: 2A(MAX single bridge)
  • Max power: 25W
  • Size: 43 x 43 x 26mm
  • Net weight: 26g
  • Package Weight: 36g
