Eithernet Shield for Arduino Uno (w5100)

Availablity:

In stock


Compare

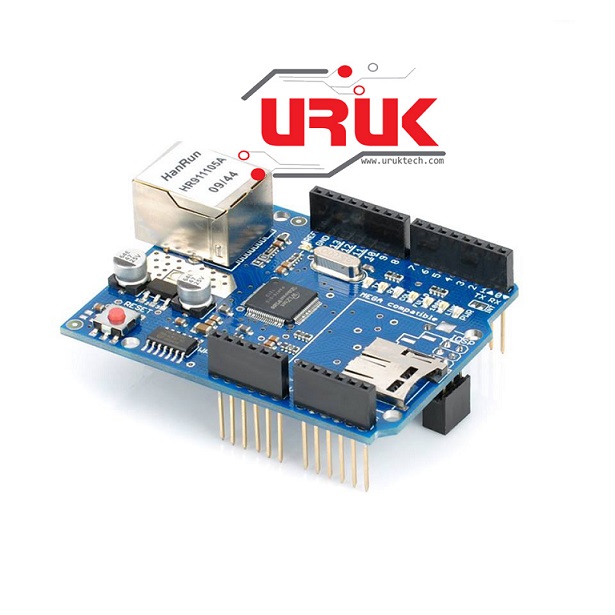

Eithernet Shield for Arduin Uno (w5100)
The W5100 Ethernet Shield (assembled) allows an Arduino board to connect to the internet. It is based on the Wiznet W5100 Ethernet chip The Wiznet W5100 provides a network (IP) stack capable of both TCP and UDP.

12,750 IQD

In stock

Eithernet Shield for Arduinoo Uno (w5100)

Description
The W5100 Ethernet Shield (assembled) allows an Arduino board to connect to the internet. It is based on the Wiznet W5100 Ethernet chip The Wiznet W5100 provides a network (IP) stack capable of both TCP and UDP. It supports up to four simultaneous socket connections. Use the Ethernet library to write sketches which connect to the internet using the shield.
The new Ethernet shield now includes a micro SD card connector, it is MEGA compatible and an on-board reset controller.

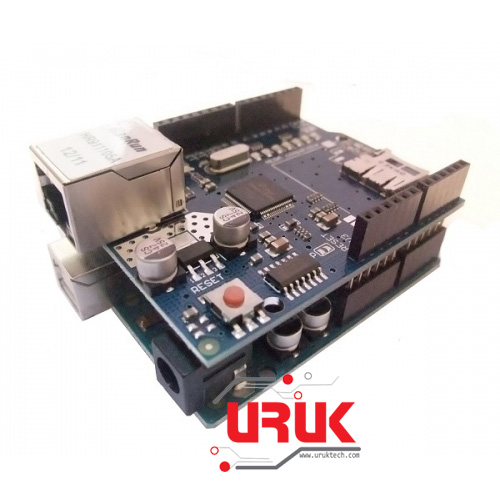

The Ethernet shield connects to an Arduino board using long wire-wrap headers which extend through the shield. This keeps the pin layout intact and allows another shield to be stacked on top.
Arduino uses digital pins 10, 11, 12, and 13 (SPI) to communicate with the W5100 on the Ethernet shield. These pins cannot be used for general i/o. The shield provides a standard RJ45 Ethernet jack. An Arduino is necessary to use this shield but is not included.

SKU: 95-W5100 Categories: , ,
  • Dimensions: 73mm x 54mm x 17mm (2.8in x 2.1in x 0.7in)
  • Weight: 26g / 1oz
