5V-12V Gain Signal Amplifier Board LM358

Availability:

In stock


بورد تكبير إشارة لغاية 100 مرة، يحتوي البورد على Op-amp نوع LM358 جاهز للعمل، حيث ان البورد يحتوي على جميع مكونات الدائرة ويعمل على فولتية 5 الى 12 فولت. يتميز البورد بصغر حجمه واحتواءه على مقاومة صغيرة يمكن تغييرها بشكل يدوي للحصول على التكبير المطلوب. يمكن استخدامه في التطبيقات التي تكون فيها الإشارة صغيره وتحتاج الى تكبير لأغراض القياس او للتعامل معها بشكل سهل.

1,500 د.ع

In stock

Compare

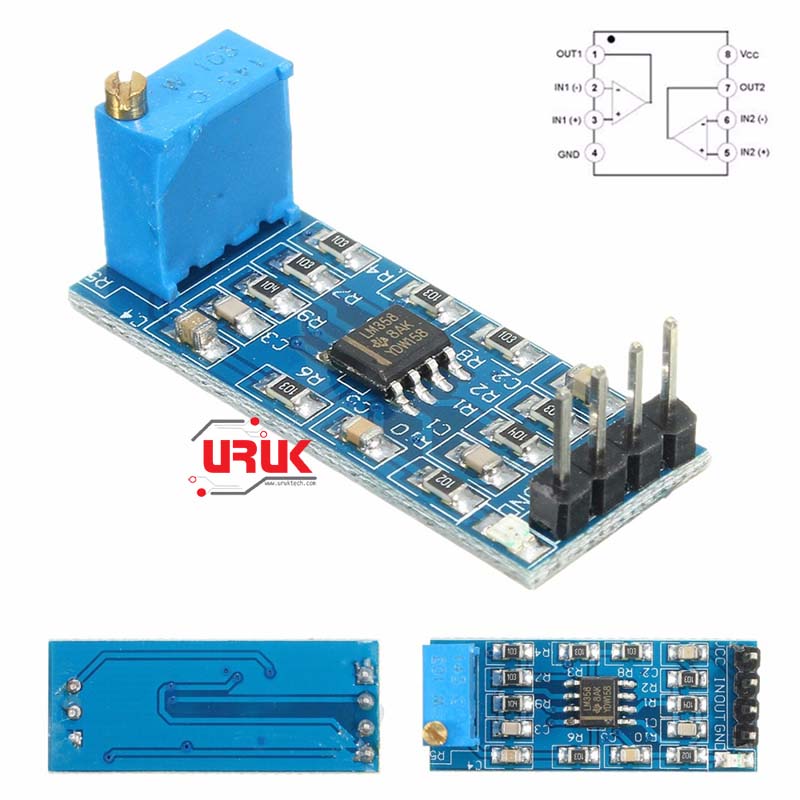

5V-12V Gain Signal Amplifier Board LM358

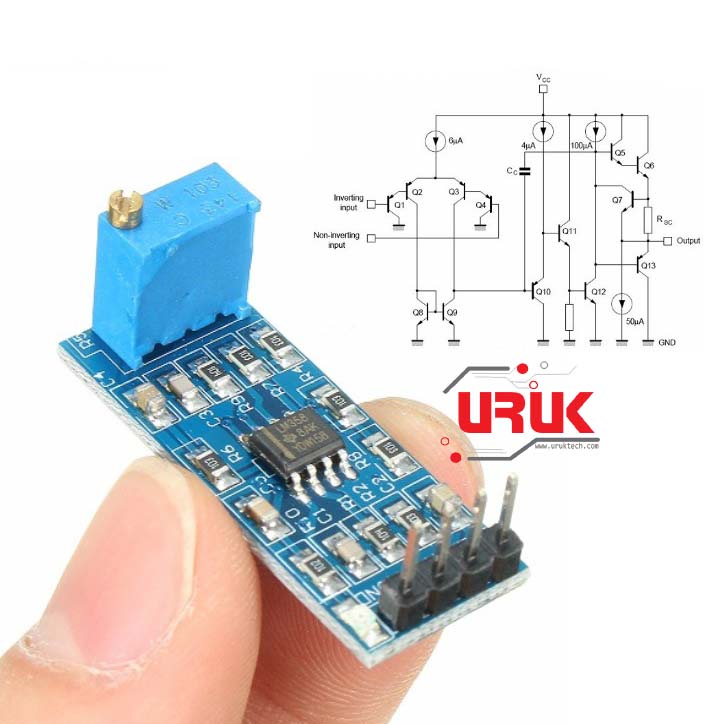

XD-21 LM358 Gain Amplification Module Operational Amplifier Module is based on the LM358 operational amplifier which is a high-gain, frequency compensated operational amplifier designed to operate from a single power supply over a wide range of voltages. It is used in conventional operational amplifier circuits that need to be operated from a single power rail.



Features:

  • Onboard 10K adjustable resistance, you can adjust the magnification
  • On-board power indicator
  • The chip has been drawn primarily pin can be directly input and output signals



Specifications:
Op-Amp Used: LM358
Circuit Gain: 100
Operating Voltage: 5 – 12V
Board size: 32.7×13.3 mm



Package Includes:
1 x Gain Signal Amplifier Board LM358

SKU: 563 Categories: , ,
  • Op-Amp Used: LM358
  • Circuit Gain: 100
  • Operating Voltage: 5 – 12V
  • Board size: 32.7×13.3 mm
