Graphic LCD Display 128×64

Rated 4.50 out of 5 based on 2 customer ratings
(2 customer reviews)
Availability:

In stock


Compare

شاشة LCD بحجم 128×64 نقطه يمكنها عرض صور نقطية وشائعة جدا في عرض المعلومات للتطبيقات التي تحتاج الي شاشات عرض كبيرة

11,500 ع.د 13,000 ع.د

In stock

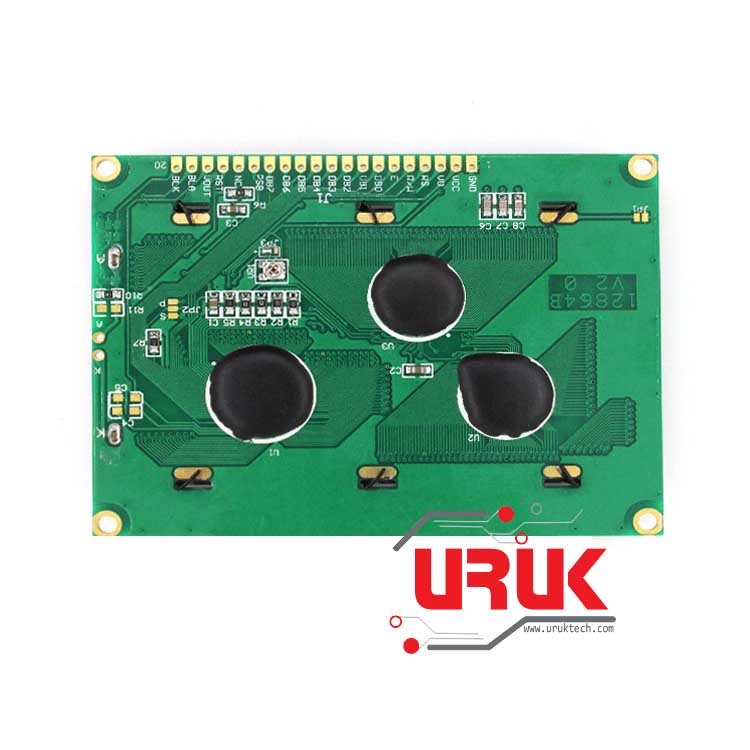

Graphic LCD Display 128×64 (Blue backlight)

12864 LCD Display Module 128×64 Dots Graphic Yellow Green Color Backlight
This product is a LCD display module with blue backlight, small and light appearance, suitbale for copiers, fax machines, laser printers, industrial test equipment, networking

Features:
– Small and light appearance, it is easy and convenient to use.
– Suitable for copiers, fax machines, laser printers, industrial test equipment, networking equipment etc.
– Backlight: Blue
– View area: 7.0cm (L) x 4.4cm (W)
– Dots size: 0.48mm (L) * 0.48mm (W)
– Dots pitch: 0.52mm (L) * 0.52mm (W)
– LCD type: STN (Blue)
– Viewing angle: 6 o’clock
– Operating temperature: -20 to 70 degree
– Storage temperature: -30 to 80 degree
– Item size: 92*69*10mm
– Net weight: 76g

Package Includes:
1 x Graphic LCD 128×64 (Blue backlight)

Parallel mode interface definition:

Pin Definition level Function
1 VSS 0V Power supply negative
2 VDD +5V Power supply positive
3 V0 Contrast control
4 RS H/L RS=H: shows dataRS=L: controls instruction
5 R/W H/L R/W+H, E=H, data was read DB7-DB0
R/w=L, E=H=L: the data of DB7-DB0 was written to IR or DR
6 E H/L Enable pin
7-14 DB0-DB7 H/L Data line
15 PSB H/L PSB=H,parallel mode,PSB=L,serial mode
16 NC Empty pin
17 /RESET H/L Reset terminal, low level valid
18 Voult Module drives voltage output terminal
19 A +5V Backlight power supply positive
20 K 0V Backlight power supply negative

Serial module interface definition:

Pin Definition level Function
1 VSS 0V Power supply negative
2 VDD +5V Power supply positive
3 V0 Contrast control
4 CS H/L Chip selection terminal, high level valid
5 SID H/L Serial data input terminal
6 CLK H/L Serial synchronous clock
15 PSB H/L PSB=H, parallel mode
PSB=L, serial mode
17 /RESET H/L Reset terminal, low level valid
19 A +5V Backlight power supply positive
20 K 0V Backlight power supply negative
SKU: 230 Category:
  • LCD display module with blue backlight.
  • Small and light appearance, it is easy and convenient to use.
  • Suitable for copiers, fax machines, laser printers, industrial test equipment, networking equipment etc.
  • Backlight: Blue
  • View area: 7.0cm (L) x 4.4cm (W)
  • Dots size: 0.48mm (L) * 0.48mm (W)
  • Dots pitch: 0.52mm (L) * 0.52mm (W)
  • LCD type: STN (Blue)
  • Viewing angle: 6 o’clock
  • Operating temperature: -20 to 70 degree
  • Storage temperature: -30 to 80 degree
  • Item size: 92*69*10mm
  • Net weight: 76g
