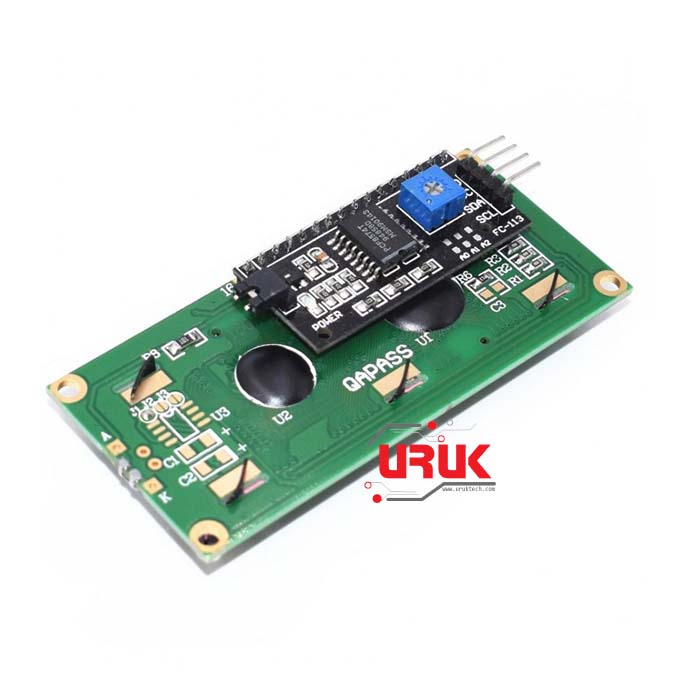

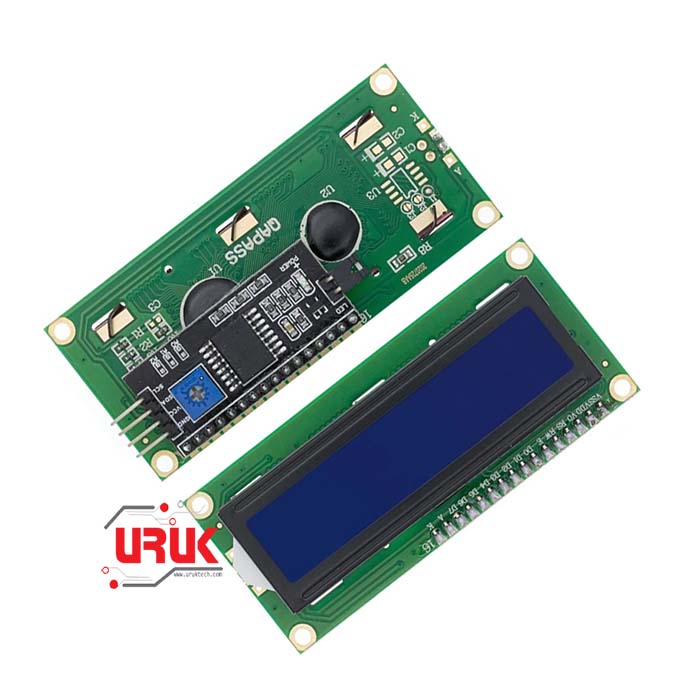

I2C 16×2 LCD Display Module

Availability:

Out of stock


شاشة 2×16 نوع LCD بخلفية زرقاء اللون واحرف باللون الأبيض، يمكن برمجتها بأستخدام بروتوكول الـ  I2C بشكل مباشر حيث تحتوي على وحدة التحويل الخاصة بها المثبتة مسبقاً بالشاشة حيث تختصر الربط الى سلكين فقط بالإضافة الى سلكي التجهيز من مصدر 5V. يمكن عرض سطرين على الشاشة و16 رمزاً من الاحرف او الأرقام او أي رمز مقروء لكل سطر.

5,750 ع.د

Out of stock

I2C 16×2 LCD Display Module

This is a 16×2 LCD display screen with I2C interface. It is able to display 16×2 characters on 2 lines, white characters on blue background.
Usually, LCD display projects will run out of pin resources easily, especially with Arduino Uno or any other MCU. And it is also very complicated with the wire soldering and connection. This I2C 16×2 LCD Screen is using an I2C communication interface. It means it only needs 4 pins for the LCD display: VCC, GND, SDA, SCL. It will save at least 4 digital/analog pins on MCU.



Features

  • LCD display module with blue blacklight.
  • Wide viewing angle and high contrast.
  • Built-in industry standard HD44780 equivalent LCD controller.
  • Commonly used in copiers, fax machines, laser printers, industrial test equipment, networking equipment such as routers and storage devices.
  • Can display 2-lines X 16-characters.



Specifications
I2C Address: 0x20
LCM type: Characters
Backlight Background: Blue
Characters Color: White
Supply voltage: 5V
Size: 82x35x18 mm
Viewing area size: 64.5mm x 16mm



Package Includes:
1 x I2C 16×2 Arduino LCD Display Module

SKU: 482 Category:
  • I2C Address: 0x20
  • LCM type: Characters
  • Backlight Background: Blue
  • Characters Color: White
  • Supply voltage: 5V
  • Size: 82x35x18 mm
  • Viewing area size: 64.5mm x 16mm
