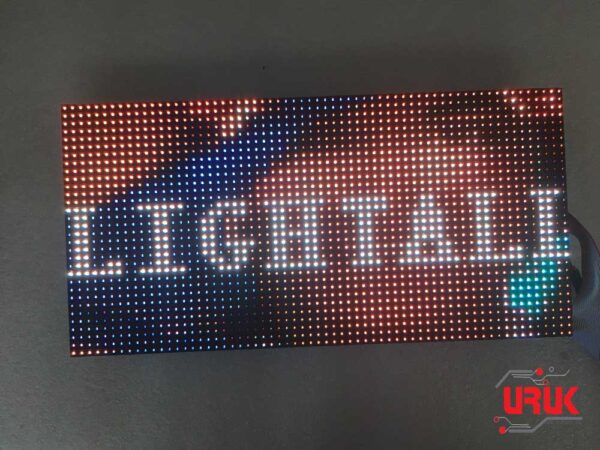

Indoor LED Screen Module 320mmx160mm High Refresh High Brightness

Availability:

In stock


شاشة LED بحجم 32×16 سم، تحتوي على مصفوصة RGB LED بعدد 2048 واحدة. تستخدم الشاشة لتشكيل شاشات اكبر بدقة HD وبألوان كاملة تصل الى 16 مليون لون وبسرعة تحديث عالية تصل الى 600HZ. تمتاز بعمر تشغيلي طويل وتعمل على 5 فولت. مناسبة لجميع الاستخدامات حيث انها تحتوي على IC خاص للتشغيل ويمكن ربطها وتشغيلها عبر منفذ خاص بها.

57,750 ع.د

In stock

Indoor LED Screen Module 320mmx160mm High Refresh High Brightness

P5 LED Display can be used for many purposes and at many places. It can be used for advertisement, banner display, demonstration, video displays, educational purposes and much more. You may use it at indoor areas like high-end meeting, malls, stages, and stadium and at many more indoor places.
The cabinet of LED Screen features unique rugged design which makes it easy to carry and install. The lightweight cabinet is easy to carry and saves transportation cost. It’s damage free and lasts for a lifetime.

Features:
– P5 indoor full color led display panel
– 64 x 32 pixel
– 320mm * 160mm size
– 1/16 scan DC5V
– Brightness: 1500 Nits/square meter

Specifications:
Model Number: EBP5IN
Module size: 320mm*160mm
Pixel pitch: 5mm
Chip: Epstar
Pixel density: 40000 dots/m2
Pixel configuration: 1RGB 3in1
Package mode: SMD3528
Pixel resolution: 64dots (W) x 32dots (H)
Module thickness: 16mm
Drive type: Constant Current Drive
Scan mode: 1/16scan
Port type: HUB75
Brightness of white balance: ≥1500cd/m2
Average Power consumption: <360W/m2
Max. Power consumption: <900W/m2
Current: <20mA (single LED)
Driving device: Constant drive IC
Color temperature: 6500k
Red wavelength: 625±2nm
Green wavelength: 525±2nm
Blue wavelength: 470±2nm
Control method: Synchronization or Asynchronization
Grey scale/colors: 16384 gray level/16.7M colors
Driving method: 1/16 scanning
Frame frequency: 60Hz
Refresh frequency: ≥600Hz
Working Voltage: DC5V
IP grade: IP54
MTBF: More than 8000hours
Life Span: 80,000hours

Package Includes:
1 x Indoor LED Screen Module

SKU: 218 Category:
  • Model Number: EBP5IN
  • Module size: 320mm*160mm
  • Pixel pitch: 5mm
  • Chip: Epstar
  • Pixel density: 40000 dots/m2
  • Pixel configuration: 1RGB 3in1
  • Package mode: SMD3528
  • Pixel resolution: 64dots (W) x 32dots (H)
  • Module thickness: 16mm
  • Drive type: Constant Current Drive
  • Scan mode: 1/16scan
  • Port type: HUB75
  • Brightness of white balance: ≥1500cd/m2
  • Average Power consumption: <360W/m2
  • Max. Power consumption: <900W/m2
  • Current: <20mA (single LED)
  • Driving device: Constant drive IC
  • Color temperature: 6500k
  • Red wavelength: 625±2nm
  • Green wavelength: 525±2nm
  • Blue wavelength: 470±2nm
  • Control method: Synchronization or Asynchronization
  • Grey scale/colors: 16384 gray level/16.7M colors
  • Driving method: 1/16 scanning
  • Frame frequency: 60Hz
  • Refresh frequency: ≥600Hz
  • Working Voltage: DC5V
  • IP grade: IP54
  • MTBF: More than 8000hours
  • Life Span: 80,000hours
