Arduino Pro Mini 5V/16MHz

(1 customer review)
Arduino
Availability:

In stock


اردوينو برو ميني يعمل بفولتية 5V وتردد 16MHz مناسب لجميع المشاريع بالاخص المشاريع التي تحتاج الي الى معدات صغيره ويمكن ربطها مباشرة مع جميع الملحقات الاخرى. يحتوي على كافة المواصفات التي يحتويها بورد الاردوينو اونو لكن بحجم صغير.

9,000 د.ع

In stock

Compare

Arduino Pro Mini 5V/16MHz

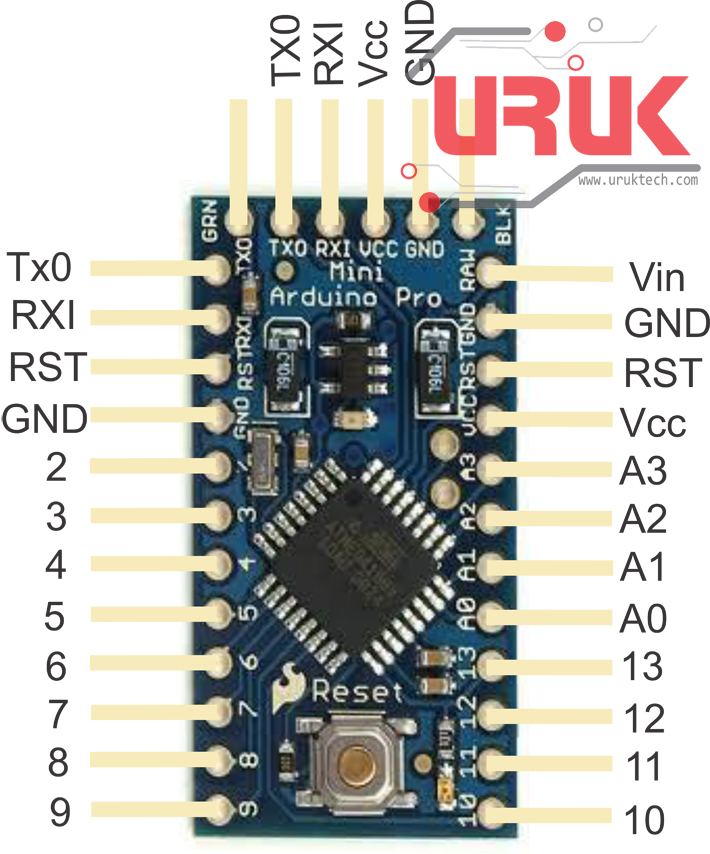

The Arduino Pro Mini is a microcontroller board based on the ATmega328.
It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, an on-board resonator, a reset button, and holes for mounting pin headers. A six pin header can be connected to an FTDI cable or Sparkfun breakout board to provide USB power and communication to the board.
The Arduino Pro Mini is intended for semi-permanent installation in objects or exhibitions. The board comes without pre-mounted headers, allowing the use of various types of connectors or direct soldering of wires. The pin layout is compatible with the Arduino Mini.
There are two version of the Pro Mini. One runs at 3.3V and 8 MHz, the other at 5V and 16 MHz.
The Arduino Pro Mini was designed and is manufactured by SparkFun Electronics.

1.compatible Board. New.
2. ATmega328 running at 16MHz with external resonator (0.5% tolerance)
3. USB contion off board
4. Supports auto-reset
5. Max 150mA output
6. Over current protected
7. Reverse polarity protected
8. DC input 5V up to 12V
9. On board Power and Status LEDs
10. Size:Long33mm *wide118 mm *high6mm



Package Content:
1. Pro min atmega328p board
2. Pin Headers

SKU: 703 Category:
Brands

Voltage

Microcontroller ATmega328 *
Board Power Supply 3.35 -12 V (3.3V model) or 5 – 12 V (5V model)
Circuit Operating Voltage 3.3V or 5V (depending on model)
Digital I/O Pins 14
PWM Pins 6
UART 1
SPI 1
I2C 1
Analog Input Pins 6
External Interrupts 2
DC Current per I/O Pin 40 mA
Flash Memory 32KB of which 2 KB used by bootloader *
SRAM 2 KB *
EEPROM 1 KB *
Clock Speed 8 MHz (3.3V versions) or 16 MHz (5V versions)
