4 Lead NEMA 17 Stepper Motor 0.6A

Availablity:

In stock


Compare

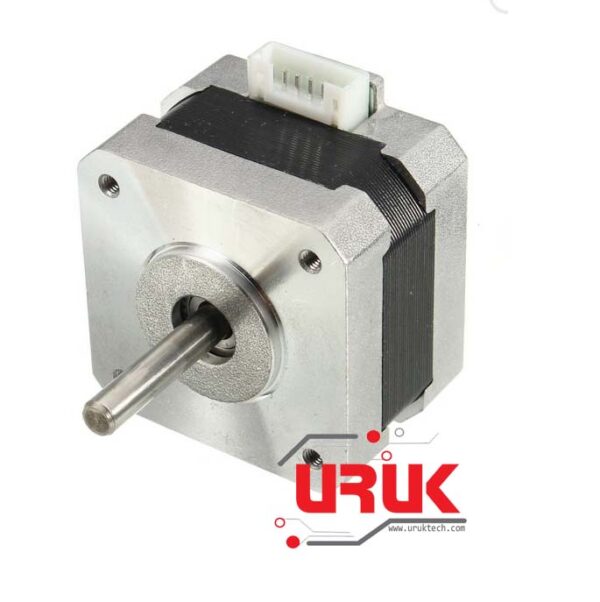

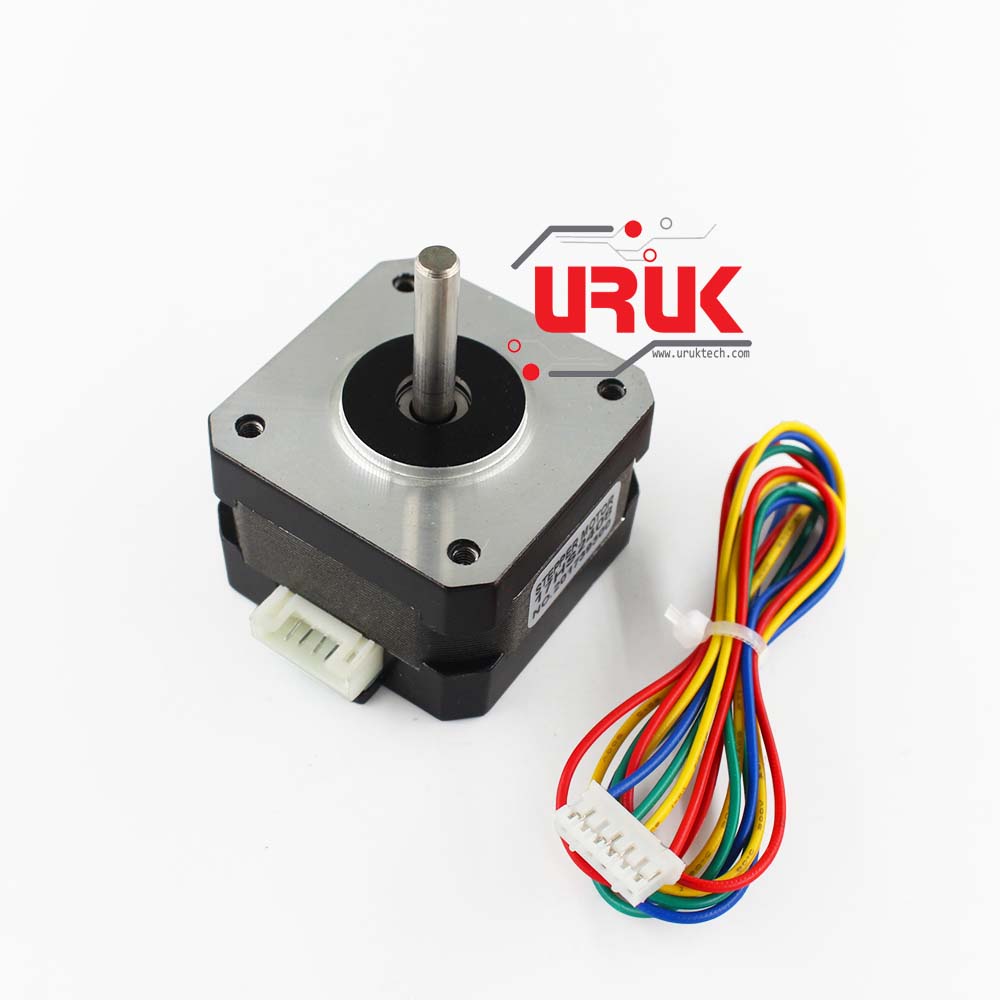

4-lead Nema 17 Stepper Motor 0.6A 42BYGH/17HS2408 for CNC & 3D Printer

19,500 IQD

In stock

4-lead Nema 17 Stepper Motor 0.6A 42BYGH/17HS2408 for CNC & 3D Printer

Features:
– Low noise and stable.
– Good accelerating performance.
– Durable and long service life.

Specifications:
– Model: 17HS2408
– Step torque angle: 1.8° (±5%)
– Current: 0.6A
– Resistance: 8Ω (±10%)
– Inductance: 10mH (±20%)
– Holding torque: 12N.cm
– Braking torque: 1.6N.cm
– Rotor inertia: 34g.cm²
– Number of lead: 4
– Length of motor: 28mm
– Length of wire: 375mm
– Shaft diameter: 5mm
– Length of shaft: 21mm
– Working temperature: -20 to 50℃
– Insulation resistance: 100MΩ 500V DC
– Electric strength: 820V AC/Min
– Radial clearance: 0.02Max (450 load)
– Axial clearance: 0.08Max (450 load)

Download datasheet

Package Includes:
1 x Nema 17 Stepper Motor
1 x Connection wire

SKU: 356-NEAM17 Categories: ,
Model 17HS2408
Step torque angle 1.8° (±5%)
Current 0.6A
Resistance 8Ω (±10%)
Inductance 10mH (±20%)
Holding torque 12N.cm
Braking torque 1.6N.cm
Rotor inertia 34g.cm²
Number of lead 4
Length of motor 28mm
Length of wire 375mm
Shaft diameter 5mm
Length of shaft 21mm
Working temperature -20 to 50℃
Insulation resistance 100MΩ 500V DC
Electric strength 820V AC/Min
Radial clearance 0.02Max (450 load)
Axial clearance 0.08Max (450 load)
