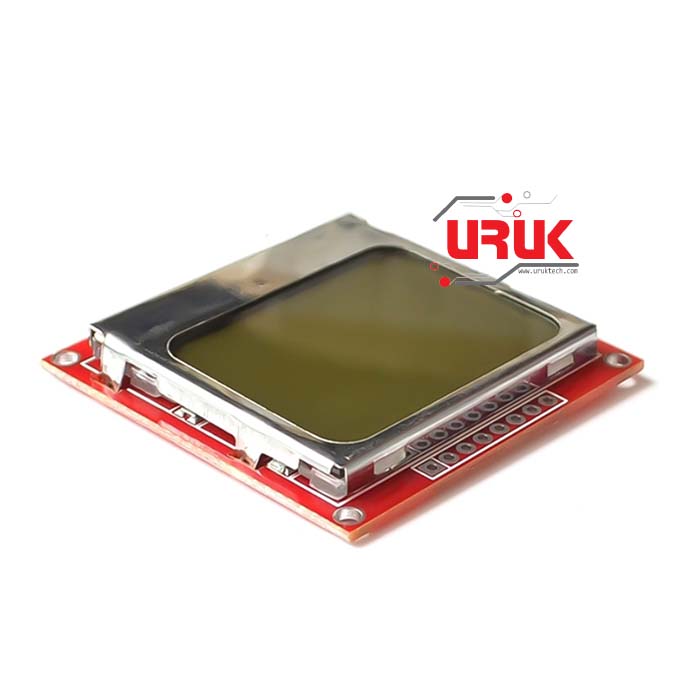

Nokia 5110 84×84 Dot matrix Graphic LCD Screen

Availability:

Out of stock


شاشة LCD بقدرة عرض 84×84  نقطة وهي ذات الشاشة المستخدمة في هاتف نوكيا Nokia 5110 يمكن استخدامها في جميع المشاريع والأجهزة لعرض مختلف المعلومات كالأحرف والأرقام والرمز والصور البسيطة والاشكال الهندسية والرسومات البسيطة. يمكن استخدامها لعمل العاب الكترونية او شاشة عرض تفاعلية.

5,500 د.ع 6,250 د.ع

Out of stock

Compare

Nokia 5110 84×84 Dot matrix Graphic LCD Screen

As the name suggests, this module was originally developed to be used with the iconic Nokia 5110 mobile phone. So, it can display alphanumeric characters, draw lines and other shapes and even displays a bitmap image. All this is possible because of its (84×48) monochrome pixels.
The module comes with the PCD8544 interface IC which makes this module easy to use with low-level microcontrollers. It communicates through SPI protocol and hence does not require more pins. The module also has a readily available library for Arduino which makes it ideal even for novice programmers.
So, if you are looking for a display that is better than the standard 16×2 LCD to showcase some decent graphics or custom characters then this display might be the right choice for you.



Features

  • Operating Voltage is 2.7V to 3.3V
  • Current consumption is 6mA
  • Consists of 84 rows and 84 columns (84×48) monochrome pixels
  • Works using SPI interface
  • Consists of Philips PCD8544 interface chip for easy interfacing
  • Can be easily interfaced with Arduino
  • Supports decent graphics of bitmap images
  • Available in Green and Blue Backlight



Specifications
Power supply voltage: 2.7V-3.3V.
Data interface level: 2.7-5V
Backlight power supply voltage: highest 3.3V
Module size: 43.6mm x 43.1mm (width X height)
Installation diameter: 2mm
Backlight: White



How to use Nokia 5110 Display Module
The Nokia 5110 module is commonly used with Arduino, but it can also be used with any microcontroller that supports SPI communication. The module works on 3.3V and hence all the pins are only 3.3V tolerant according to the datasheet. So, if you are using a 5V microcontroller (which most of us do) then it is recommended to use a logic level shifter like a potential divider to access the SPI pins of the display module.
The graphical LCD shown above is from spark fun, and hence you can find the soldering pad sets on both on top and to the bottom of the LCD of which we can use any desired set. However, you can also find many clones in the market with pads on only one side, but still, they have the same pinouts and same functionality, so you need not worry about the difference. All clones have the same dimensions (1.72’ × 1.72’) with 6 input pins.
You can easily interface Nokia 5110 module with Arduino by following the link and using the readily available libraries. If you are planning to interface with other microcontrollers, then you should read through the PCD8544 datasheet to know how to access its registers through SPI.



Applications

  • Can be used to display alphanumeric characters and bitmap images
  • Used in application where fancy graphics are required
  • Requires only a maximum of 5 pins to operate hence I/O friendly
  • Comes with a backlight and hence can be used even in darker environment
  • Can be used to create retro games using microcontrollers
  • Graphics are decent enough to create a basic UI



Documents:



Package Includes:
1 x Nokia 5110 84×84 Dot matrix Graphic LCD Screen

SKU: 640 Category: Tag:
  • Power supply voltage: 2.7V-3.3V.
  • Data interface level: 2.7-5V
  • Backlight power supply voltage: highest 3.3V
  • Module size: 43.6mm x 43.1mm (width X height)
  • Installation diameter: 2mm
  • Backlight: White
