Digital PC Based Oscilloscope (2 Channels/ 20MHz) USB Oscilloscopes Hantek 6022BE

159,000 IQD

In stock

Digital PC Based Oscilloscope (2 Channels/ 20MHz) USB Oscilloscopes Hantek 6022BE

Cost-effectiveness, 20MHz bandwidth 2CH scope, 48MSa/s sample rate, with 2pcs probes; Standard USBXI (TM) interface, easily inserts into USBXI (TM) housing to make up a combination instrument.

Features:
– Modern designed USB/PC Oscilloscope of 100% brand new Hantek 6000 series.

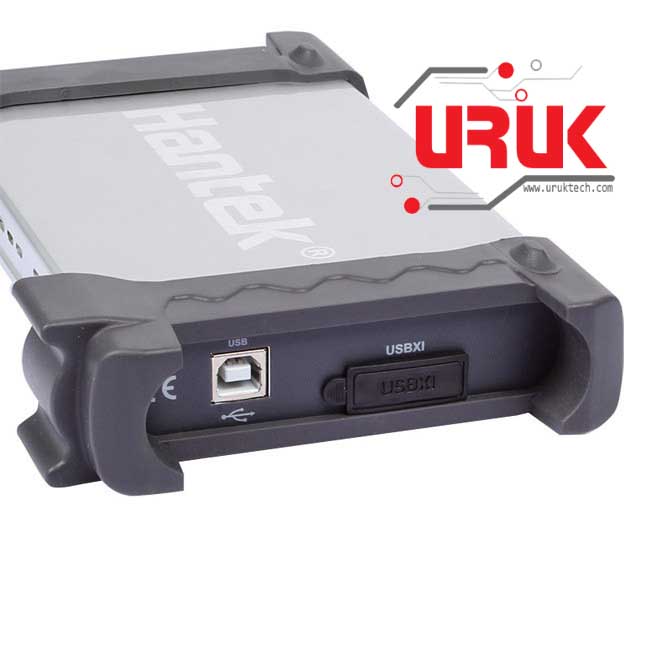

– Standard USBXITM interface, easily inserts into USBXITM housing to make up a combination instrument.

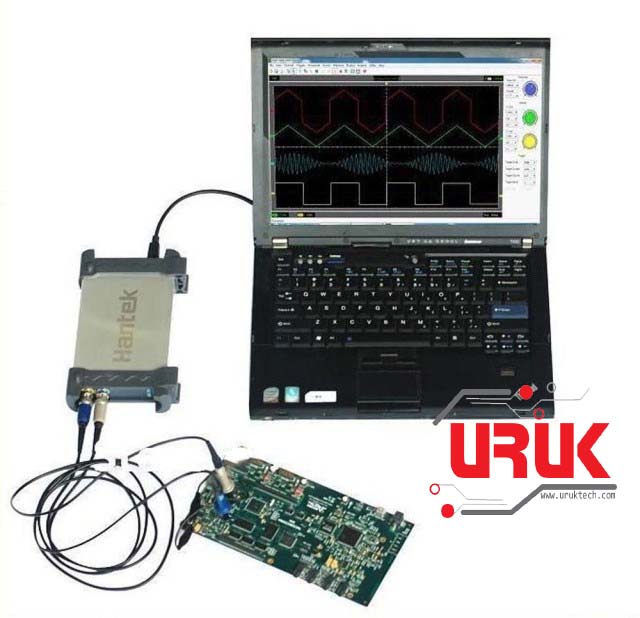

– USB2.0 interface, no external power source required, easy to use.
– Be suitable for notebook computer, product line maintenance, be used easily on business.
– Dimensions (mm):205(L) x120(W) x35(H), be carried easily.
– High performance, 48MS/s real-time sampling, 20MHz Bandwidth.
– Operating System: Windows 7, Windows NT, Windows 2000, Windows XP, VISTA.
– 23 measurement functions, PASS/FAIL Check, be suitable for technical application.

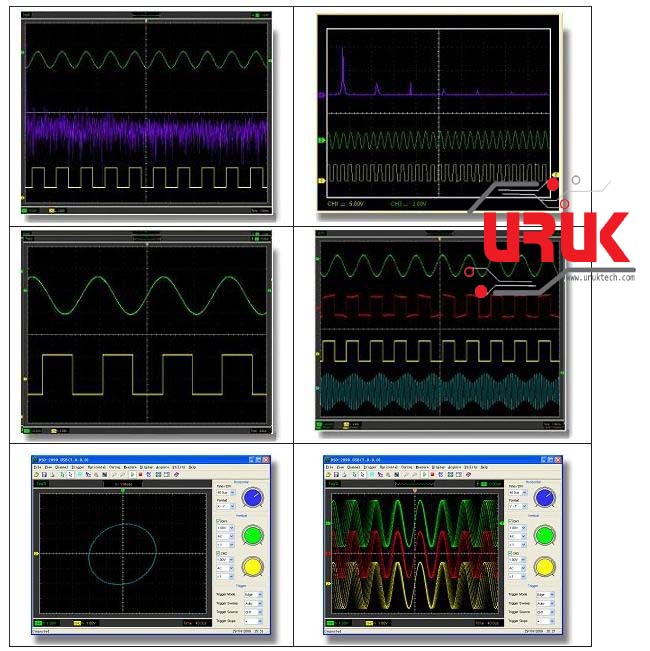

– Waveform average, persistence, intensity, invert, addition, subtraction, multiplication, division, X-Y plot.
– Save waveform in the following: text file, jpg/bmp graphic file, MS excel/word file.
– FFT
– One computer can connect many DSO, extend channel easily.
– LabView\VB\VC Second Design instance.

Software Support:
Windows 7, Windows NT, Windows 2000, Windows XP, VISTA, Windows 8, Windows 10.

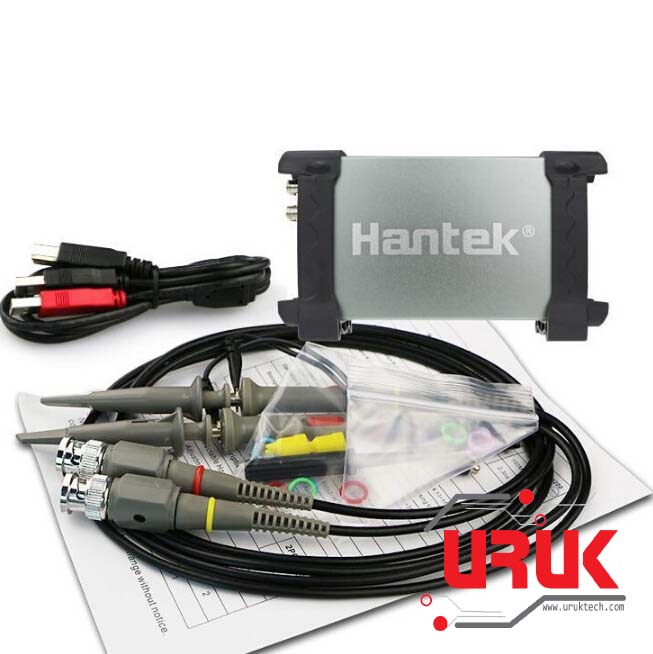

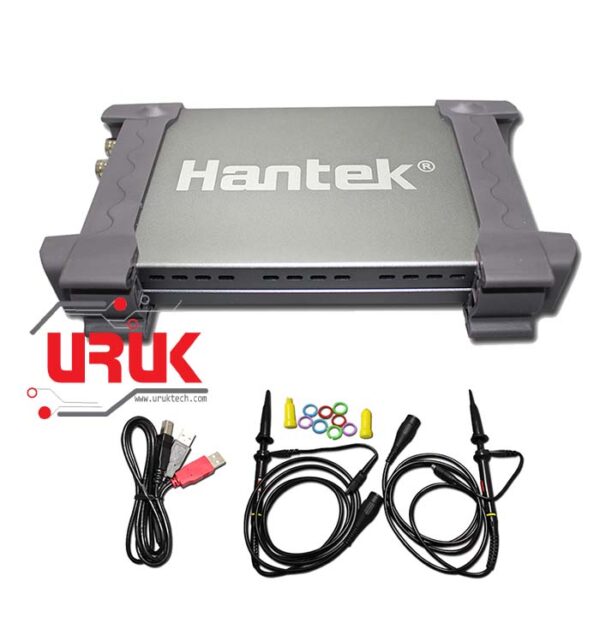

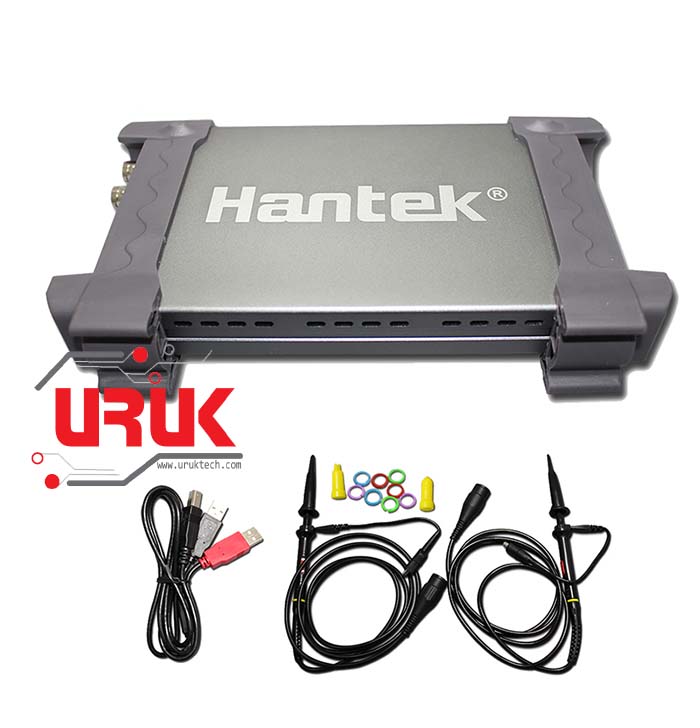

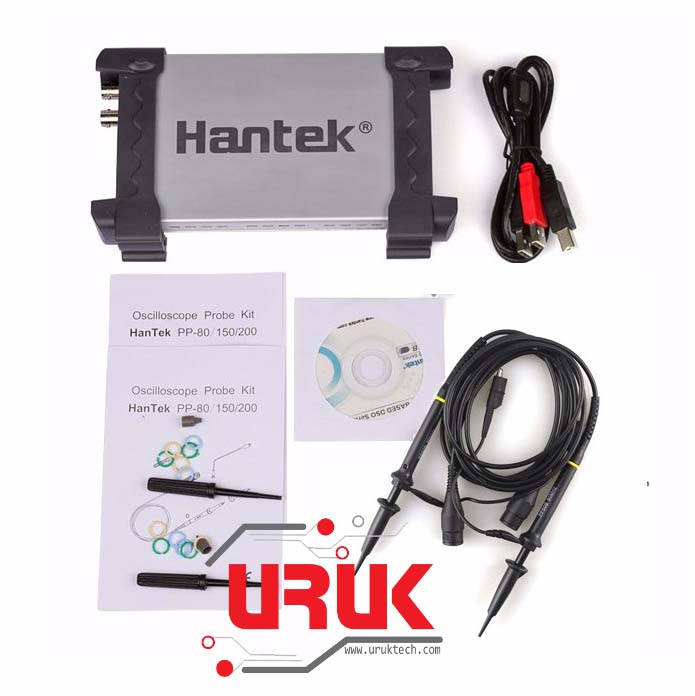

Package Includes:
1 x Oscilloscope
1 x USB Cable
1 x CD
2 x Probes
1 x User Manual (English)

Specification:

1. Characteristic
Cost-effectiveness; Excellent industrial design-the same anodised aluminum casing as iPad, which is not only beautiful and tasteful but also greatly enhanced the hardness of aluminum alloy surface, and has good heat resistance and strong wearability.
Standard USBXITM interface, easily inserts into USBXITM housing to make up a combination instrument.
USB2.0 interface, no external power source required, easy to use.
Be suitable for notebook computer, product line maintenance, be used easily on business.
Dimensions (mm):205(L) x120(W) x35(H), be carried easily.
High performance, 48MS/s real-time sampling, 20MHz Bandwidth,
Operating System: Windows 7, Windows NT, Windows 2000, Windows XP,VISTA.
23 measurement functions, PASS/FAIL Check, be suitable for technical application>
Waveform average, persistence, intensity, invert, addition, subtraction, multiplication, division, X-Y plot.
Save waveform in the following: text file, jpg/bmp graphic file, MS excel/word file.
FFT
One computer can connect many DSO, extend channel easily.
Labview\VB\VC\Delphi\C++Builder Second Design instance.

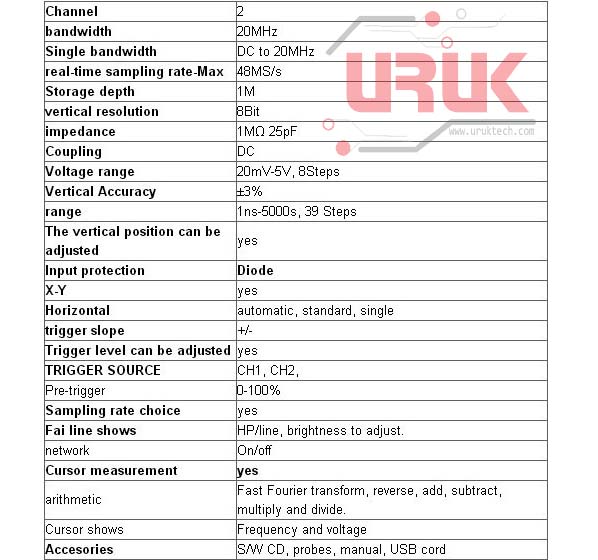

2. Hardware Specification
Channel 2 Channels
Bandwidth 20MHz
Input Impandence 1MΩ 25pF
Max. Sample rate 48MS/s
Vertical resolution 8Bit
Gain range 20mV-5V, 8Steps
DC accuracy ±3%
Timebase range 1ns-9000s, 39 Steps
Vertical adjustable Yes
Input protection Diode clamping
X-Y Yes
Trigger Mode Auto, Normal and Single
Trigger Slope +/-
Trigger level adjustable Yes
Trigger Type Rising edge, falling edge
Trigger Source CH1, CH2
Pre/Post trigger 0-100%
Sampling selection Yes
Waveform Display port/line, waveform average, persistence, intensity
Network Open/Close
Vertical mode CH1, CH2, Dual, ADD
Cursor measurement Yes
Math FFT, addition, subtraction, multiplication, division.
Cursor Frequency, Voltage
Accessories S/W CD, probes, manual, USB cord



3.Software
Operating system: Windows 7, Windows NT, Windows 2000,Windows XP, VISTA,Windows 8, Windows 10.



4.Second Design
Supply DEMO code (VC, CVI, VB, and LABVIEW) and technical support.
SKU: 285-OSCHANTK Category:
1. Characteristic
Cost-effectiveness; Excellent industrial design-the same anodised aluminum casing as iPad, which is not only beautiful and tasteful but also greatly enhanced the hardness of aluminum alloy surface, and has good heat resistance and strong wearability.
Standard USBXITM interface, easily inserts into USBXITM housing to make up a combination instrument.
USB2.0 interface, no external power source required, easy to use.
Be suitable for notebook computer, product line maintenance, be used easily on business.
Dimensions (mm):205(L) x120(W) x35(H), be carried easily.
High performance, 48MS/s real-time sampling, 20MHz Bandwidth,
Operating System: Windows 7, Windows NT, Windows 2000, Windows XP,VISTA.
23 measurement functions, PASS/FAIL Check, be suitable for technical application>
Waveform average, persistence, intensity, invert, addition, subtraction, multiplication, division, X-Y plot.
Save waveform in the following: text file, jpg/bmp graphic file, MS excel/word file.
FFT
One computer can connect many DSO, extend channel easily.
Labview\VB\VC\Delphi\C++Builder Second Design instance.



2. Hardware Specification
Channel 2 Channels
Bandwidth 20MHz
Input Impandence 1MΩ 25pF
Max. Sample rate 48MS/s
Vertical resolution 8Bit
Gain range 20mV-5V, 8Steps
DC accuracy ±3%
Timebase range 1ns-9000s, 39 Steps
Vertical adjustable Yes
Input protection Diode clamping
X-Y Yes
Trigger Mode Auto, Normal and Single
Trigger Slope +/-
Trigger level adjustable Yes
Trigger Type Rising edge, falling edge
Trigger Source CH1, CH2
Pre/Post trigger 0-100%
Sampling selection Yes
Waveform Display port/line, waveform average, persistence, intensity
Network Open/Close
Vertical mode CH1, CH2, Dual, ADD
Cursor measurement Yes
Math FFT, addition, subtraction, multiplication, division.
Cursor Frequency, Voltage
Accessories S/W CD, probes, manual, USB cord



3.Software
Operating system: Windows 7, Windows NT, Windows 2000, Windows XP, VISTA, Windows 8, Windows 10.



4.Second Design
Supply DEMO code (VC, CVI, VB, and LABVIEW) and technical support.
