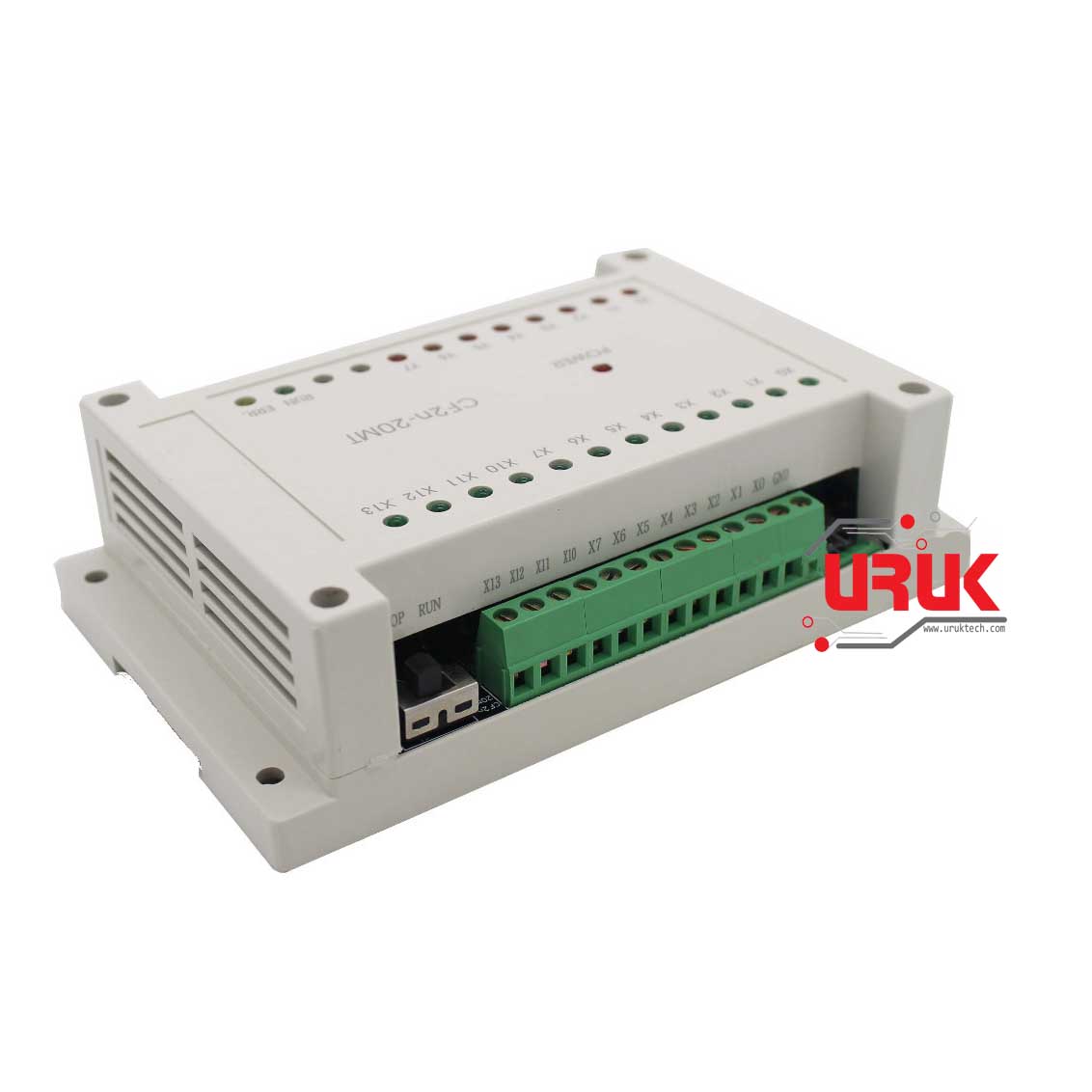

PLC Board Mitsubishi 12 Input 8 Output STM32 MCU

Availability:

In stock


Compare

بورد PLC نوع مسيوبيشي لتطوير أنظمة التحكم والانظمة المدمجة. يحتوي البورد على 12 مدخل و8 مخارج قابله للبرمجة مع دوائر الكترونية كاملة لتشغيل البورد على مشاريع عملية وصناعية. البورد يحتوي على منفذ للربط مع الكومبيوتر وكيبل خاص بذلك، وبرنامج البورد متوفر وبشكل مجاني.

129,000 ع.د

In stock

PLC Board Mitsubishi 12 Input 8 Output STM32 MCU

This PLC Board use industrial grade 32-bit CPU,it is  powerful, faster, more stable performance, special encryption make PLC that cannot be cracked.
Ladder diagram computer programming is flexible and convenient for you, (note: it only serial RS232 ports, no RS485 interface), and human-computer interface (touch screen text display) supporting the use of Confidential performance is good, the inside of the programming function cannot be copied, protect your plc system

Features:
– Power supply is DC24V.
– Support connecting HMI and Led text display.
– Supports encoder.

This product is high quality material, advanced design, reliable quality, compared with the other board has the following nine absolute advantage:

Advantage 1: The control panel adopts imported industrial grade 32 STM32CPU powerful, faster, more stable performance, special encryption makes PLC will not be cracked, even if the 32-bit chip hardware break cannot be achieved.
Advantage 2: Ladder computer programming flexibility, support Modbus protocol, with the man-machine interface (touch screen text display) supporting the use,
(1) RS no protocol communication (basic),
(2) Modbus RTU master and slave protocol (convenient support temperature controller, inverter communication),
(3) Modbus ASCII master-slave protocol.
Advantage 3: Good security performance, support for special encryption, encryption cannot be read out later, the market conventional crack FX series invalid password, which cannot be duplicated programming features to protect fruits of your labor.
Advantage 4: Support AB phase high-speed counter inputs, support Y0, Y1 speed output (transistor), support for acceleration and deceleration, with absolute positioning relative positioning.
Advantage 5: No software conversion, monitoring and regular direct download to download the same PLC
Advantage 6: Can be directly used Mitsubishi programming software GX Developer or GX Works2 programming, downloading, debugging, monitoring.
Advantage 7: With STM32 chip design, support 32-bit instructions, a long-term stable and reliable operation, and the maximum capacity of up to 8000 steps!

This product supporting the following functions:
Pulse input function (can be connected to the corresponding input phase encoder A.B counter C251)
Procedures, parameters, write capabilities comment
Procedures, parameters, annotated reading function
Procedures, parameters, annotation verification function
Computer monitoring function (easy to debug)
Device batch function
Device sign-on function
Device test function
Clear Memory function
Connect text feature (9600 baud, 7 data bits, parity bit, even parity (even), 1 stop bit)
Connecting a touch panel function (9600 baud, 7 data bits, parity bit, even parity (even), 1 stop bit)

Supports Command Sets:
The product currently supports the command set special software components:
M8000 (running monitoring contacts), M8001 (operation monitoring anti contact).
M8002 (initialize pulse contact), M8003 (initialize pulse counter-contact).
M8004 (error indication contacts).
M8011 (10 ms clock pulse), M8012 (100 msec clock pulse), M8013 (1 second clock pulse), M8014 (1 minute clock pulse).
M8020 (zero flag), M8021 (borrow flag), M8022 (carry flag).
M8029 (instruction execution completion flag).
M8033 (memory to maintain contact).
M8034 (disable output contacts).
More reference FX1N series.
Basic instructions: LD, LDI, AND, ANI, OR, ORI, OUT, (OUTT, OUTC), SET, RST, ANB, ORB, MPS, MRD, MPP, INV, LDP, LDF, ANDP, ANDF, ORP, ORF, RET, OUTM, SETM, RSTM, OUTS, SETS, RSTS, PLS, PLF, MC, MCR, PI, END
Step instructions: STL: support up to 8 parallel branches, number of different states can have a double coil.
Contact comparison instructions: LD> =, LD <=, LD>, LD <, LD <>, LD =, AND> =, AND <=, AND>, AND <, AND <>, AND =, OR> =, OR <=, OR>, OR <, OR <>, OR =.
Transmission and comparison instructions: MOV, CML, XCH, BCD, BIN, CMP, ZCP, FMOV.SMOV.BMOV.
Four arithmetic instructions: ADD, SUB, MUL, DIV, INC, DEC, WAND, WOR, WXOR, NEG.
Rotate instructions: SFTR, SFTL, SFWR, SFRD.
Data processing instructions: ZRST, DECO, ENCO.
Program flow instructions: CJ, CALL, SRET, IRET, EI, DI, FEND, WDT, FOR, NEXT.
Easy instructions: IST, ABSD, INCD, ALT, RAMP,
High-speed processing instruction: REF, REFF, MTR, HSCS, HSCR, SPD, PLSY, PWM, PLSR (two pulse output, Y0, Y1 mouth).
Peripheral I / O ports: DSW, SEGL, FROM, TO.
Peripherals SER instruction: RS, PRUN, ASCI, HEX, CCD, VRRD, VRSC, PID.
Positioning instruction: ABS, ZRN, PLSV, DRVI, DRVA.
Clock operation: TCMP, TZCP, TADD, TSUB, TRD, TWR, HOUR.

Support 32-bit instructions!
Device retentive range, this means the application is compatible with Mitsubishi FX1N,at present only two instructions does not be supported (HSCS, HSCR)

Special Soft Element:
M8000 (running monitoring contacts), M8001 (operation monitoring anti contact).
M8002 (initialize pulse contact), M8003 (initialize pulse counter-contact).
M8004 (error indication contacts).
M8011 (10 ms clock pulse), M8012 (100 msec clock pulse), M8013 (1 second clock pulse), M8014 (1 minute clock pulse).
M8020 (zero flag), M8021 (borrow flag), M8022 (carry flag).
M8029 (instruction execution completion flag).
M8033 (memory to maintain contact).
M8034 (disable output contacts).
M8200-M8203 (C200-C203 counting direction).
M8235 (C235 counting direction).
D8000 (watchdog timer set value).
D8012 (maximum scan time).
D8140 (Y0 pulse output count register)
D8142 (Y1 pulse output count register)

Download GX Developer software package

Package Includes:
1 x PLC Board
1 x USB to RS232 Cable
