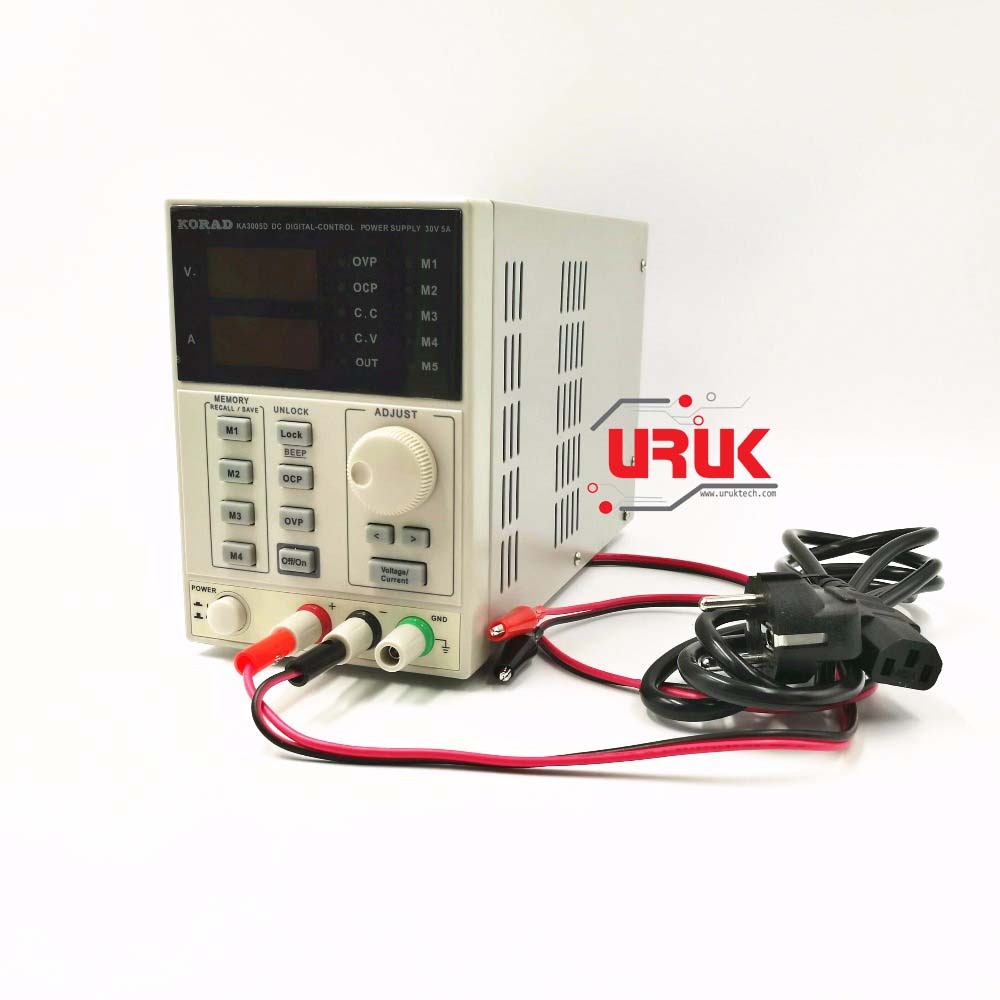

Digital DC Power Supply 30V/5A Adjustable with High Precision 0.01V 0.001A

Availability:

In stock


Compare

بور سبلاي مختبري رقمي بجودة عالية جداً، مجهز القدرة يجهز فولتية متغيره من 0 الى 30 فولت وبتيار من 0 الى 5 امبير يمكن التحكم بشكل رقمي بالفولتية والتيار بدقة عالية جدا تصل الى 0.01 بالنسبة للفولتية و0.001 بالنسبة للتيار. توجد خصائص اضافية بخزن اعدادات واختيارات الفولتية والتيار لخمس حالات مختلفة.

165,000 ع.د

In stock

Digital DC Power Supply 30V/5A Adjustable with High Precision 0.01V 0.001A

Features:
– Compact Design
– Dual 4 Digit LED Displays
– Digital Controls
– Output switch control
– 4 sets of parameters can be stored inside for fast recall
– Keyboard Lock to prevent accidental changing of set parameters
– Circuit protection for over load, short circuit and over temperature.
– Automatic switching between mA and A display
– Quiet variable speed fan

Operating Conditions:
– Input voltage: 220V +/-10%
– Frequency range: 50- 60Hz
– Operating temperature: 32-104 F (0-40)
– Operating humidity: < 80%RH
– Storage temperature: 32-158 F (0-70)
– Storage humidity: < 70%RH

Stable Voltage:
– Output Voltage Range: 0-30V Continuously adjustable
– Setup Resolution: 10 mV
– Setup Accuracy: <0.05% +20 mV
– Ripple: < 1mVRMS
– Read back Accuracy: 10 mV
– Temp. Coefficient: < 0.1% + 10mV
– Read back temp. Coefficient: < 100 ppm+10 mV

Stable Current:
– Output Current Range: 0-5A continuously adjustable
– Setup Resolution: 1 mA
– Setup Accuracy: <0.1% +3 mA
 Ripple: < 3mARMS
– Read back Accuracy: 1 mA
– Temp. Coefficient: < 0.1% + 5mA
– Read back temp. Coefficient: < 100 ppm+5 mA
– Weight: 4.3 Kg
– Dimensions: 110 x 156 x 260mm

Package Includes:
1 x Digital DC Power Supply 30V/5A

SKU: 417 Category:
  • Input voltage: 220V +/-10%
  • Frequency range: 50- 60Hz
  • Operating temperature: 32-104 F (0-40)
  • Operating humidity: < 80%RH
  • Storage temperature: 32-158 F (0-70)
  • Storage humidity: < 70%RH
