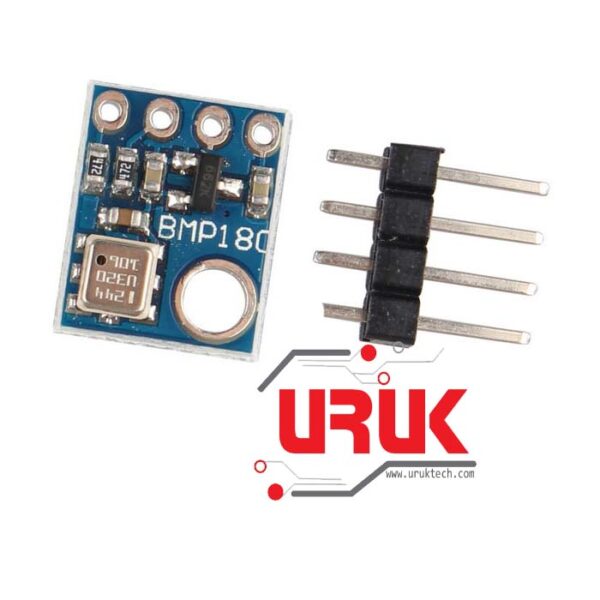

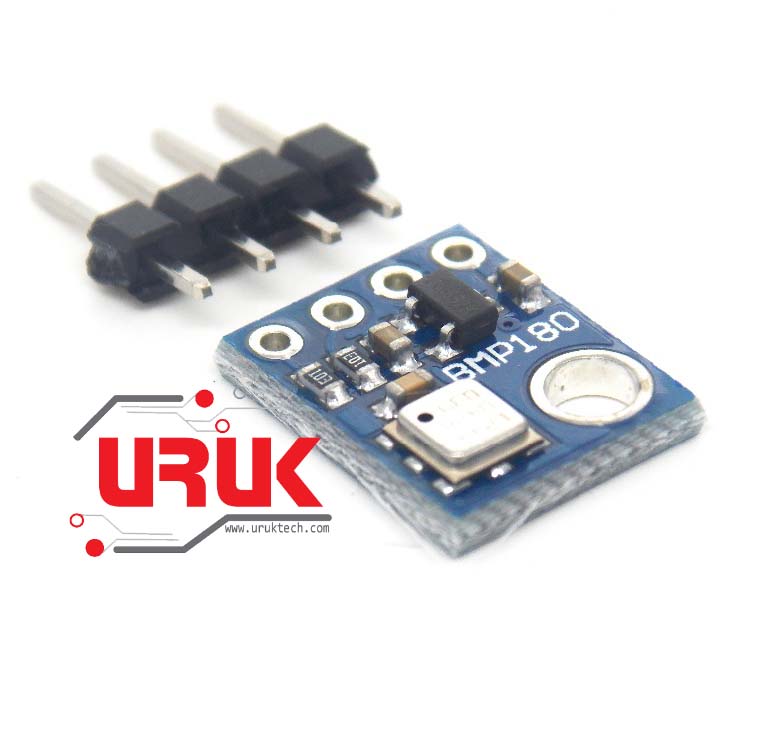

Pressure Sensor Module GY-68 BMP180

BMP180 is a high Precision Pressure sensor, small size, low power consumption, and can be used in mobile devices. Its excellent performance, the absolute Precision Minimum reach 0.03h Pa And very low power consumption, only3μA BMP180. Using powerful8-pinCeramic Leadless chip carrying capacity (LCC) Ultra-thin package, you canI2CBus connects directly with a variety of microprocessor. The BMP180 comes fully calibrated and ready to use. As the device operates over I2C we’ve added optional I2C pull ups that can be enabled using the PU (pull up) jumper on the board for your convenience and ease during bread boarding.

Features:
– Pressure range: 300~1100hPa (Elevation 9000m ~ 500m)
– Power supply voltage: 1.8V~3.6V (VDDA), 1.62V~3.6V (VDDD)
– Very low noise: up to 0.02hPa (17cm)
– Low power consumption: 0.5uA at 1Hz
– Max I2C Speed: 3.5MHz
– LCC8 Package: lead-free ceramic package (LCC)
– Size: 3.6mmx3.8×0.93mm
– Low power consumption: 5μAIn standard mode
– High Precision Low power consumption mode at a resolution of 0.06hPa (0.5 Here meters)
– High linearity mode at a resolution of 0.03hPa (0.25Here meters)
– With temperature output -40 to +85°C operational range, +-2°C temperature accuracy
– I2C nterface
– Temperature compensation
– Lead-free, in line with the RoHS Specifications
– Response time: 7.5ms
– Standby current: 0.1μA
– No external clock circuit

Typical Applications:
– GPS Precise navigation (reckoning, bridge testing, etc)
– Indoor and outdoor navigation
– Leisure, sport and health monitoring
– Weather forecast
– Vertical speed indicator (rose/Sinking speed(

Package Includes:
1 x Pressure Sensor Module GY-68

SKU: 191-GY68 Category:
  • Pressure range: 300~1100hPa (Elevation 9000m ~ 500m)
  • Power supply voltage: 1.8V~3.6V (VDDA), 1.62V~3.6V (VDDD)
  • Very low noise: up to 0.02hPa (17cm)
  • Low power consumption: 0.5uA at 1Hz
  • Max I2C Speed: 3.5MHz
  • LCC8 Package: lead-free ceramic package (LCC)
  • Size: 3.6mmx3.8×0.93mm
  • Low power consumption: 5μAIn standard mode
  • High Precision Low power consumption mode at a resolution of 0.06hPa (0.5 Here meters)
  • High linearity mode at a resolution of 0.03hPa (0.25Here meters)
  • With temperature output -40 to +85°C operational range, +-2°C temperature accuracy
  • I2C nterface
  • Temperature compensation
  • Lead-free, in line with the RoHS Specifications
  • Response time: 7.5ms
  • Standby current: 0.1μA
  • No external clock circuit
