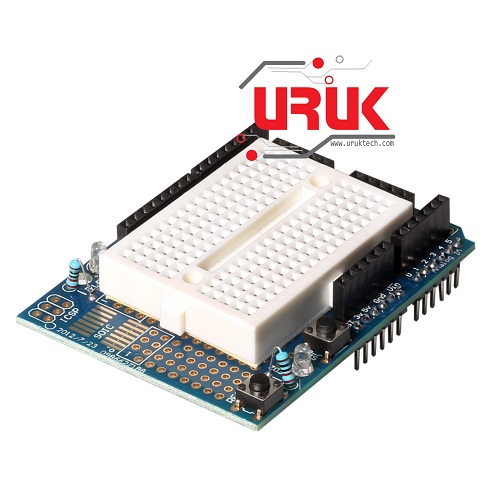

Proto Shield for Arduino ProtoShield V.5 + Mini 170 point Breadboard

5,750 IQD

In stock

8,250 IQD for 2 item(s)

Proto Shield for Arduino ProtoShield V.5 + Mini 170 point Breadboard

Works with the Uno! This prototyping shield is the best out there (well, we think so, at least). It works with UNO, NG, Diecimila and Duemilanove Arduinos. You can use it with a Leonardo but it will not break out the hardware SPI pins (they’re only on the ISP connector underneath) or the IOREF/SDA/SCL pins. However, the SDA/SCL pins on the Leonardo are also on digital #2 and #3 so you can still use them by connecting to #2 and #3.

Features:
– It has a nice standard 0.1″x0.1″ prototying grid with big pads
– A IC pattern for adding DIP ICs up to 20 pins
– Power rails down the middle and sides
– A reset button and an extra general use button
– 2x3mm general use LEDs, red and green, as well as 2 matching resistors
– The ICSP header is up top if you like to upload to your Arduino using a programmer
– A surface-mount chip area for up to 14 SOIC size parts
– Compatible with either tiny breadboards or ‘standard’ breadboards with the rails removed.
– Every pin is brought out, including the new 3V and Reset header pins
– 2×0.1uF capacitors on either side for extra power stability

Package Included:
– Prototype Shield Protoshield V.5 Expansion Board
– 170 Point Mini Bread Board

Brands

  • Arduino Prototype Shield:
  • The small soldering area
  • Access to a BlueSMiRF socket for wireless communication between Arduinos
  • 2 general LEDs
  • 1 general pushbutton switch
  • 1 Arduino reset switch brought to top level
  • 5V, GND and Raw pins are exposed as well
  • All Arduino pins are brought to the top level
  • Mini Breadboard:
  • 170 tie points
  • Self-adhesive backing to stick on the Arduino Prototype Shield
  • Size: 1.7″ x 1.3″
  • Dimensions: 2.68 in x 2.13 in x 0.47 in (6.8 cm x 5.4 cm x 1.2 cm)
  • Weight: 1.23 oz (35 g)
