15V Positive Voltage Regulators IC L7815

Availability:

In stock


 منظم فولتية موجبة L7815 (روكليتر) 15V وبقدرة تيار قدرها 1.5 امبير

750 ع.د

In stock

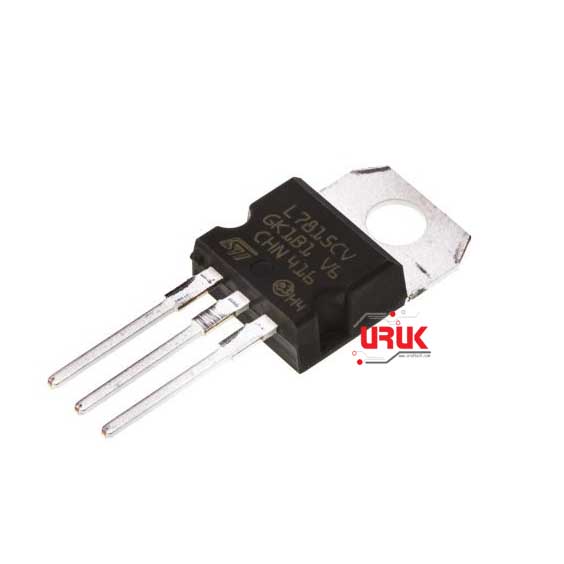

15V Positive Voltage Regulators IC L7815

The L7815CV is a three-terminal positive voltage regulator. This regulator can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. It employs internal current limiting, thermal shut-down and safe area protection, making it essentially indestructible.

Specifications:
Mount: Through Hole
Accuracy: 2 %
Dropout Voltage: 2 V
Max Input Voltage: 35 V
Max Operating Temperature: 125 °C
Max Output Current: 1.5 A
Min Input Voltage: 17 V
Min Operating Temperature: 0 °C
Min Output Voltage: 15 V
Nominal Output Voltage: 15 V
Number of Outputs: 1
Output Configuration: Positive
Output Current: 1.5 A
Output Type: Fixed
Polarity: Positive
Power Supply Rejection Ratio (PSRR): 54 dB
Quiescent Current: 8 mA
Tolerance: 5 %
Height: 9.15 mm
Length: 10.4 mm
Width: 4.6 mm

See the datasheet

Package Includes:
1 x IC L7815

SKU: 997 Categories: ,
  • Mount: Through Hole
  • Accuracy: 2 %
  • Dropout Voltage: 2 V
  • Max Input Voltage: 35 V
  • Max Operating Temperature: 125 °C
  • Max Output Current: 1.5 A
  • Min Input Voltage: 17 V
  • Min Operating Temperature: 0 °C
  • Min Output Voltage: 15 V
  • Nominal Output Voltage: 15 V
  • Number of Outputs: 1
  • Output Configuration: Positive
  • Output Current: 1.5 A
  • Output Type: Fixed
  • Polarity: Positive
  • Power Supply Rejection Ratio (PSRR): 54 dB
  • Quiescent Current: 8 mA
  • Tolerance: 5 %
  • Height: 9.15 mm
  • Length: 10.4 mm
  • Width: 4.6 mm
