RFID 13.56 MHz Kit with Tags

(1 customer review)
Availability:

In stock


كت RFID يحتوي على قاريء وبطاقة وتاكَ (مدالية مفاتيح) يستخدم الكت في العديد من مشاريع الحماية والتعريف بقطع معينه عبر ربطه وبرمجته مع اي متحكم عبر بروتوكول الـSPI بالاخص مع الاردوينو لوجود مكتبات جاهزة توفر الكثير عن التعامل معه.

4,000 د.ع 4,750 د.ع

In stock

Compare

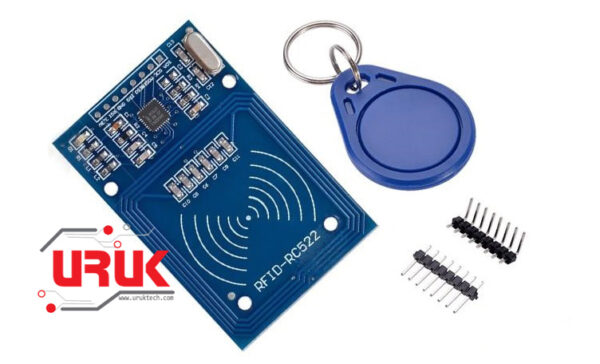

RFID module RC522 Kit S50 13.56 Mhz 6cm With Tags

MF RC522 is a highly integrated transmission module for contactless communication at 13.56 MHz.
This transmission module utilises an outstanding modulation and demodulation concept completely integrated for different kinds of contactless communication methods and protocols at 13.56 MHz.

Package Included:
– RC522 Module x 1
– Tag Card x 1
– Blue Tag Module x1
– Pin header x 2

SKU: 27 Categories: , Tag:
  • Module Name: MF522-ED
  • Working current:13-26mA/ DC 3.3V
  • Standby current:10-13mA/DC 3.3V
  • Sleeping current:<80uA
  • Peak current:<30mA
  • Working frequency:13.56MHz
  • Card reading distance :0~60mm(mifare1 card)
  • Protocol:SPI
  • Data communication speed:Maximum 10Mbit/s
  • Card types supported:mifare1 S50、mifare1 S70、mifare UltraLight、mifare Pro、mifare Desfir

Based on 1 review

2.0 overall
0
0
0
1
0

Only logged in customers who have purchased this product may leave a review.

  1. Ravyar Sarbast (verified owner)

    easily manage to get it to work, but very fragile, it will die soon
