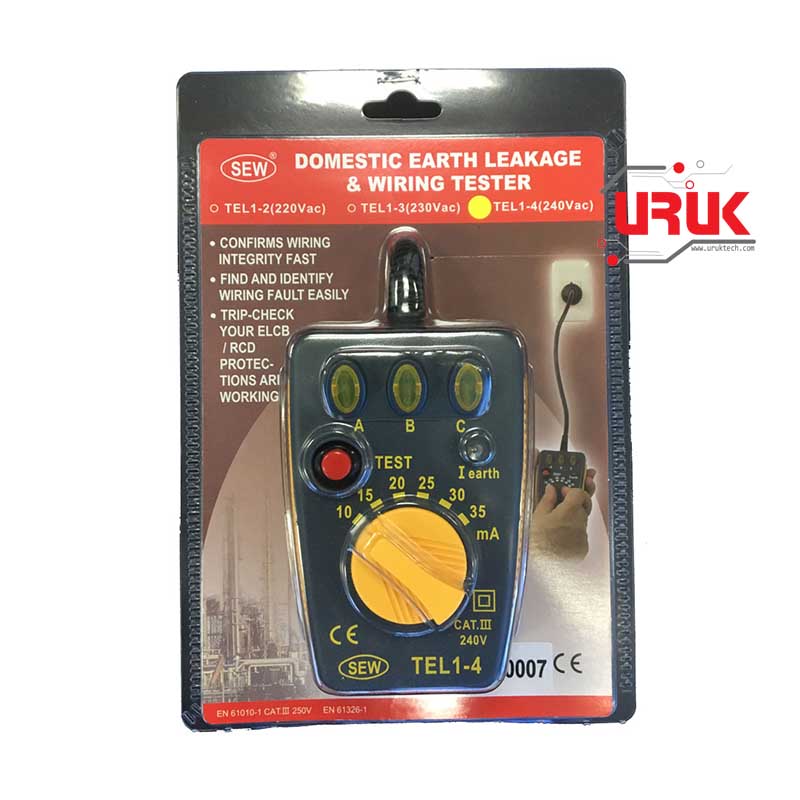

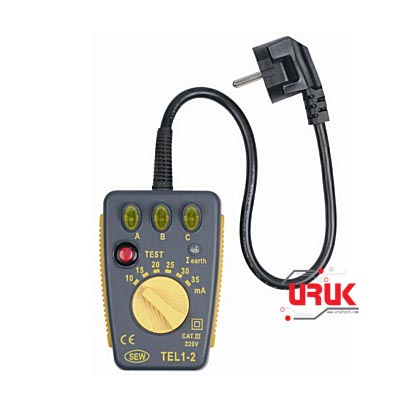

Domestic Earth Leakage & Wiring Tester 220V 50Hz
– Wiring condition test: An internal circuitry test for wiring condition and report onto the neon lamps. Please note that short circuit between Neutral and earth can not be detected by this circuitry.
– ELCB/RCD Test: The TEL-1 has been designed to test domestic leakage detecting circuit breakers. For this reason, current from 10mA up to 35mA is generated. This can also be utilized for fault finding standing leakage faults after having check integrity of the breaker itself.
– Neon Lamps Reporting: These high bright neon lamps are reporting the wiring condition detected by the circuitry. Always refer to the condition table to check that wiring is correct or not.
Nominal Voltage System: 220V
System Voltage Frequency: 50-60Hz
Wiring Check Accuracy: Table Valid for Voltage within 5% of nominal voltage. If voltage differs from Nominal Voltage System by more than 5%, table may be incorrect.
Earth / Ground Current Simulator Accuracy: Current is set by Selected Resistors and therefore Proportional to Voltage. Resistance Accuracy is 10% Maximum.
Overall Rating: Intermittent Rated (Press TEST Shortly). DO NOT KEEP PRESSING TEST.
Resistance Rating: Current Injection System uses Resistors which are Not Continuously Rated.
Case Material: ABS
Safety Standard: EN 61010-1, EN 61326-1
Weight: Approx. 190 g
Dimension: Body 75(L)x110(W)x49(D) mm
Wire length: 40 cm
1 x Domestic Earth Leakage & Wiring Tester
