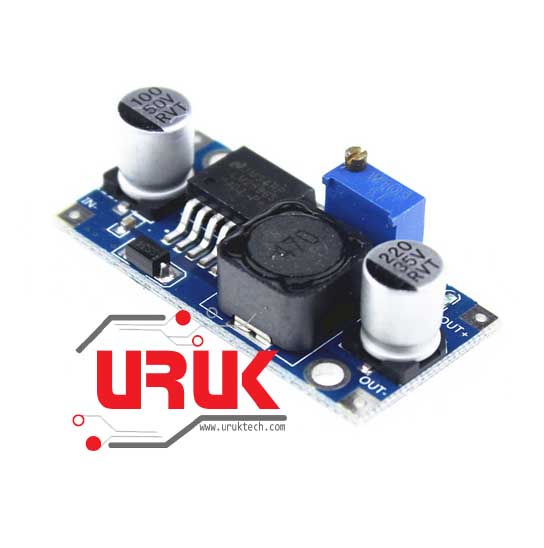

Step Down Adjustable Converter Module DC-DC 3V-40V LM2596

Availablity:

In stock


Compare

Step Down Adjustable Converter Module DC-DC 3V-40V LM2596

4,750 IQD

In stock

Step Down Adjustable Converter Module DC-DC 3V-40V LM2596

Features:
Conversion efficiency: Up to 92% (output voltage higher, the higher the efficiency)
Switching Frequency: 150KHz
Rectifier: Non-Synchronous Rectification
Module Properties: Non-isolated step-down module (buck)
Short circuit protection: current limiting, since the recovery
Operating temperature: Industrial grade (-40 to +85 ) (output power 10W or less)
Full load temperature rise: 40
Load regulation: 0.5%
Voltage regulation: 2.5%
Dynamic response speed: 5% 200uS
Input voltage: 3-40V
Output voltage: 1.5-35V (Adjustable)
Output current: Rated current is 2A, maximum 3A(Additional heatsink is required)
Dimension: 45x20x14mm (LxWxH)

Rectification mode Synchronous rectifier
Output voltage 1.23V-30V
Conversion efficiency 92%( highest )
Output ripple 30mV( maximum )
Voltage regulation ± 2.5%
Overall dimension 48*23*14mm(L*W*H)
Module property Non-isolation buck
Input voltage 4V-35V
Input current 3A (maximum)
Switching frequency 150KHz
Load regulation ±0.5%
Work temperature -40 C To +85 C

Package Includes:
1 x LM2596 Step down Adjustable Converter Module

SKU: 130-STEPDWN Categories: ,
Rectification mode Synchronous rectifier
Output voltage 1.23V-30V
Conversion efficiency 92%( highest )
Output ripple 30mV( maximum )
Voltage regulation ± 2.5%
Overall dimension 48*23*14mm(L*W*H)
Module property Non-isolation buck
Input voltage 4V-35V
Input current 3A (maximum)
Switching frequency 150KHz
Load regulation ±0.5%
Work temperature -40 C To +85 C
