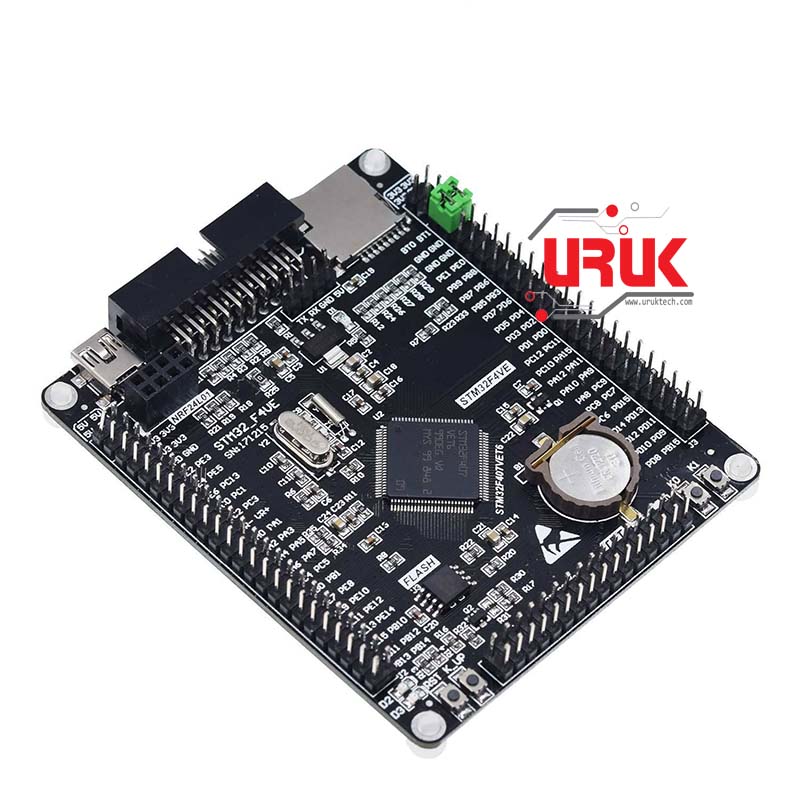

STM32F407VET6 Development Board Cortex-M4

It is a small STM32 development board that features an STM32F407VET6 device as the microcontroller, supports further expansion. It is ideal for starting application development with STM32F family. It Arduino IDE compatible, where it could be programmed using the same IDE for programming Arduino boards.

Features:

• Onboard  SD card slot.
• Wireless Communication: NRF2401 Interface.
• W25Q16 Data storage.
• Support FMSC LCD Interface.
• Multi-user keys.
• All the CPU-10 lead.
• Arduino IDE compatible.
• 2.54mm integer multiples spacing pin.

Specifications:

• Core: Cortex-M4 32-bit RISC.
• Feature a full set of single-cycle DSP instructions.
• Operating Frequency: 168MHz, 210 DMIPS/1.25 DMIPS/MHz.
• Operating Voltage: 1.8V-3.6V.
• Storage Resources: 512kB Flash, 192+4kB SRAM.
• RTC Battery: CR1220
• 3 X SPI, 3 X USART
• 2 X UART
• 2 X I2S, 3 X I2C
• 1 X FSMC, 1 X SDIO, 2 X CAN
• 1 X USB 2.0 FS / HS controller (with dedicated DMA)
• 1 X USB HS ULPI (for external USB HS PHY)
• 1 X 10/100 Ethernet for MAC
• 1 X 8 to 12-bit parallel camera interface
• 3 X AD (12 Wei, 1us, sharing 24), 2 X DA (12-bit)

Package Includes:
1 x STM32 Cortex-M4 STM32F407VET6 Development Board
