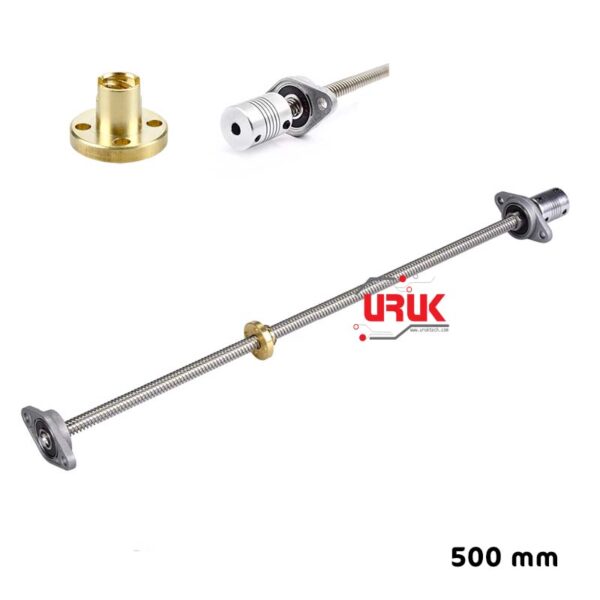

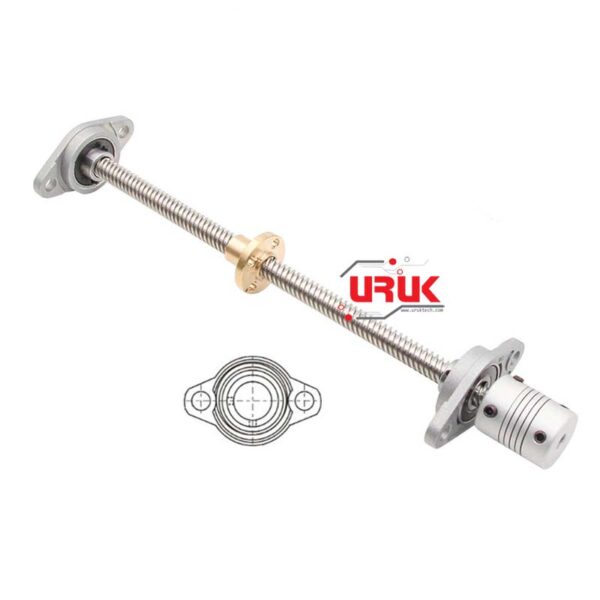

T8 Lead Screw 500/8mm with Nut, Bearing Bracket, and Flexible Coupling

Availability:

In stock


شفت ناقل حركة لولبي (برغي) بطول 50سم مع كافة ملحقاته (قواعد التثبيت) يربط مع ماطور ستيبر او اي ماطور اخر خاص لمشاريع واجهزة الـ CNC والطابعات الثلاثية الأبعاد والمشاريع الميكانيكية الاخرى. الشفت مصنوع من الستانليس ستيل والقطعة المنقولة عن طريق الشفت مصنوعة من البراص، قواعد التثبيت مصنعة من خليط الزنك، اما مفصل الربط مع الماطور مصنوع من الالمنيوم.

27,000 د.ع

In stock

Compare

T8 Lead Screw 500/8mm with Nut, Bearing Bracket, and Flexible Coupling

Features:
– Screw mainly used in stepper motor, Machine Tool, and other equipment.
– Screw without processing, direct connected to bearing. Lead screw was PVC tube packaging.
– Suitable for Industrial automation equipment, stepper motor rails; such as 3D printers; engraving machine; XYZ module; slider; lifts etc.

Specifications:

Lead screw:
– Material: stainless steel
– Diameter: 8mm
– Pitch: 2mm
– Lead: 4
– Total Length: 500mm

Screw nut:
– Diameter: 8mm
– Pitch: 2mm
– Lead: 4

Mounted ball bearing:
– Material: zinc alloy
– Bore diameter: 5mm
– Hole diameter: 8mm

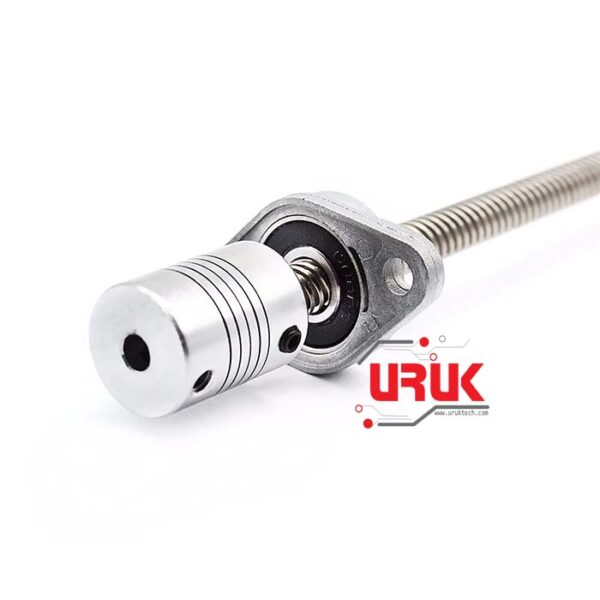

Shaft coupling:
– Material: aluminum
– Shaft: 6.35 x 8mm
– Length: 24mm
– Diameter: 18mm

How to install:
1. Put screw nut into the Lead screw
2. Then the 2 Mounted ball bearing separately install at both ends of the Lead screw
3. According to the size of you need to adjust the distance between the nut and Mounted ball bearing
4. Put shaft coupling into the Lead screw beside the Mounted ball bearing

Package Includes:
1 x Lead screw
1 x Screw nut
2 x Mounted ball bearing
1 x Shaft coupling
