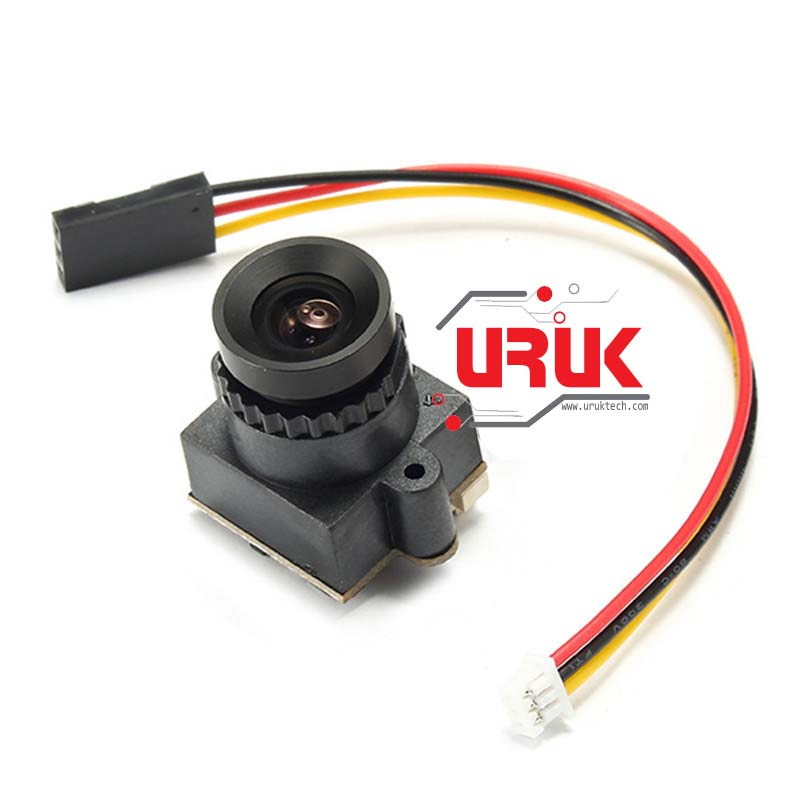

Digital Camera 2.8mm 3MP FPV-1000TVL N/P Pattern

27,000 IQD

In stock

Digital Camera 2.8mm 3MP FPV-1000TVL N/P Pattern

HD FPV camera, the definition of 1000 lines, low Illumination, the effect is good, quality assured, ultra small size, very suitable for FPV Application of special industry.
This camera is tailored for FPV, dedicated to FPV HD aerial camera, micro ultra-light design, image clear and delicate, high definition, Color fidelity, low illumination, 5V power supply, micro power consumption

Features:
– Working voltage range: 4.5V-6V DC
– Angel: 90°

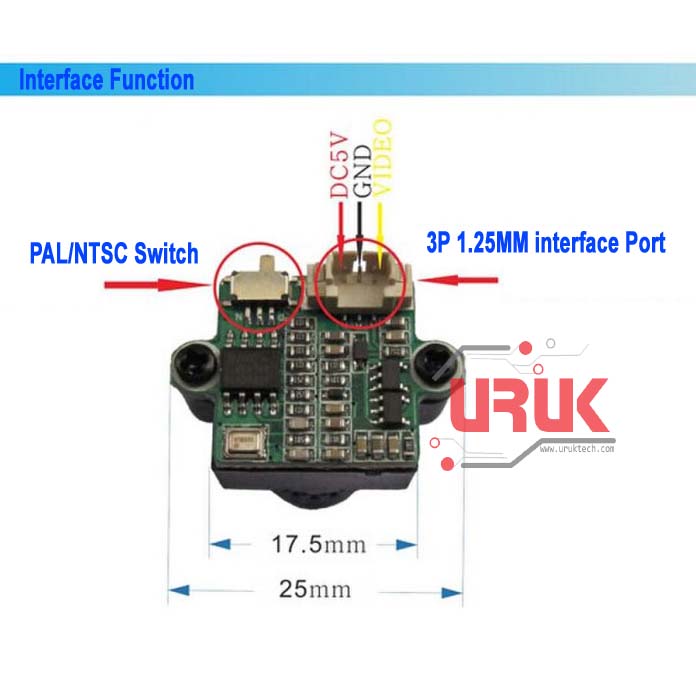

– TV standard: N system, P system, a key switch;
– With 1/3” CMOS sensor
– Super lightweight, ultra-low power consumption, suitable for RC Quadcoter and Robots
– 1000TVL definition, high-quality video, low RF interference

Specifications:
– Item Name: 1000TVL HD 2.8MM 3MP 1/3 CMOS Mini FPV Camera
– Input Voltage: FPV 3.5-5V
– Power Consumption: [email protected] 5v
– Lux: 0.05Lux/ F1.2
– Sensor: 1/3 “CMOS
– Format: NTSC/PAL(Free switch)
– Resolution: 1000TVL

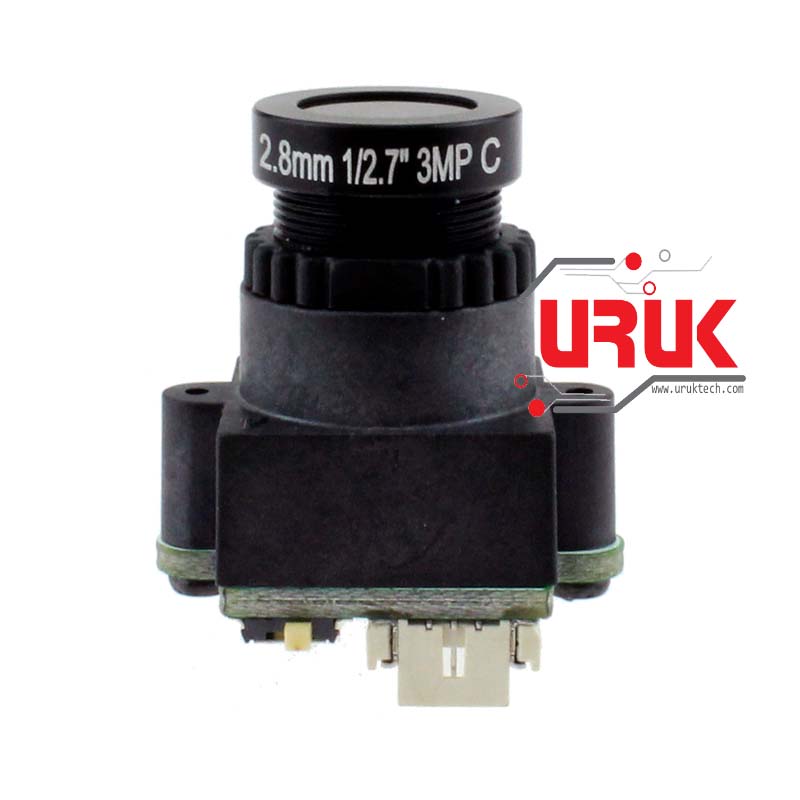

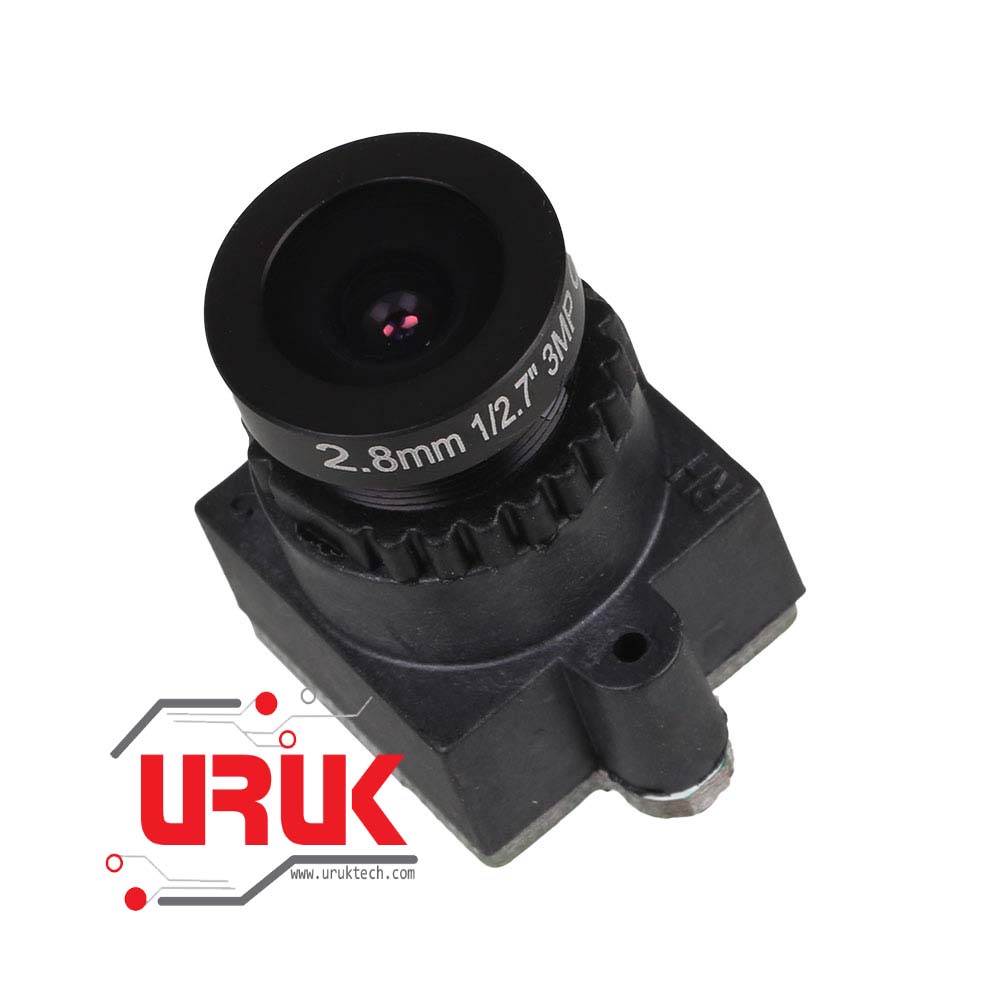

– Lens:2.8mm
– S/N Ratio: ≥50db
– Gama Correction: 0.45
– White Balance: Automatic
– Video Output: 1.0Vp-P75Ω
– Working temperature: -20 to 60°C
– Working Current: 135mA
– Cable Length: 210mm
– Weight: 9.5g

Package Includes:
1x 1000TVL Camera
1x Cable

SKU: 288-TVL1000 Category: Tag:
  • Item Name: 1000TVL HD 2.8MM 3MP 1/3 CMOS Mini FPV Camera
  • Input Voltage: FPV 3.5-5V
  • Power Consumption: [email protected] 5v
  • Lux: 0.05Lux/ F1.2
  • Sensor: 1/3 “CMOS
  • Format: NTSC/PAL(Free switch)
  • Resolution: 1000TVL
  • Lens:2.8mm
  • S/N Ratio: ≥50db
  • Gama Correction: 0.45
  • White Balance: Automatic
  • Video Output: 1.0Vp-P75Ω
  • Working temperature: -20 to 60°C
  • Working Current: 135mA
  • Cable Length: 210mm
  • Weight: 9.5g
