UPS 5V-12V to 12V 1A Uninterrupted Supply and Charging Module

Availability:

In stock


بورد بمزايا ممتازة، يعمل كــ UPS وكارت شحن في نفس الوقت لتجهزي فولتية DC قدرها 12 فولت وبتيار 1 امبير مستقرة لا تتغير عند انقطاع المصدر الرئيسي والذي ممكن ان يكون 5 الى 12 فولت والمصدر عند الانقطاع هو بطارية او عدة بطاريات نوع ليثيوم. يقوم البورد برفع الفولتية الى 12 فولت وتجهزيها ويمتاز ايضاً بإمكانية شحن البطارية ليمثل حل متكامل في حال وجود احتياط لنظام UPS متكامل لأداره الفولتية وشحن البطاريات. يستخدم في العديد من التطبيقات مثل تجهز القدرة والأجهزة المتنقلة او الأجهزة الطبية وغيرها من المشاريع. يوجد مكان مخصص في البورد لربط LED بلونين والحصول على دلالة الشحن، والتشغيل، وامتلاء البطاريات، وغيرها.

8,750 د.ع

In stock

Compare

UPS 5V-12V to 12V 1A Uninterrupted Supply and Charging Module

It is a UPS uninterruptible power supply control board with charging features, it supplies 12V continuously from 5-12V input and lithium batteries.



Features:

  • Support charging and discharging at the same time
  • Large current
  • Small size
  • High efficiency
  • Support short circuit protection



Specifications:
Product Type: UPS and Voltage Converter Module
Input Voltage: DC 5.0V-12.0V
Output Voltage: DC 12.0V
Output Current: 1 A
Output Power: 12W
Support Battery: 3.7V Lithium or polymer
Battery Capacity: 15000mAh Max
Working Temperature range: -40℃~85℃
Working Humidity range: 0%-95%RH
Size: 50x20x6.3mm

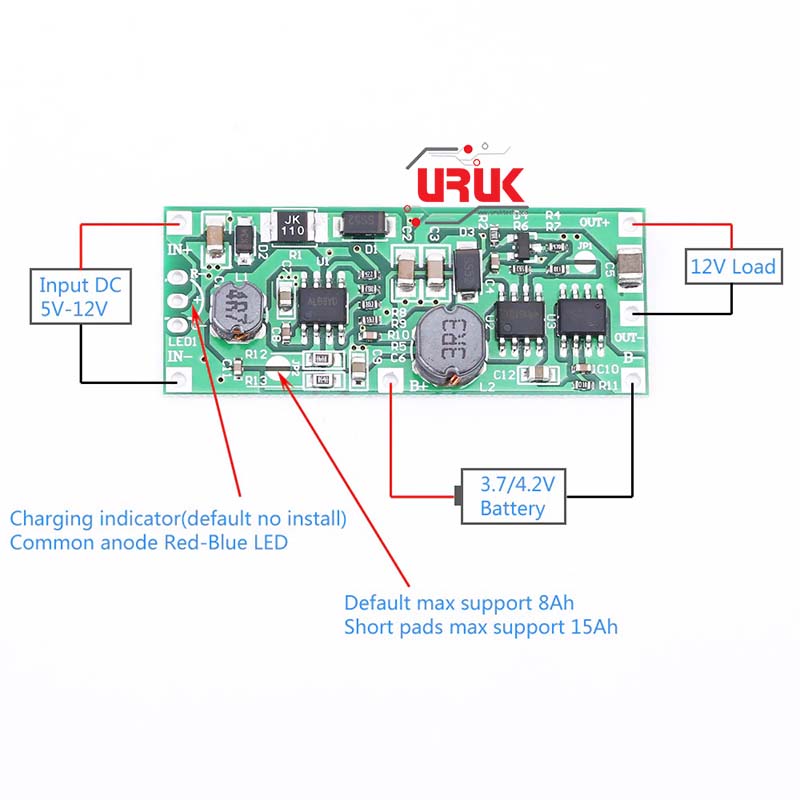

Usage Instructions:
– Connect right input voltage at input terminal.
– Check output voltage by voltmeter and ammeter.
– Connect battery at B+ and B-.



Notes:
– Its max output current is 1A and cannot keep output 1A exactly then it will burn, make it out 0.99A.
– The positive and negative poles of the input power supply cannot be reversed Otherwise the module will be damaged.
– Users can install a common anode Red-Blue LED by yourself as charging indicators.
– Blue light indicates whether there is a load at output, Keep Red is charging, there is no battery if red flashing. Red OFF if charged.
– Due to the large current, it is recommended to use a thicker wire, with wire cross-section greater than 1.5 square millimeters.



Application:
– Ordinary power supply
– Battery charger
– Mobile power
– Power conversion
– Infrared alarm
– Network equipment such as switches
– Router
– Battery car modification



Package Includes:
1 x UPS 5V-12V to 12V 1A Uninterrupted Supply and Charging Module

SKU: 587 Categories: , ,
  • Product Type: UPS and Voltage Converter Module
  • Input Voltage: DC 5.0V-12.0V
  • Output Voltage: DC 12.0V
  • Output Current: 1 A
  • Output Power: 12W
  • Support Battery: 3.7V Lithium or polymer
  • Battery Capacity: 15000mAh Max
  • Working Temperature range: -40℃~85℃
  • Working Humidity range: 0%-95%RH
  • Size: 50x20x6.3mm
