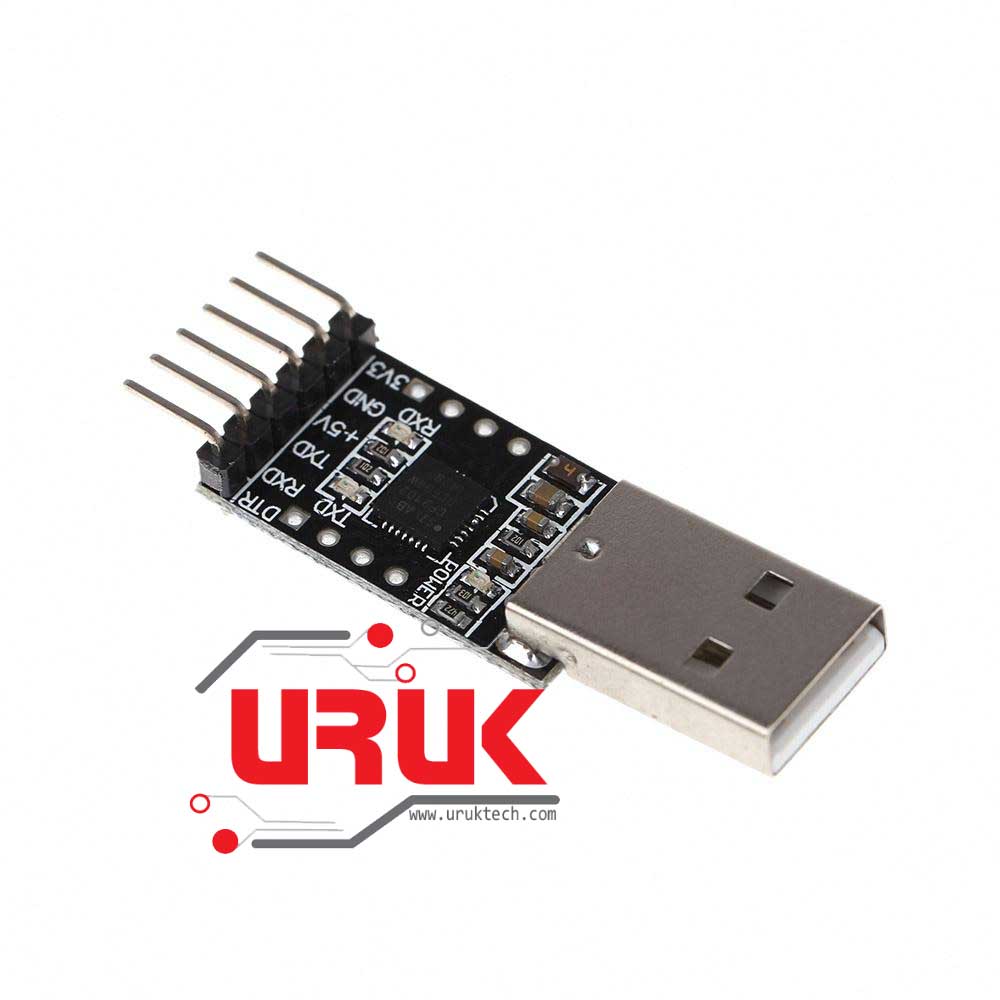

USB 2.0 to TTL UART CP2102 6Pin Module (With DTR pin)

Rated 5.00 out of 5 based on 1 customer rating
(1 customer review)
Availablity:

In stock


Compare

USB 2.0 to TTL UART CP2102 6Pin Module (With DTR pin)

6,500 IQD

In stock

USB 2.0 to TTL UART CP2102 6Pin Module (With DTR pin)

CP2102 its high integration, built-in USB2.0 full-speed function controller, USB transceiver, crystal oscillator, EEPROM, and asynchronous serial data bus (UART), supports full-featured modem signals, without any external USB device. CP2102 with other USB-UART adapter circuit works similar to the PC through the driver’s USB port into a virtual COM port in order to achieve the purpose of expansion.

Features:
–  Included USB transceiver, without external circuit device
– Includes a clock circuit, no external circuitry is
– power-on reset circuit
– Chip 3.3V voltage regulator output voltage can be 3.3V and 5V.
– Meet the USB 2.0 specification requirements
– SUSPEND pin supports USB suspend state
–  Asynchronous serial data bus compatible with all handshake and modulation controller interface signals
– Supported data format is 8 data bits, 1 stop bit and parity bits
– Connotation 512 byte receive buffer and 512 byte transmit buffer
– Supports hardware handshaking or X-ON/X-OFF
– Brand new and high quality.
– PCB Dimensions: 26.5mm * 15.6mm
– PCB Color: Red
– Weight: 4g
– With self-recovery fuse. In the event of accidental short circuit, it can effectively protect your computer USB port and Downloader
– With three LEDs: power indicator, data reception indicator, the data transmission indicator, working status.
– With 3.3V and 5V dual power output
– Pin leads to all sorts of useful
– With reset signal output, etc. directly to the Arduino board and Pro mini for download!
– Supported operating systems:
  Windows 98/Me/2000/XP/7/8/10
  OS-9
  OS
  X-Windows CE
  Linux 2.40 or later

You can Download the USB Driver from Here

Package Includes:
1 x USB 2.0 to TTL UART CP2102 6Pin Module

SKU: 202-CP2102DTR Categories: ,
Voltage

,

Based on 1 review

5.0 overall
1
0
0
0
0

Only logged in customers who have purchased this product may leave a review.

  1. Rated 5 out of 5

    (verified owner)

    I have purchased this product and use it personally, programming microcontrollers it will be so easy with this module
