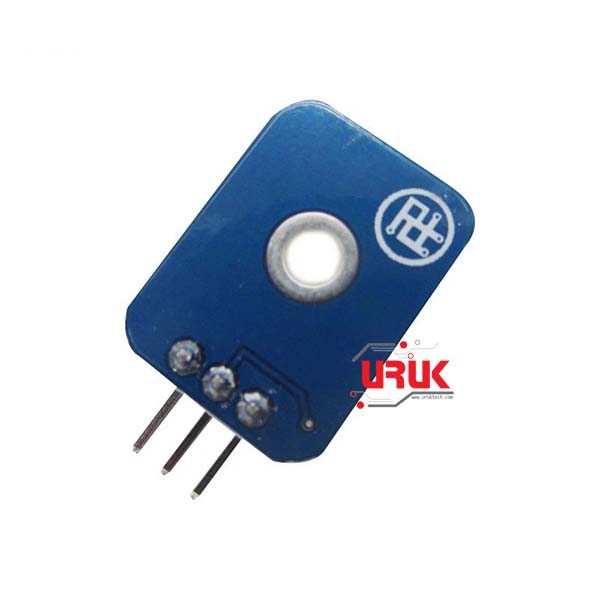

UV Detection Sensor Module (Ultraviolet Ray Sensor)

This sensor designed for applications requiring high reliability and accuracy in measuring UV Index (UVI) also it is suitable for measuring the total amount of ultraviolet light in sunlight.

Specifications:
Response time: less than 0.5 seconds
Current Consumption: 0.06mA(typical), 0.1mA(maximum).
Operating voltage: 3.3V-5V
Output voltage: DC 0-1V (corresponding to UV index of 0 to 10)
Measuring accuracy: ±1 UV INDEX
Wavelength: 200-375nm
Operating temperature: -20 to 85 °C
Size: 19.8x15mm

Connection:
VCC: Power supply positive voltage of 3.3V-5V
OUT: Output Signal
GND: Power supply negative

Package Includes:
1 x UV Detection Sensor Module
