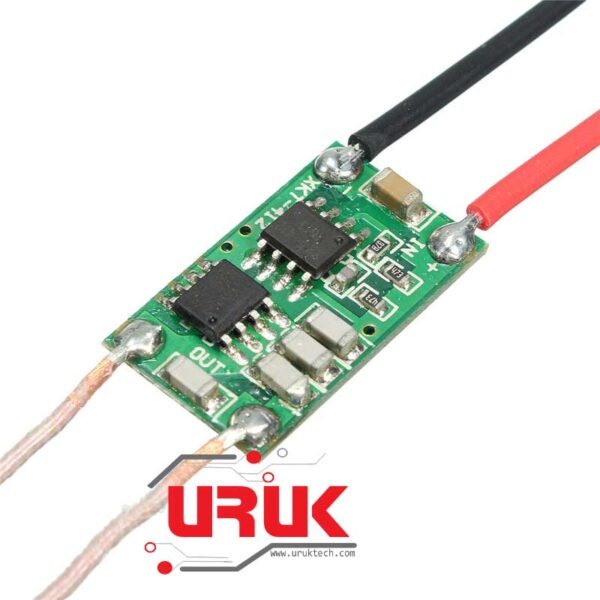

Wireless Charger Module Coil Transmitter Receiver 12V

Availablity:

In stock


Compare

Wireless Charger Module Coil Transmitter Receiver 12V

20,000 IQD

In stock

Wireless Charger Module Coil Transmitter Receiver 12V Electric Unit Boards 5V Power Supply Modules

Module core is made by Elcoteq latest successful development of high-current power wireless chip design, the most simple case of the output current, USB 5V low-voltage power supply can also be received in 5V1A output current, if part of the circuit, the reception plus rectifier and regulator loss, and the transmission efficiency up to 90 percent.

Features:
Name: Wireless Charging Charger Module
Model: XKT-412
Size: 18×4.3 (cm)
Input Voltage: 12V
Output Voltage: 5V
Operating Current: Normal Operating Voltage: 1.2A
Maximum Operating Voltage: 2A
Transmit Coil: diameter 43mm, inner diameter 20mm, thickness 2.3mm
Receiving Coil: outer diameter of 43mm, inner diameter 20mm, thickness 2.3mm
Receive Coil: 3mm, the receiver output 5V / 1A current
Normal Use Distance: 2 ~ 10mm
Efficiency: up to 90%

Package Included
1 x Pair of Wireless Charging Charger Module

SKU: 194-WLESSCHRG Categories: , ,
Voltage

,

  • Name: Wireless Charging Charger Module
  • Model: XKT-412
  • Size: 18×4.3 (cm)
  • Input Voltage: 12V
  • Output Voltage: 5V
  • Operating Current: Normal Operating Voltage: 1.2A
  • Maximum Operating Voltage: 2A
  • Transmit Coil: diameter 43mm, inner diameter 20mm, thickness 2.3mm
  • Receiving Coil: outer diameter of 43mm, inner diameter 20mm, thickness 2.3mm
  • Receive Coil: 3mm, the receiver output 5V / 1A current
  • Normal Use Distance: 2 ~ 10mm
  • Efficiency: up to 90%
