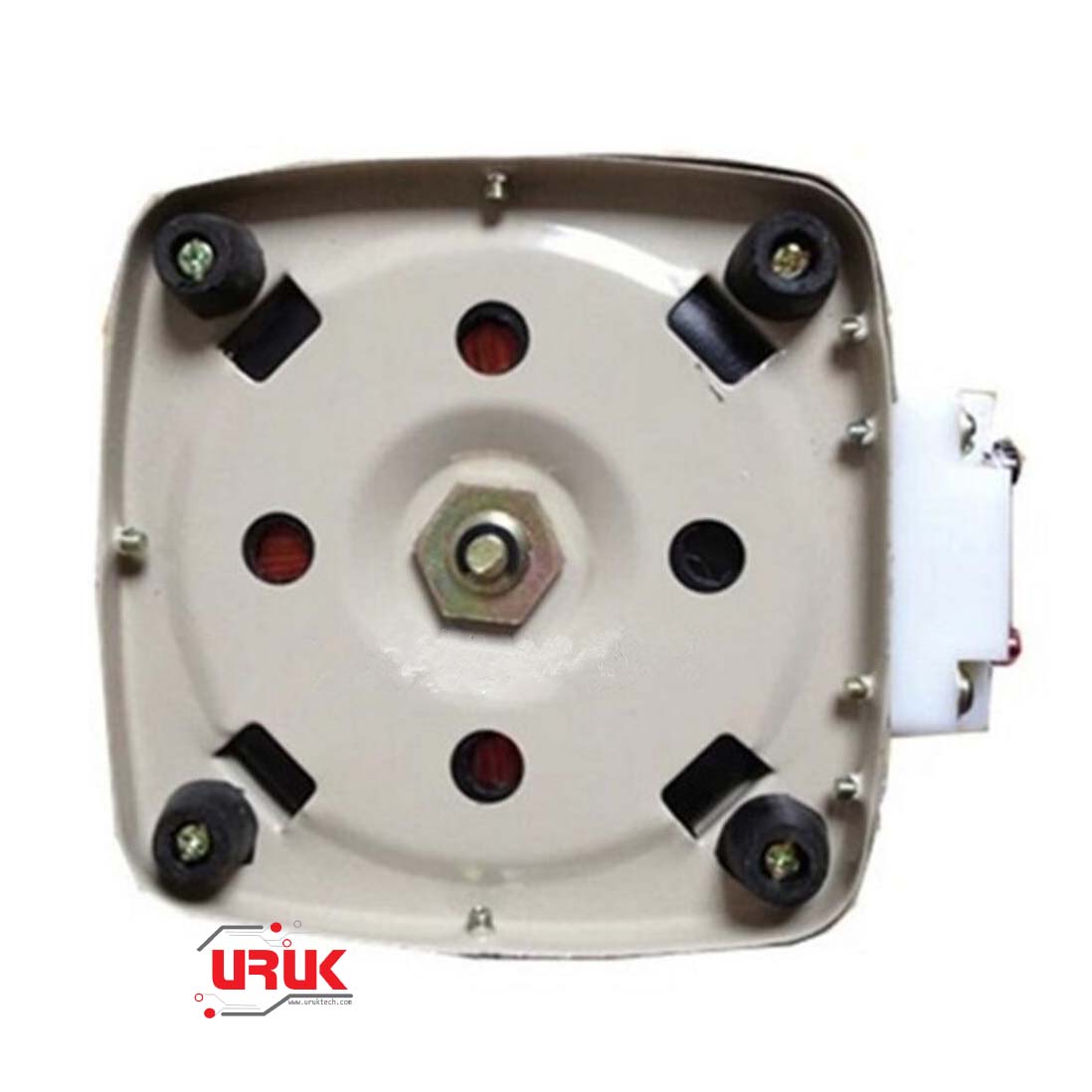

0.5KVA AC Variable Transformer (Variac) 2A 500W 250V
TDGC2 contact voltage regulator with waveform distortion, small size, light weight, high efficiency and easy to use, reliable, long-term operation and other characteristics, can be widely used in industry (e.g., chemical, metallurgy, instrumentation, electrical and mechanical manufacturing, light workers, etc.), scientific experiments, household appliances, control speed, dimming and power control purposes, the three an ideal AC voltage power supply.
Input voltage: 110/220V
Output voltage: 0-250V
Accuracy of voltage stabilization: 220V±3%, 110V±6%
Adjustable time: <1s (when input voltage has a change of 10%)
Working temperature: -5°C~40°C
Load power factor: 0.8
Dielectric strength: 1500V/min
Insulation resistance: ≥2MΩ
Display: analog meter (digital meter optional)
Dimension: 140×130×130 mm
Principle & Characteristics
The voltage regulator is in the structure of adjustable compensator, it winds a coil on the loop core, thee brush coincide with the rubbed surface of the coil closely under the spring pressure effect, rotate the revolving shaft to drive the brush stand, and make the brush move along the coil surf ace to change the contact position of the brush, that means change the turns rate of primary and secondary coil, which can make the output voltage stepless adjusted within the adjustment range. It has the advantage of no waveform distortion, small volume, less weight, high efficiency, simple and reliable operation, un for long period and so on.
Scope of Application
It is widely used in industry (as chemical industry, metallurgy, instruments, meters, electromechanical manufacturing, light industry etc.), scientific experiment, public facilities, and domestic electric appliance to fulfill voltage regulating, temperature control, speed regulating, light adjusting, power control and so on, it is an ideal AC regulated power sour
1 x 0.5KVA AC Variable Transformer
