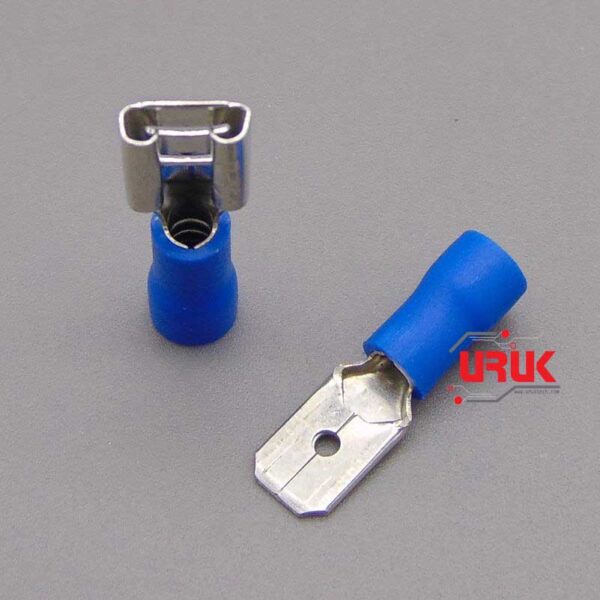

Pair of Female and Male Blue Insulated Crimp Connectors

Availability:

In stock


زوج من الكونكترات زرقاء اللون المعزولة ومصنوعة من النحاس ومطلية بمادة مضادة للتأكسد، تربط مع الاسلاك بحجم 1.5 الى 2.5 ملم عن طريق الكبس بشكل مباشر.

500 د.ع

In stock

Compare

Pair of Female and Male Blue Insulated Crimp Connectors

Features:
– High quality copper material made for the connector
– Easy and Convenient to Use
– Only one step connection of wires, insulated and sealed.
– Tinplating treatment for the surface of the connector, anti-oxidation and corrosion resistance
– Solder silver processing at the seam crossing between the end of the terminal and the end of the joint, with rib line inside the hole to increase compressive resistance
– Apply Vinyl, PVC and nylon material for the insulation sleeve, working ultimate temperature is 75 degree and 105 degree respectively
– Insulation sheath enclosing copper ring is double pressure type end and connectors, which can maintain reliable performance under vibration severe environment

Specifications:
– Max current: 15A
– Connector material: Copper
– Color: Blue
– Width: 6.8mm
– Thickness: 0.8mm
– Terminal kind: female/male
– Wire cross section: 1.5 -2.5mm2 16-14 AWG
– Mounting: crimp on cable

Package Includes:
1 x Pair of Female and Male Blue Insulated Crimp Connectors

SKU: 933 Categories: , Tag:
Color

Blue

  • Max current: 15A
  • Connector material: Copper
  • Color: Blue
  • Width: 6.8mm
  • Thickness: 0.8mm
  • Terminal kind: female/male
  • Wire cross section: 1.5 -2.5mm2 16-14 AWG
  • Mounting: crimp on cable
