BNC Male to 4mm Twin Dual Banana Plugs

Availability:

In stock

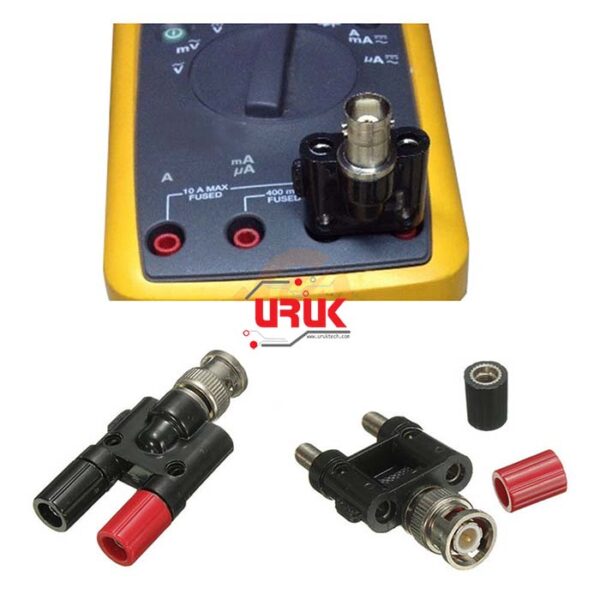

تحويلة من BNC الى سوكت بنانه الخاصة بأسلاك الفحص، مصنوعة بجودة عالية وتستخدم في الأجهزة التي تحتوي على منافذ ادخال او اخراج من نوع BNC مثل الاوسلوسكوبات OScilloscopes او مولدات الإشارة Function Generator لتسهيل عملية ربط الاسلاك الخاصة بالفحص او اسلاك المختبرات والتجارب. تحتوي على غلافة يمكن نزعه وربطها مباشرة في أجهزة القياس مثل الملتيميتر والحصول على سلك واحد للقياس يشبه الاسلاك المستخدمة في الاوسلوسكوبات وهي متوفرة ايضاً في موقع وتطبيق اوروكتيك.

5,000 د.ع

In stock

BNC Male to 4mm Twin Dual Banana Plugs

A coaxial RF connector (radio frequency connector) is an electrical connector designed to work at radio frequencies in the multi-megahertz range. RF connectors are typically used with coaxial cables and are designed to maintain the shielding that the coaxial design offers. Better models also minimize the change in transmission line impedance at the connection. Mechanically, they provide a fastening mechanism (thread, bayonet, braces, blind mate) and springs for a low ohmic electric contact while sparing the gold surface, thus allowing very high mating cycles, and reducing the insertion force. Research activity in radiofrequency (RF) circuit design has surged in the 2000s in direct response to the enormous market demand for inexpensive, high-data-rate wireless transceivers.



Features:

  • Used for adapting single BNC Plug to Dual Banana Jack and Provides isolation for a four-terminal network
  • Binding posts facilitate connections of test leads or additional components
  • Connections can be made to the binding posts by spade lugs, banana plugs or wire leads
  • High temperature, low temperature, acid, alkali, oil, anti-burning, anti-mildew and super softness, electrical insulation, meet RoHS Required
  • Household appliances, lighting, electronic equipment, temperature sensors, aerospace, aviation, military products, metallurgy, medical equipment, automobile and shipbuilding, electrical installation and other connect



Specifications:
Connector 1: Standard Polarity 50 ohms BNC Plug with Male Center Pin in
Connector 2: Standard Polarity 50 ohms Banana Jack with Female Basket in
Adapter Body Style: Tee
Impedance: 50 ohms
Current: 3A
Inner Core: Gold-plated Brass
Shell: Nickel-plated Brass



Package Includes:
1 x BNC Male to 4mm Twin Dual Banana Plugs

SKU: 566 Categories: ,
  • Connector 1: Standard Polarity 50 ohms BNC Plug with Male Center Pin in
  • Connector 2: Standard Polarity 50 ohms Banana Jack with Female Basket in
  • Adapter Body Style: Tee
  • Impedance: 50 ohms
  • Current: 3A
  • Inner Core: Gold-plated Brass
  • Shell: Nickel-plated Brass
