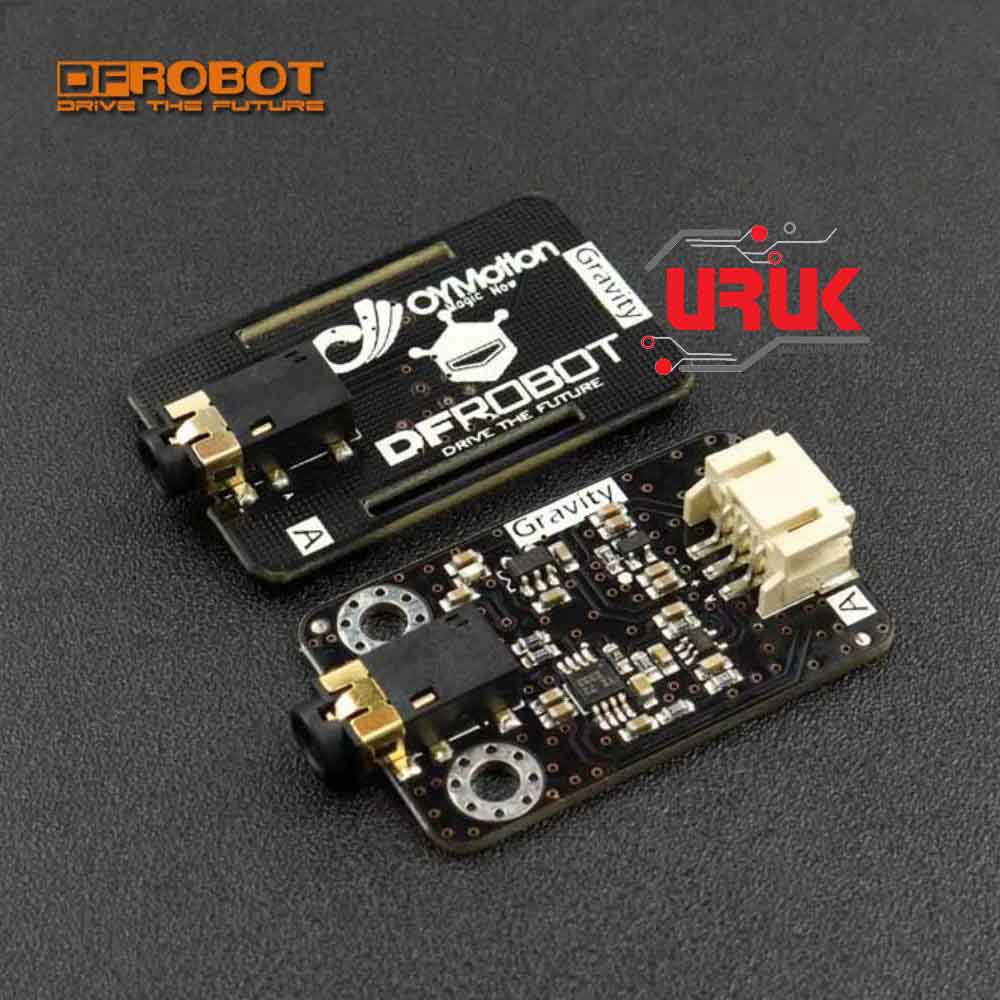

DFRobot Gravity Analog EMG Sensor

developed in collaboration with OYMotion, is a state-of-the-art wearable sensor designed for capturing and interpreting myoelectric signals, allowing users to engage in seamless human-computer interaction. This sensor harnesses electromyography (EMG) technology, providing a reliable and responsive interface for a variety of applications.

Specifications:

-Signal Transmitter Board
   Operating Voltage: +3.0V
   Detection Range: +/-1.5mV

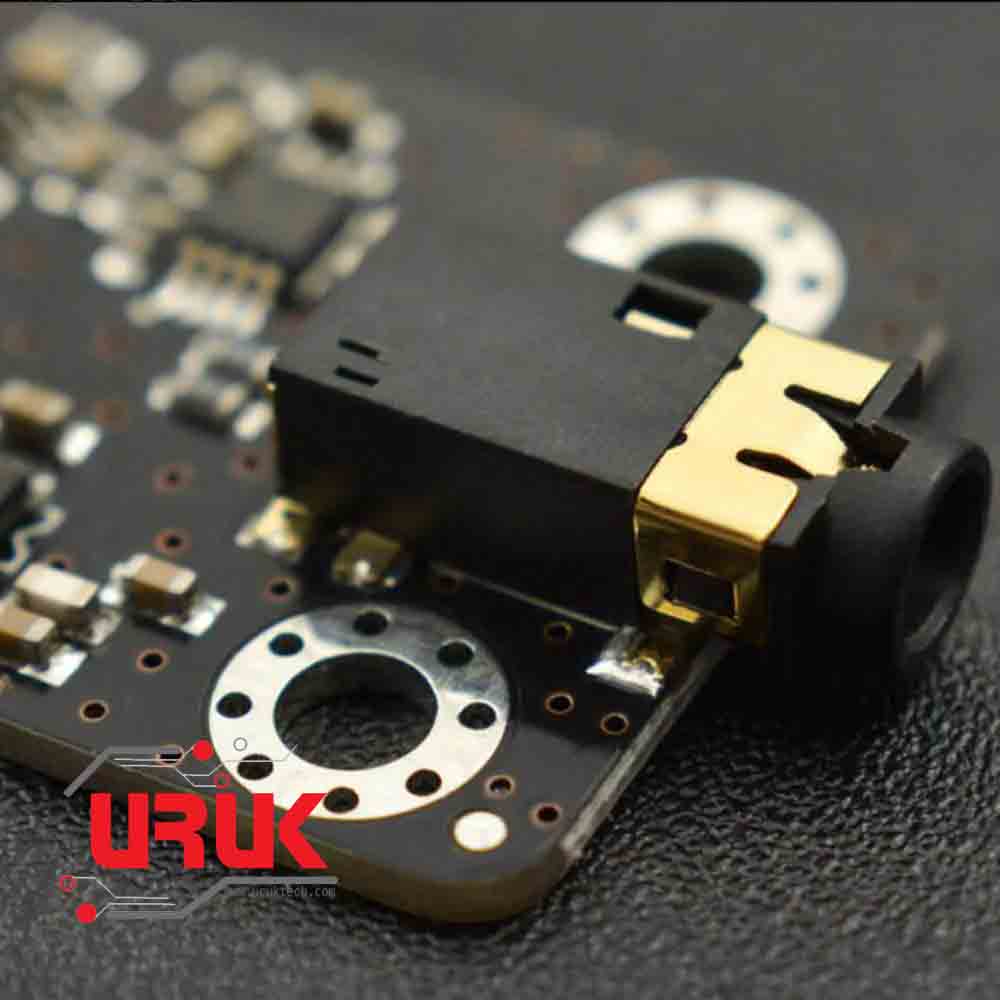

   Electrode Connector: PJ-342
   Module Connector: PH2.0-3P
   Output Voltage: 0～3.0V
   Operating Temperature: 0～50℃
   Dimensions: 22mm x 35mm

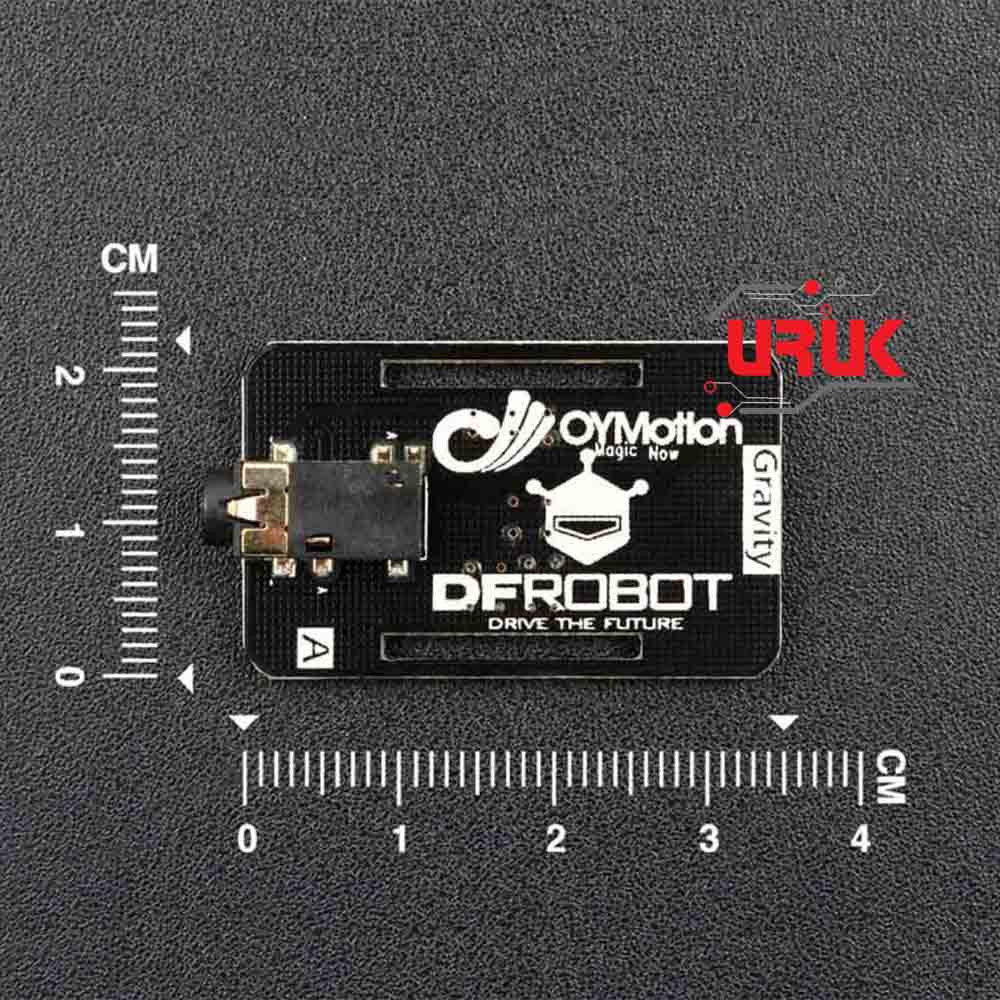

-Dry Electrode Board
  Electrode Connector: PJ-342
  Wire Length: 50cm
  Plate Size: 22 x 35 mm
  weight: 36g

Notes:
1. The supply voltage range is 3.3~5.5V; The supply current should not be less than 20mA; The ripple current and disturbance current should be as low as possible. Stabilized DC voltage is recommended.
2. The effective spectrum range is 20Hz～500Hz, and the ADC converter which has higher than 8-bit resolution and 1 kHz frequency are recommended to take samples and digitized to keep original information.

Documentation

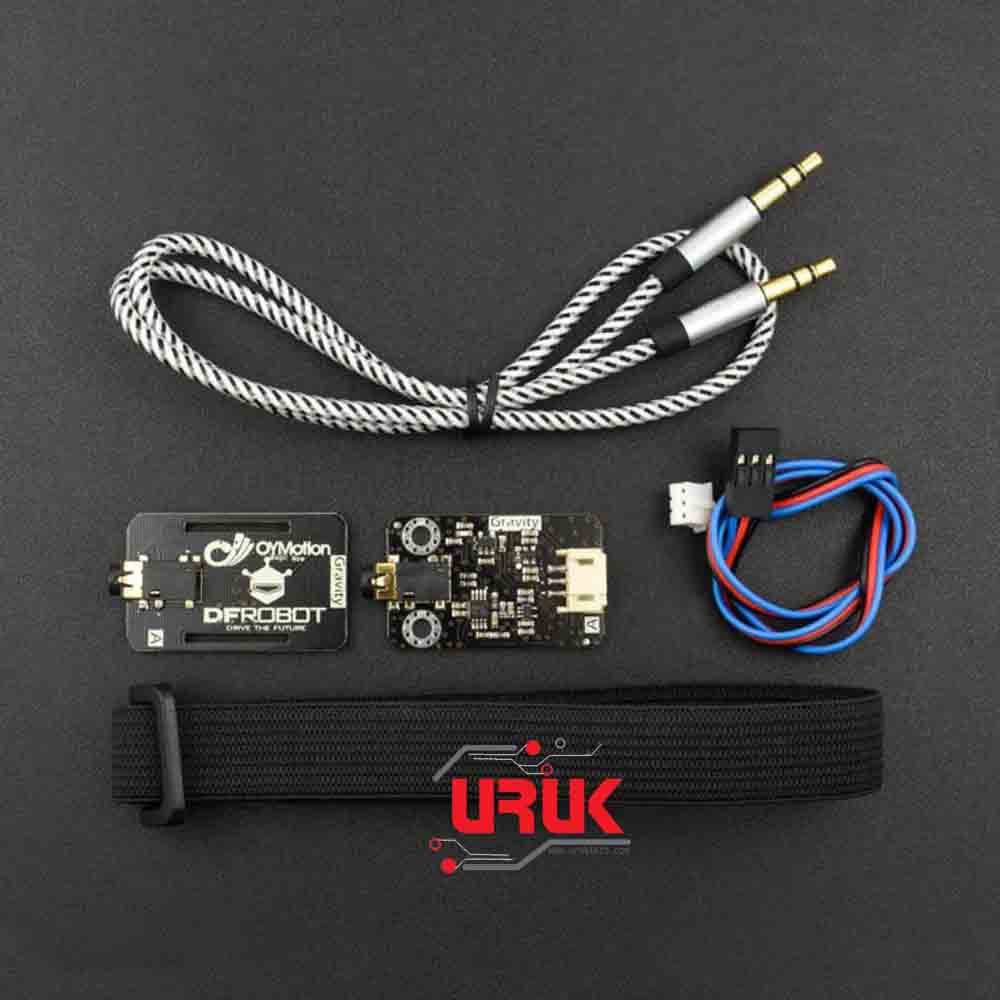

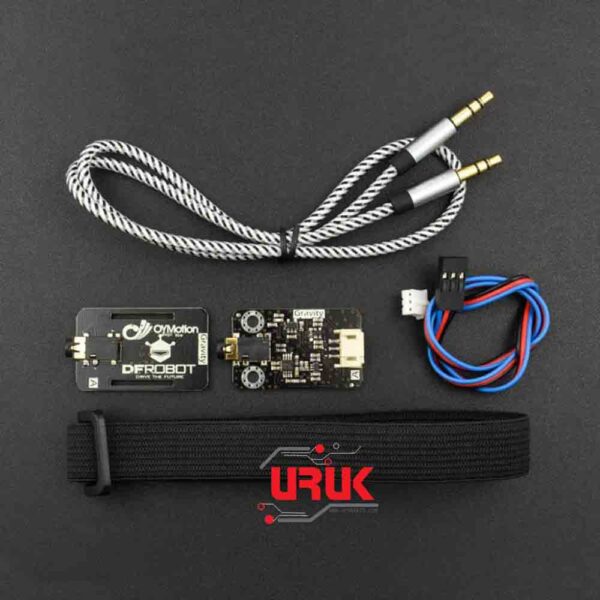

Package Includes:
1x EMG Dry Electrode Board
1x Wrist Belt

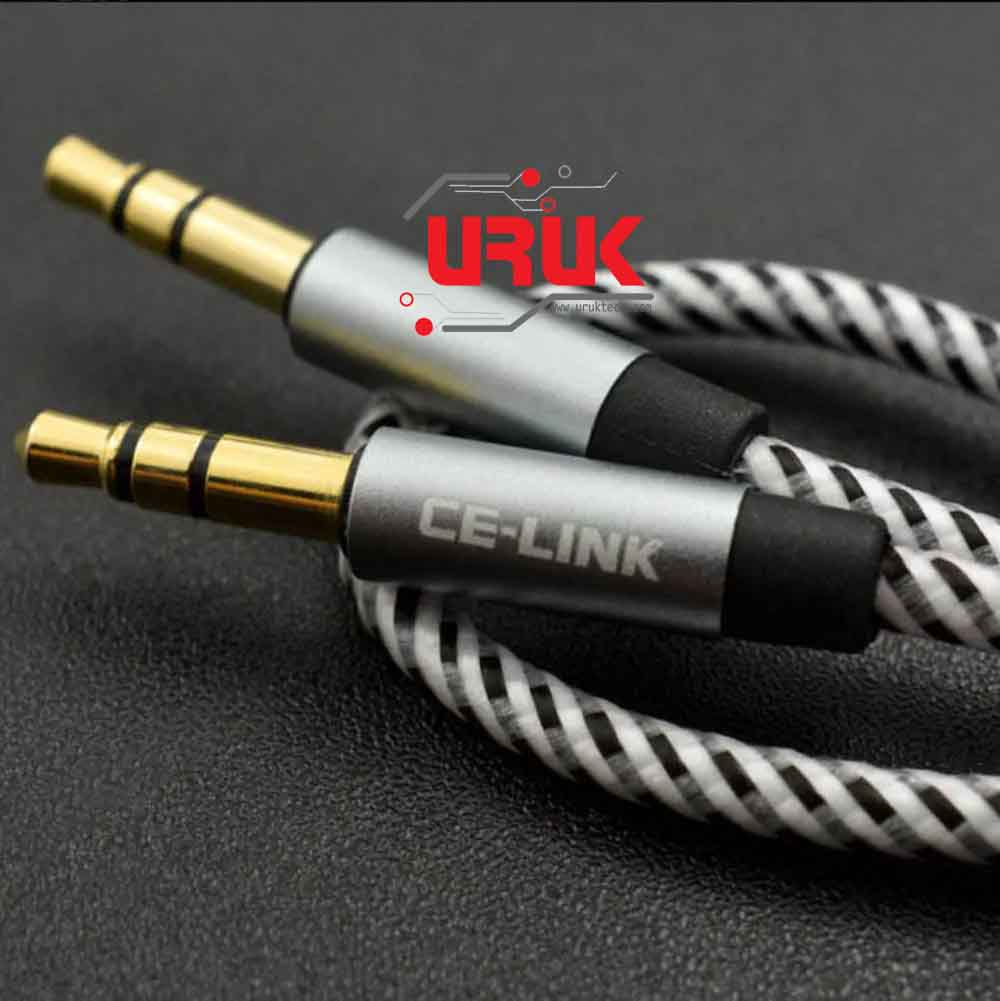

1x Electrode Cable
1x EMG Signal Transmitter Board
1x Gravity Analog Cable 3Pin
